Teaching in a program
11.6 Selecting a block
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
457

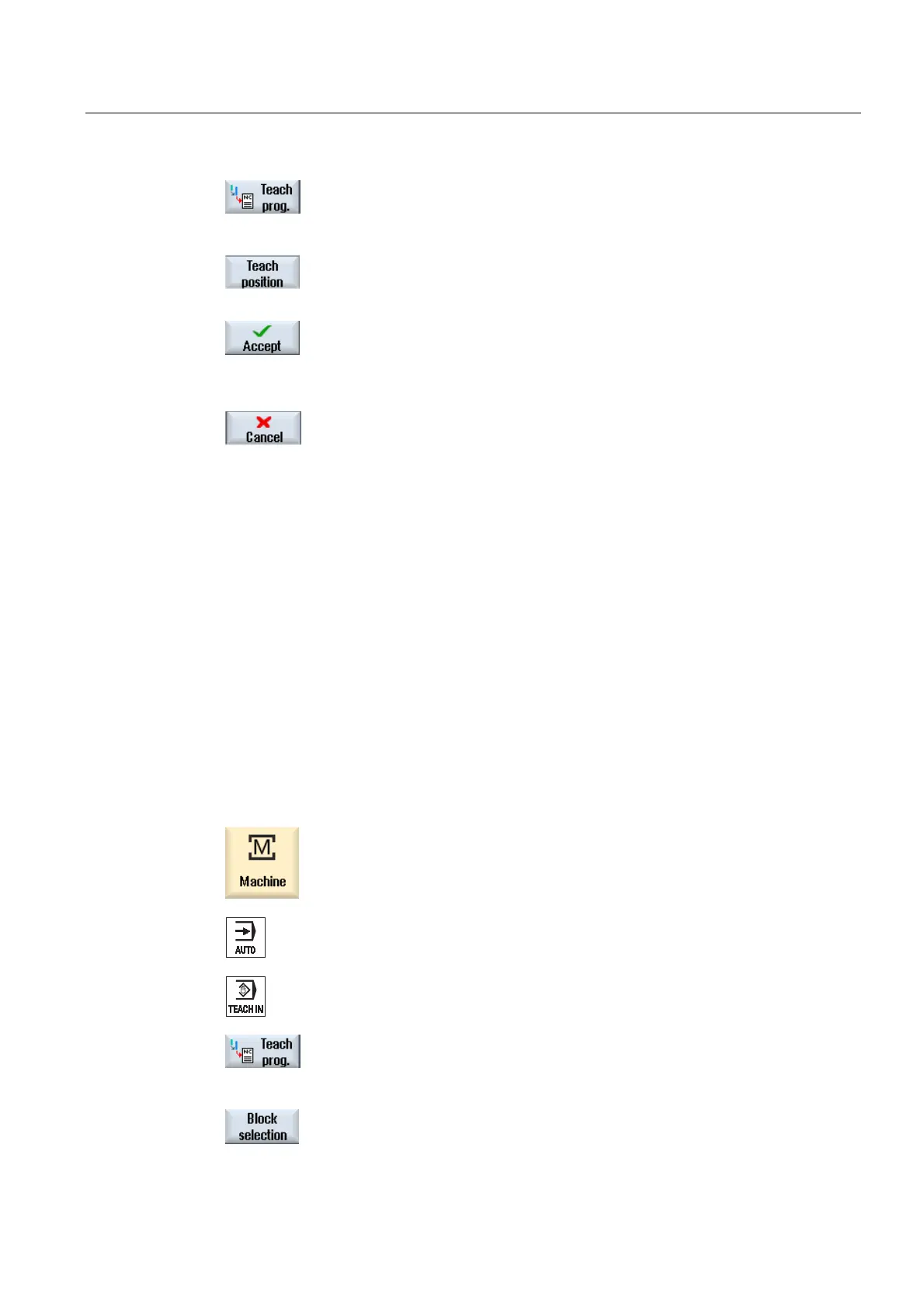

4. Press the "Teach prog." softkey.
5. Click the program block to be edited.
6. Press the relevant softkey "Teach position, "Rap. tra. G0", "Straight
line G1", or "Circ. interm. pos. CIP", and "Circ. end pos. CIP".
The relevant windows with the input fields are displayed.
7. Traverse the axes to the desired position and press the "Accept"
softkey.
The program block is taught with the modified values.
- OR -
Press the "Cancel" softkey to cancel the changes.
11.6 Selecting a block
You have the option of setting the interrupt pointer to the current cursor position. The next
time the program is started, processing will resume from this point.
With teach-in, you can also change program areas that have already been executed. This
automatically disables program processing.
You must press reset or select a block to resume the program.
Requirement
The program to be processed is selected.
Proceed as follows
1. Select the "Machine" operating area.
3. Press the <TEACH IN> key.
4. Press the "Teach prog." softkey.
5. Place the cursor on the desired program block.
6. Press the "Block selection" softkey.
