Simulating machining
5.8 Changing and adapting a simulation graphic
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
191
5.8.4 Modifying the viewport
If you would like to move, enlarge or decrease the size of the segment of the graphical
display, e.g. to view details or display the complete workpiece, use the magnifying glass.
Using the magnifying glass, you can define your own segment and then increase or
decrease its size.
Precondition
The simulation or the simultaneous recording is started.

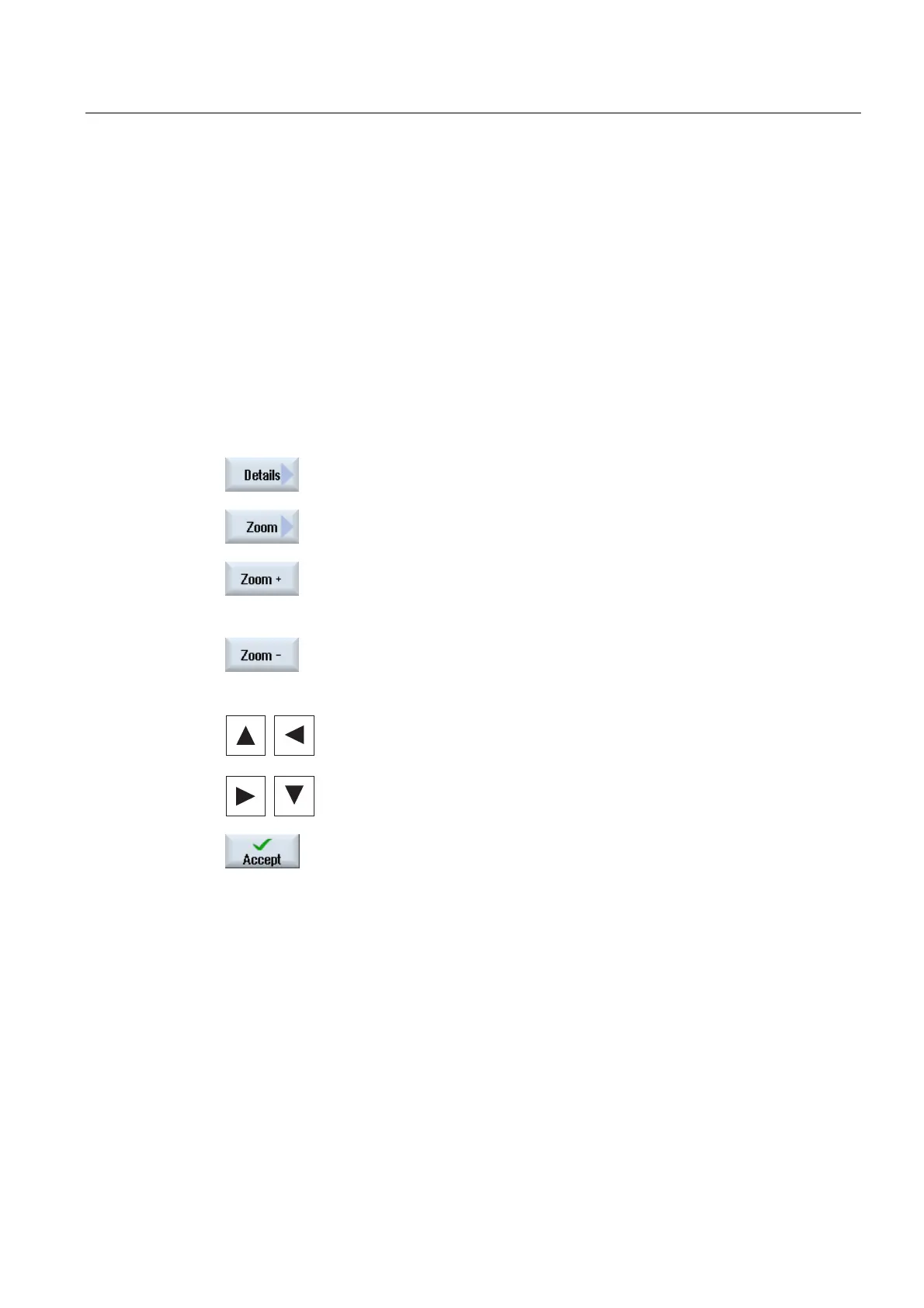

Procedure
1. Press the "Details" softkey.
2. Press the "Magnifying glass" softkey.
A magnifying glass in the shape of a rectangular frame appears.
3. Press the "Magnify +" or <+> softkey to enlarge the frame.
- OR -
Press the "Magnify -" or <-> softkey to reduce the frame.
- OR -
Press one of the cursor keys to move the frame up, down, left or right.
4. Press the "Accept" softkey to accept the section.
