Introduction
1.4 User interface
Milling
40 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

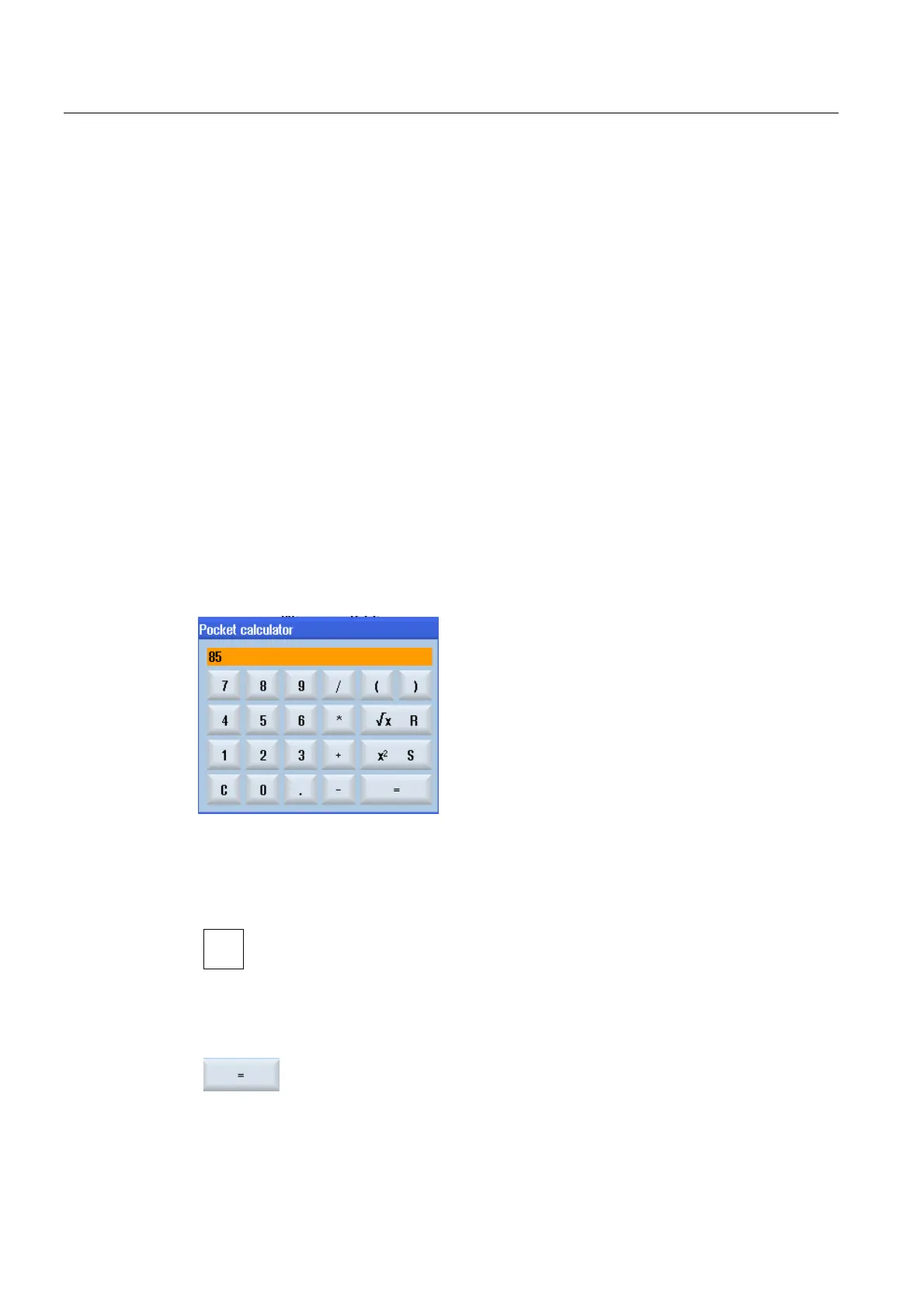

1.4.8 Pocket calculator
You can use the pocket calculator to quickly calculate parameter values during
programming. If, for example, the diameter of a workpiece is only dimensioned indirectly in
the workpiece drawing, i.e., the diameter must be derived from the sum of several other
dimension specifications, you can calculate the diameter directly in the input field of this
parameter.
Calculation methods
The following arithmetic operations are available:
Addition
Subtraction
Multiplication
Division
Calculation with parentheses
Square root of x
x squared
You can input a maximum of 256 characters in a field.
Procedure
1. Position the cursor on the desired input field.
2. Press the <=>.
The pocket calculator is displayed.
3. Input the arithmetic statement.
You can use arithmetic symbols, numbers, and commas.
4. Press the equals symbol on the calculator.
- OR -
