Setting up the machine

2.11 MDA

Milling

116 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

2.11.4 Deleting an MDA program

Precondition

The MDA editor contains a program that you created in the MDI window or loaded from the

program manager.

Procedure

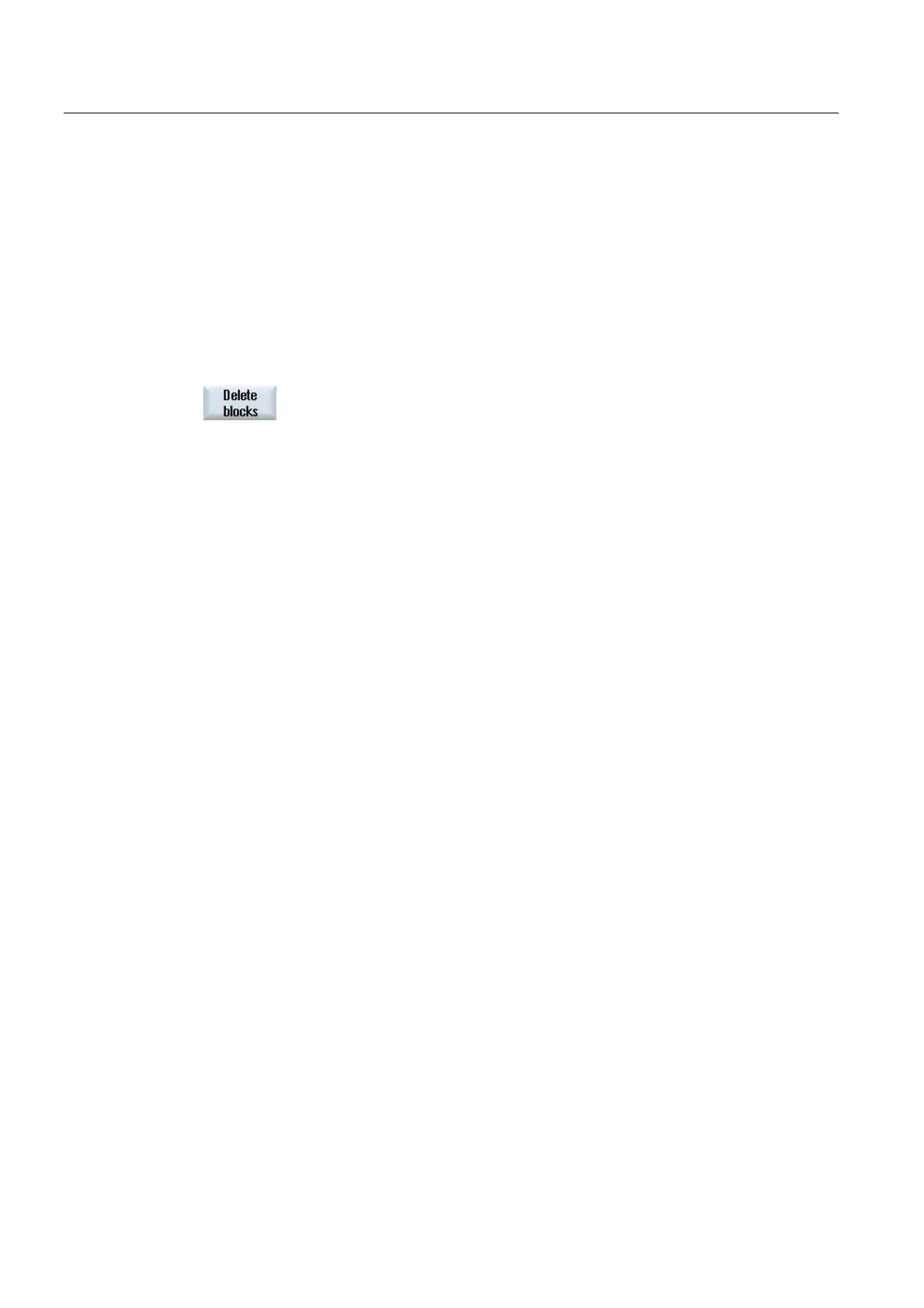

Press the "Delete blocks" softkey.

The program displayed in the program window is deleted.
