Setting up the machine
2.7 Work offsets
Milling
106 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
...

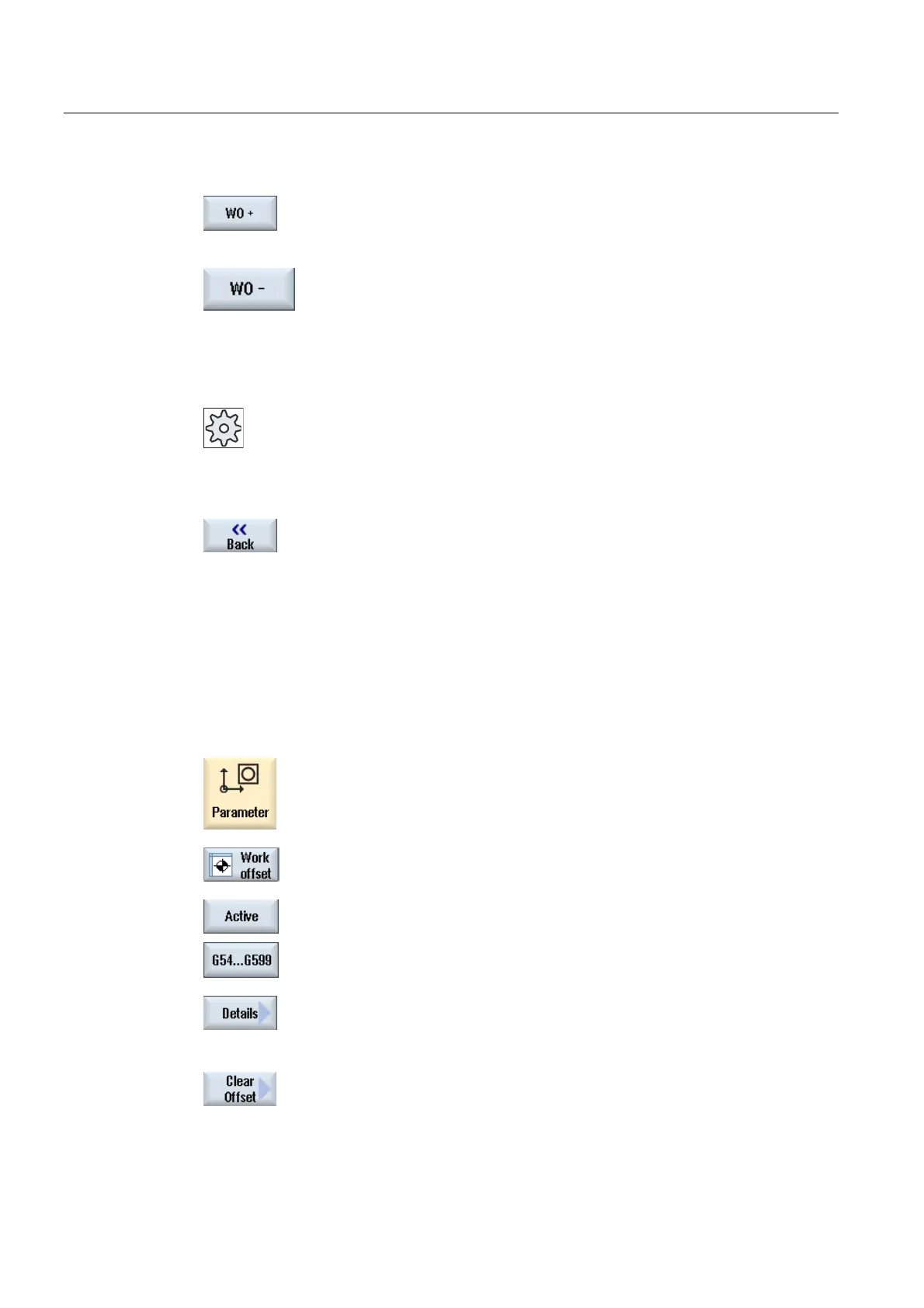

Press the "WO +" or "WO -" softkey to select the next or previous
offset, respectively, within the selected area ("Active", "Base", "G54 to
G599") without first having to switch to the overview window.
If you have reached the end of the range (e.g. G599), you will switch
automatically to the beginning of the range (e.g. G54).
These value changes are available in the part program immediately or after "Reset".
Machine manufacturer
Please refer to the machine manufacturer's specifications.
Press the "Back" softkey to close the window.
2.7.6 Deleting a work offset
You have the option of deleting zero offsets. This resets the entered values.
Proceed as follows
1. Select the "Parameter" operating area.
2. Press the "Work offset" softkey.
3. Press the "Active", "Base" or "G54…G599" softkey.
4. Press the "Details" softkey.
5. Position the cursor on the zero offset you would like to delete.
6. Press the "Clear Offset" soft key.
