Creating a ShopMill program
7.17 Example, standard machini
ng
Milling
Operating Manual, 03/2010, 6FC5398-7CP
20-1BA0
259
7.17.3

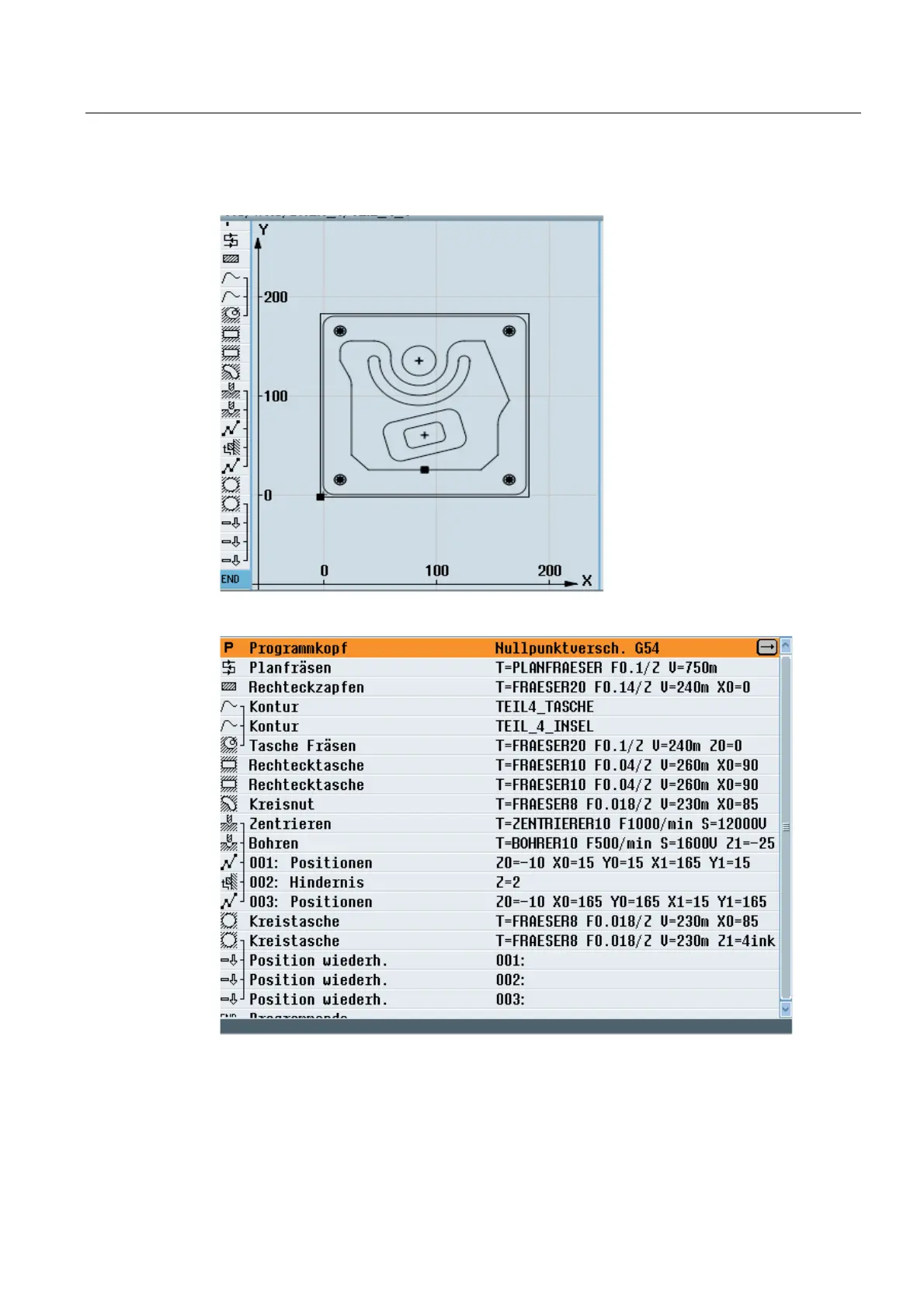

Results/simulation test
Figure 7-5
Programming grap
hics
Figure 7-6
Machining schedu
le
258
260
