Siemens SINUMERIK 840D Operating Manual

Simulating machining
5.2 Simulation before machining of the workpiece
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
179

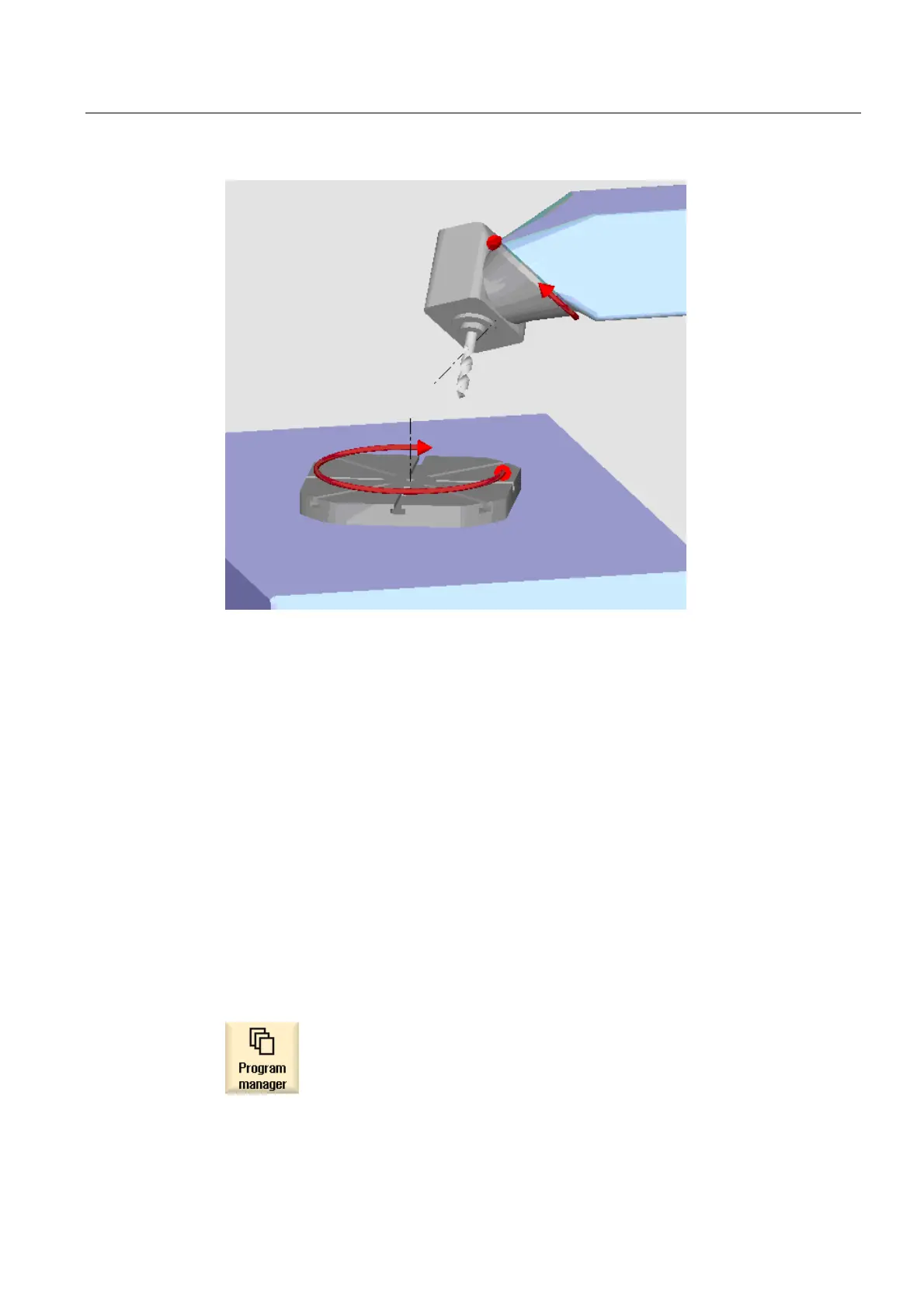

Swivel combination 45°/90°
5.2 Simulation before machining of the workpiece
Before machining the workpiece on the machine, you have the option of performing a quick
run-through in order to graphically display how the program will be executed. This provides a
simple way of checking the result of the programming.
Feedrate override
Feedrate override is also active during simulation.
You can change the feedrate during the simulation via the user interface.
0 %: The simulation stops.
100 %: The program is executed as quickly as possible.
Procedure
1. Select the "Program Manager" operating area.
2. Select the storage location and position the cursor on the program to
be simulated.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
