Creating G code program
6.2 Program views
Milling
196 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
6.2 Program views
You can display a G code program in various ways.
● Program view
● Parameter screen, either with help screen or graphic view
Program view
The program view in the editor provides an overview of the individual machining steps of a
program.

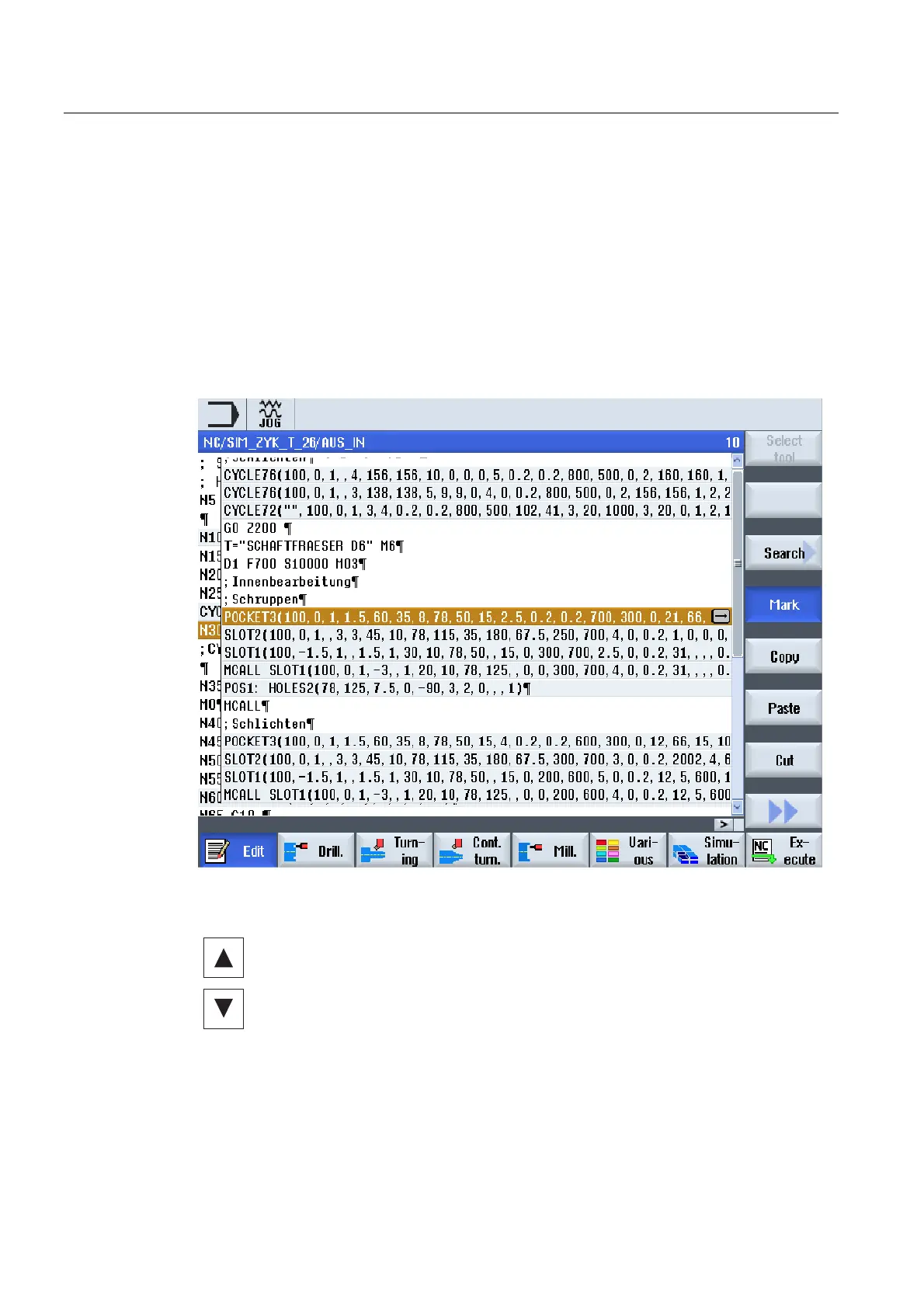

Figure 6-1 Program view of a G code program
In the program view, you can move between the program blocks using
the <Cursor up> and <Cursor down> keys.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
