Creating G code program

6.2 Program views

Milling

Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

197

Parameter screen with help display

Press the <Cursor right> or the <Input> key to open a selected

program block or cycle in the program view.

The associated parameter screen with help screen is then displayed.

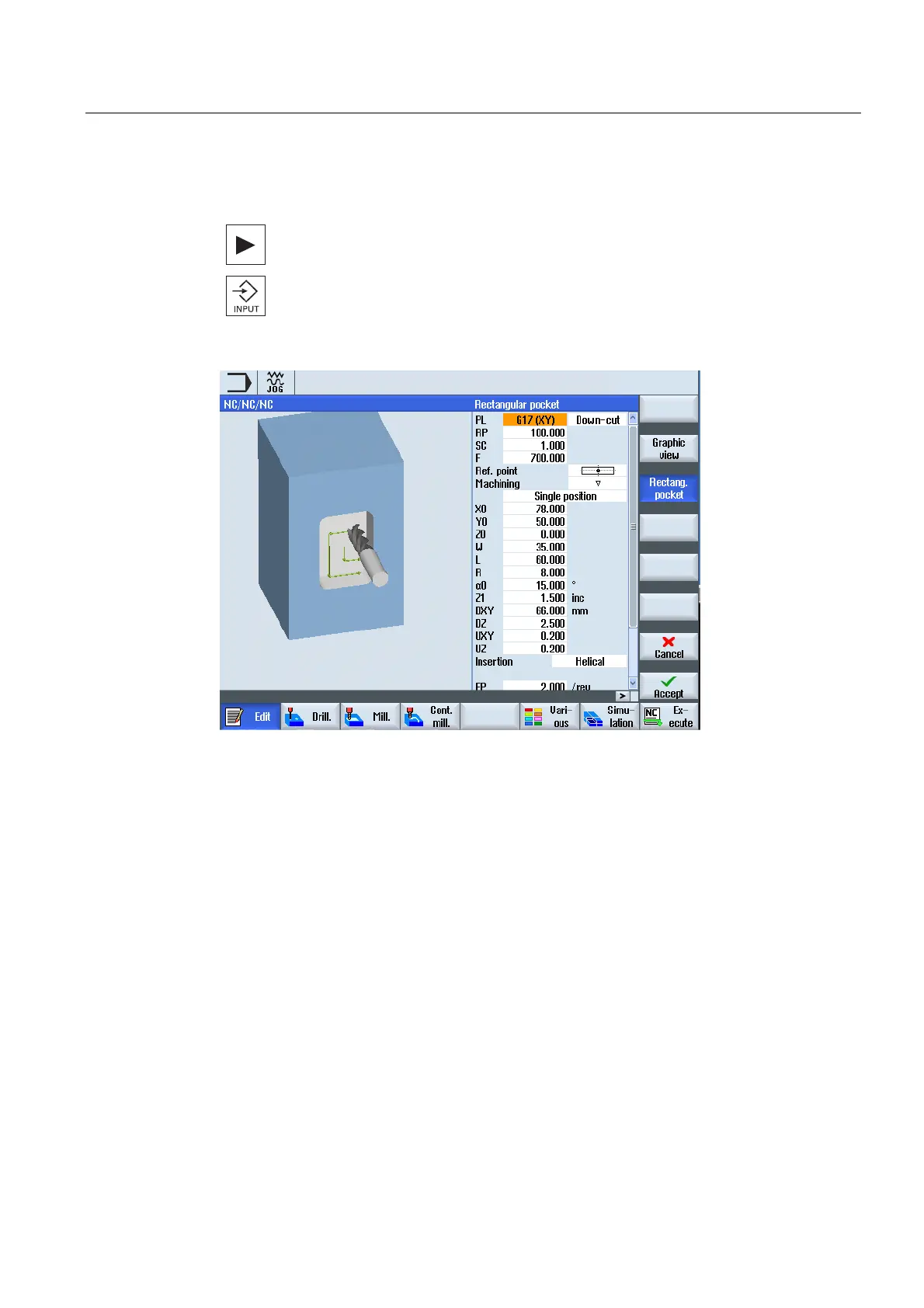

Figure 6-2 Parameter screen with help display

The animated help displays are always displayed with the correct orientation to the selected

coordinate system. The parameters are dynamically displayed in the graphic. The selected

parameter is displayed highlighted in the graphic.

The color symbols

Red arrow = tool traverses in rapid traverse

Green arrow = tool moves with the machining feedrate
