Creating G code program

6.2 Program views

Milling

198 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

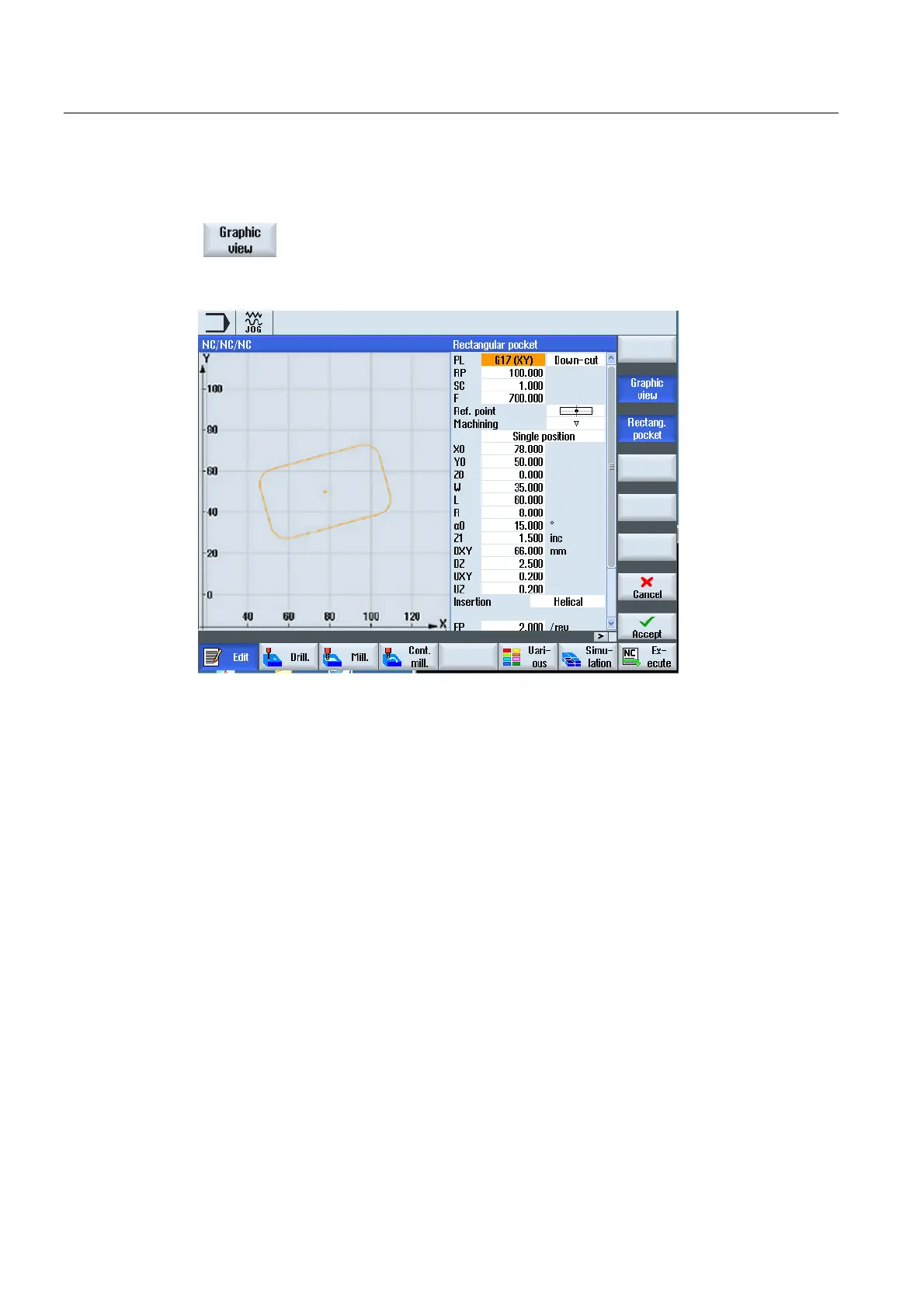

Parameter screen with graphic view

Using the "Graphic view" softkey, you can toggle between the help

screen and the graphic view in the screen.

Figure 6-3 Parameter screen with a graphical view of a G code program block
