Siemens SINUMERIK 840D Operating Manual

Ladder Viewer and Ladder add-on (828D only)
19.3 Control options
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
561
Screen element Display Meaning
6 Focus
Performs the tasks of the cursor
7 Information line
Displays information, e.g. for searching
19.3 Control options

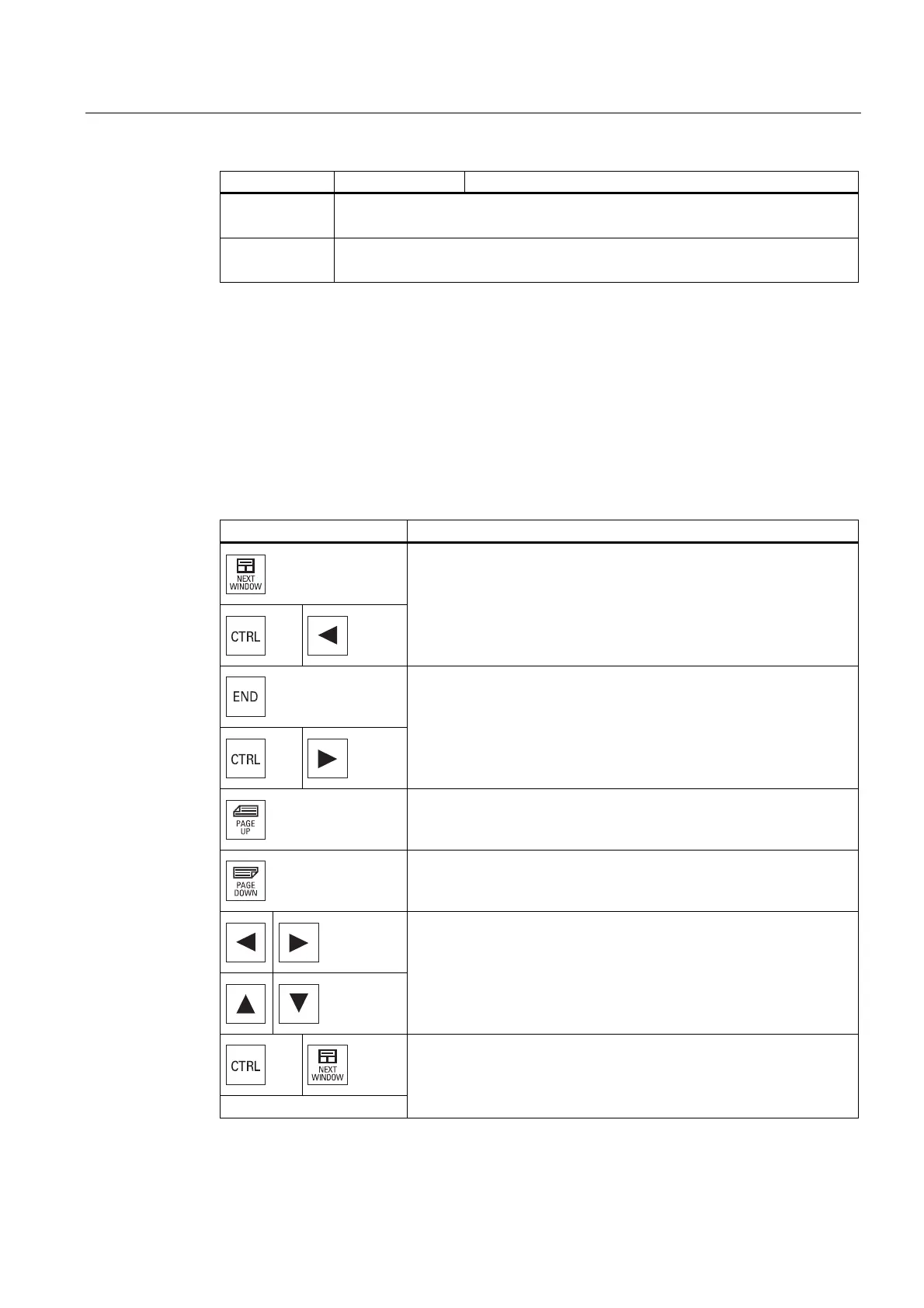

In addition to the softkeys and the navigation keys, there are further shortcuts in this area.
Shortcuts
The cursor keys move the focus over the PLC user program. When the window borders are
reached, scrolling is performed automatically.
Shortcuts Action
To the first column of the row
To the last column of the row
Up a screen
Down a screen
One field to the left, right, up or down
-or-
To the first field of the first network

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
