Machining the workpiece

4.7 Starting machining at a specific point

Milling

150 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

References

For additional information, please refer to the following documentation:

Commissioning Manual SINUMERIK Operate (IM9) / SINUMERIK 840D sl

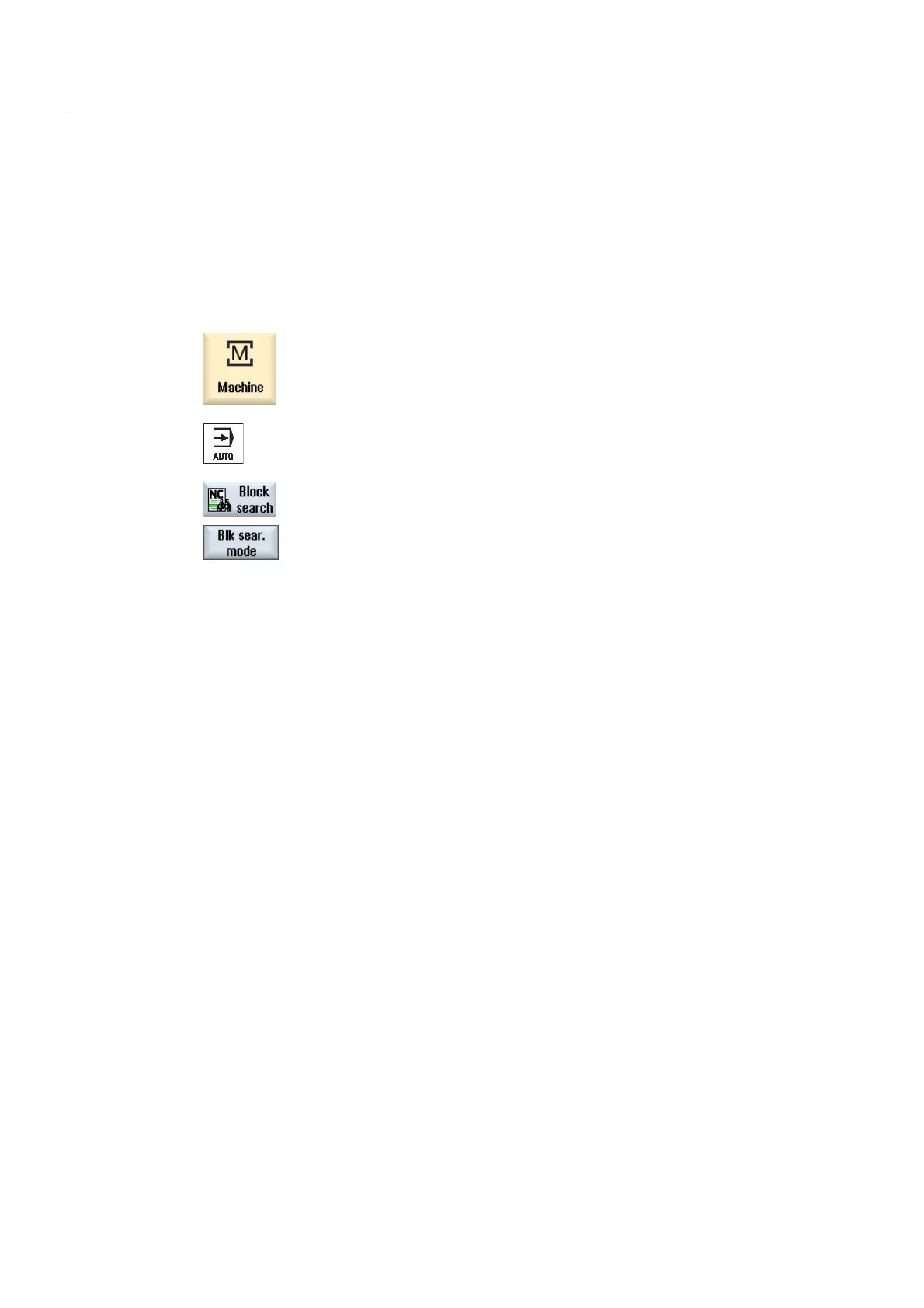

Procedure

1. Select the "Machine" operating area.

2. Press the <AUTO> key.

3. Press the "Block search" and "Block search mode" softkeys.

The "Search Mode" window will open.
