Creating a ShopMill program

7.1 Program views

Milling

Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

219

Programming graphics

The programming graphics show the contour of the workpiece as a dynamic graphic with

dotted lines. The program block selected in the machining schedule is highlighted in color in

the programming graphics.

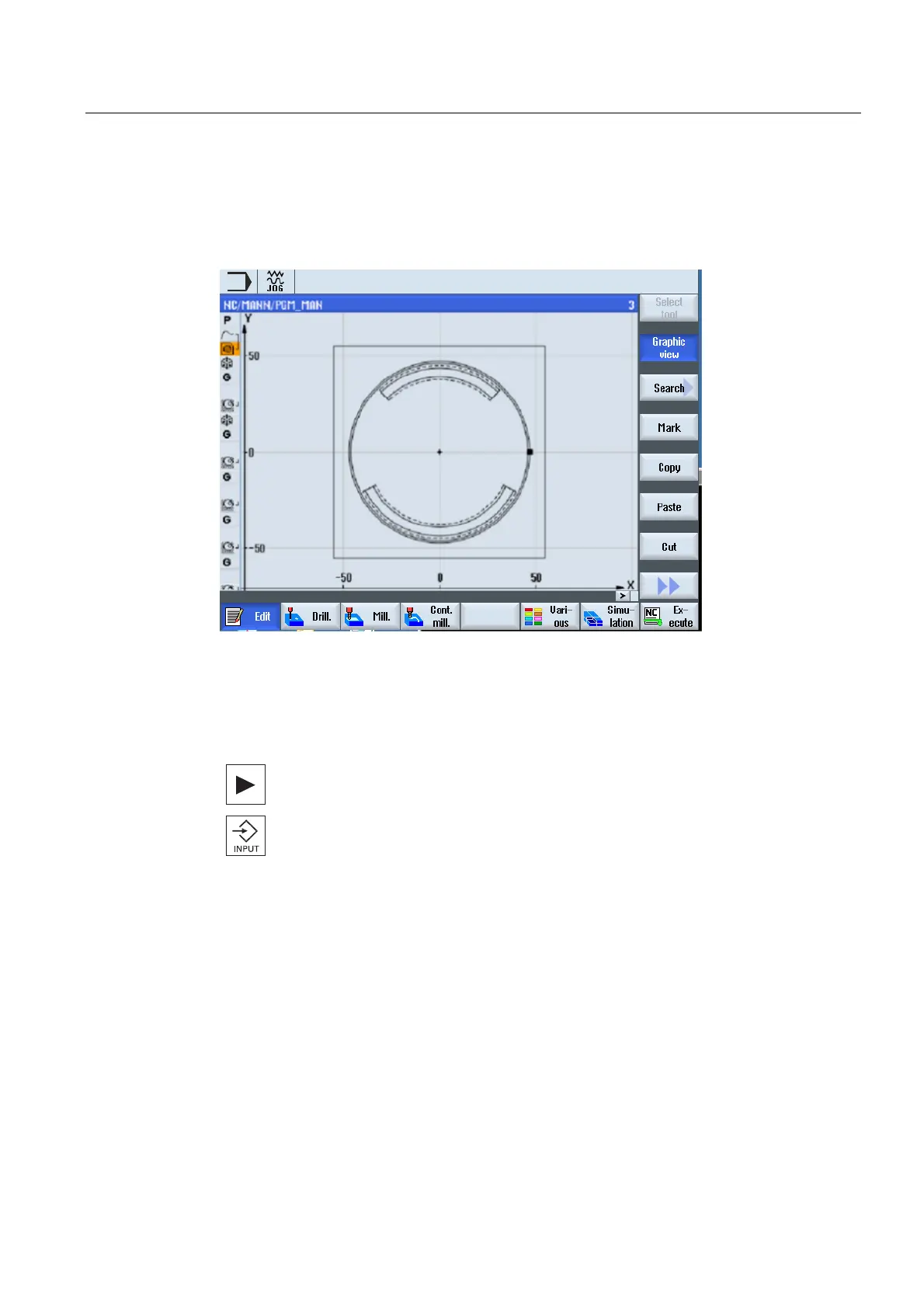

Figure 7-2 Programming graphics of a ShopMill program

Parameter screen with help display

Press the <Cursor right> or <Input> key to open a selected

program block or cycle in the work plan.

The associated parameter screen with help screen is then

displayed.
