Creating a ShopMill program

7.1 Program views

Milling

Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

221

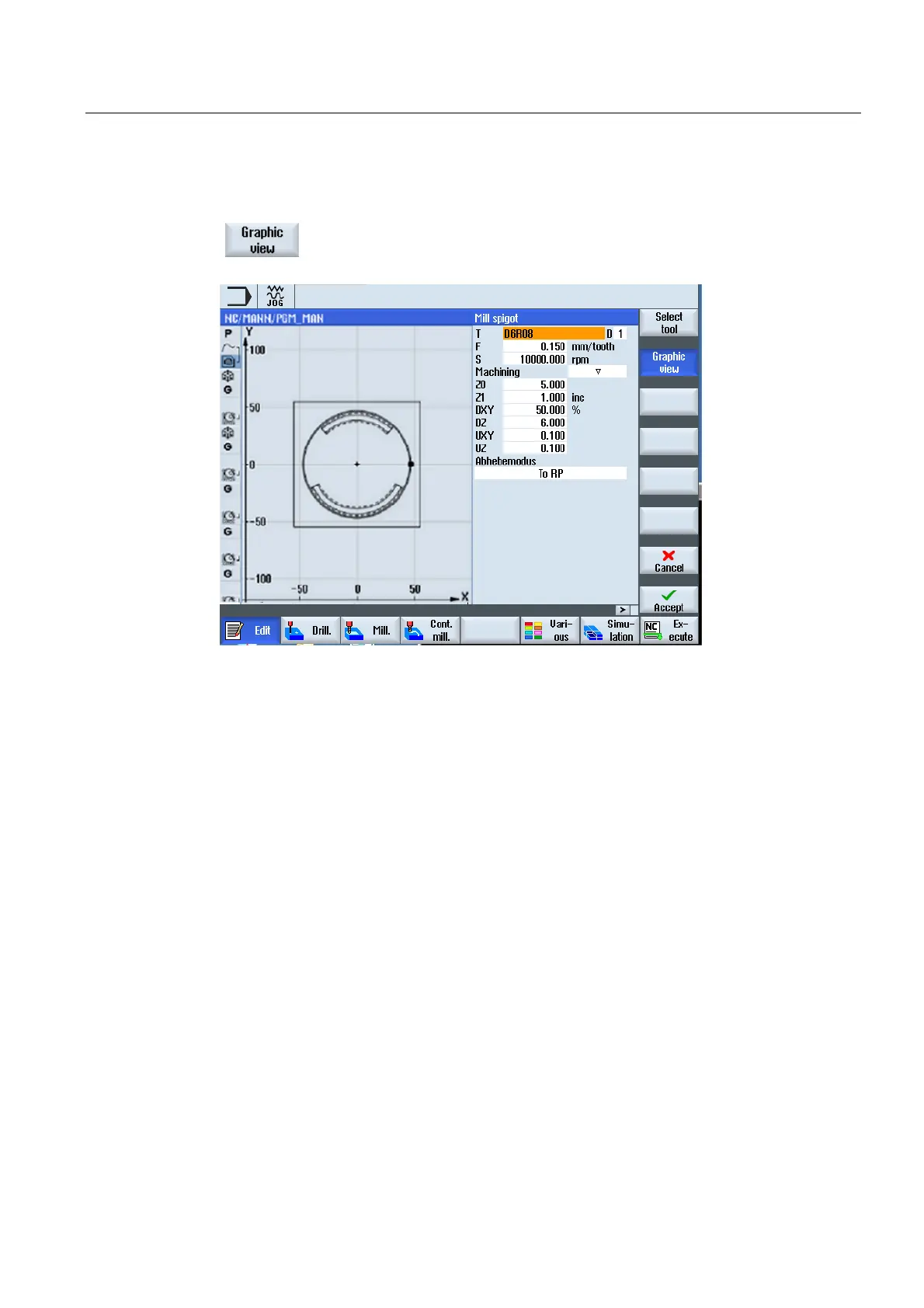

Parameter screen with programming graphics

In the screen, you can toggle between the help display and the

program graphics using the "Graphic view".

Figure 7-4 Parameter screen with programming graphics
