Programming technological functions (cycles)
8.4 Turning - only for G code programs
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
361

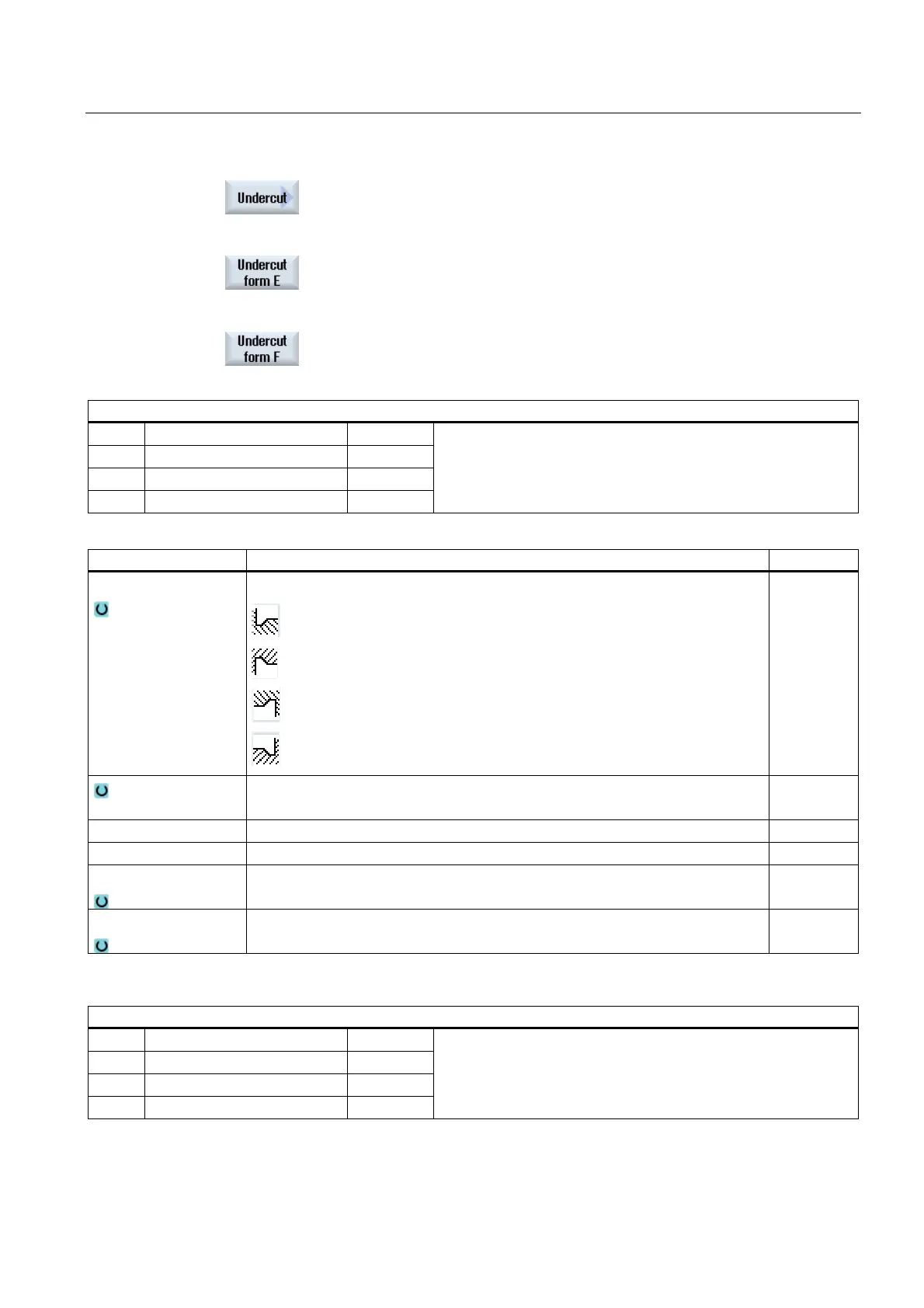

3. Press the "Undercut" softkey.
The "Undercut" input window opens.
4. Select one of the following undercut cycles via the softkeys:
Press the "Undercut form E" softkey.
The "Undercut form E (DIN 509)" input window opens.
- OR
Press the "Undercut form F" softkey.
The "Undercut form F (DIN 509)" input window opens.
Parameters, G code program (undercut, form E)
PL Machining plane
SC Safety clearance mm
F Feedrate mm/min
Parameters Description Unit
Position
Form E machining position:
Undercut size according to DIN table:
E.g.: E1.0 x 0.4 (undercut form E)
X0 Reference point X ∅ mm
Z0 Reference point Z mm
X1
Allowance in X ∅ (abs) or allowance in X (inc) mm
UX
Cross feed ∅ (abs) or cross feed (inc) mm
Parameters, G code program (undercut, form F)
PL Machining plane
SC Safety clearance mm
F Feedrate mm/min
