Programming technological functions (cycles)
8.4 Turning - only for G code programs
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
363

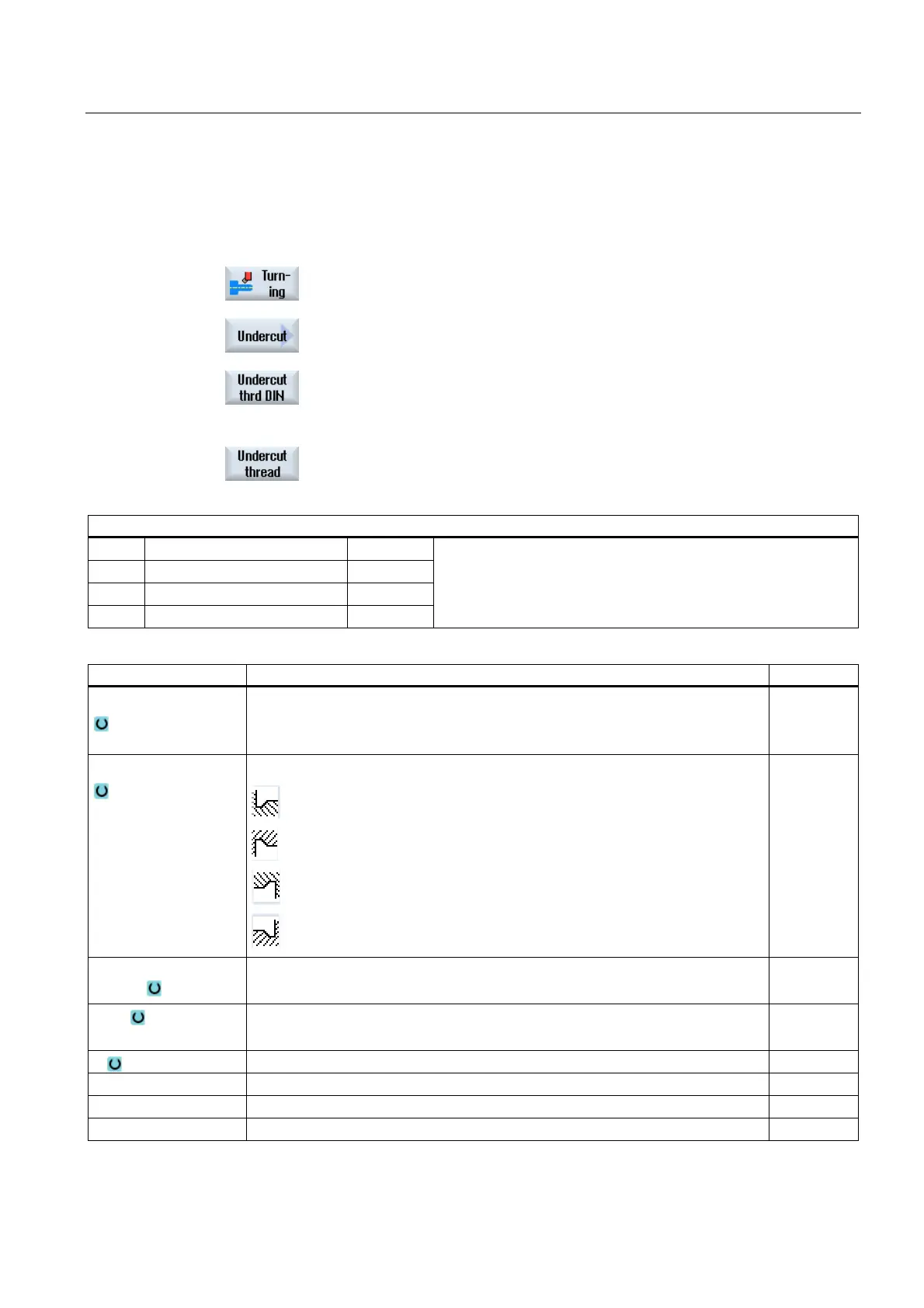

Procedure
1. The part program to be executed has been created and you are in the
editor.
2. Press the "Turning" softkey.
3. Press the "Undercut" softkey.
4. Press the "Thread undercut DIN" softkey.
The "Thread Undercut (DIN 76)" input window opens.
- OR -
Press the "Thread undercut" softkey.
The "Thread Undercut" input window opens.
Parameters, G code program (undercut, thread DIN)
PL Machining plane
SC Safety clearance mm
F Feedrate mm/min
Parameters Description Unit
Machining
∇ (roughing)
∇∇∇ (finishing)
∇ + ∇∇∇ (roughing and finishing)
Position
Machining position:
Machining
direction
Longitudinal
Parallel to the contour
Form
Normal (form A)
Short (form B)
P Thread pitch (select from the preset DIN table or enter) mm/rev
X0 Reference point X ∅ mm
Z0 Reference point Z mm
α Insertion angle Degrees
