Multi-channel view
9.2 Multi-channel view in the "Machine" operating area
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
437
Displaying/hiding a multi-channel view

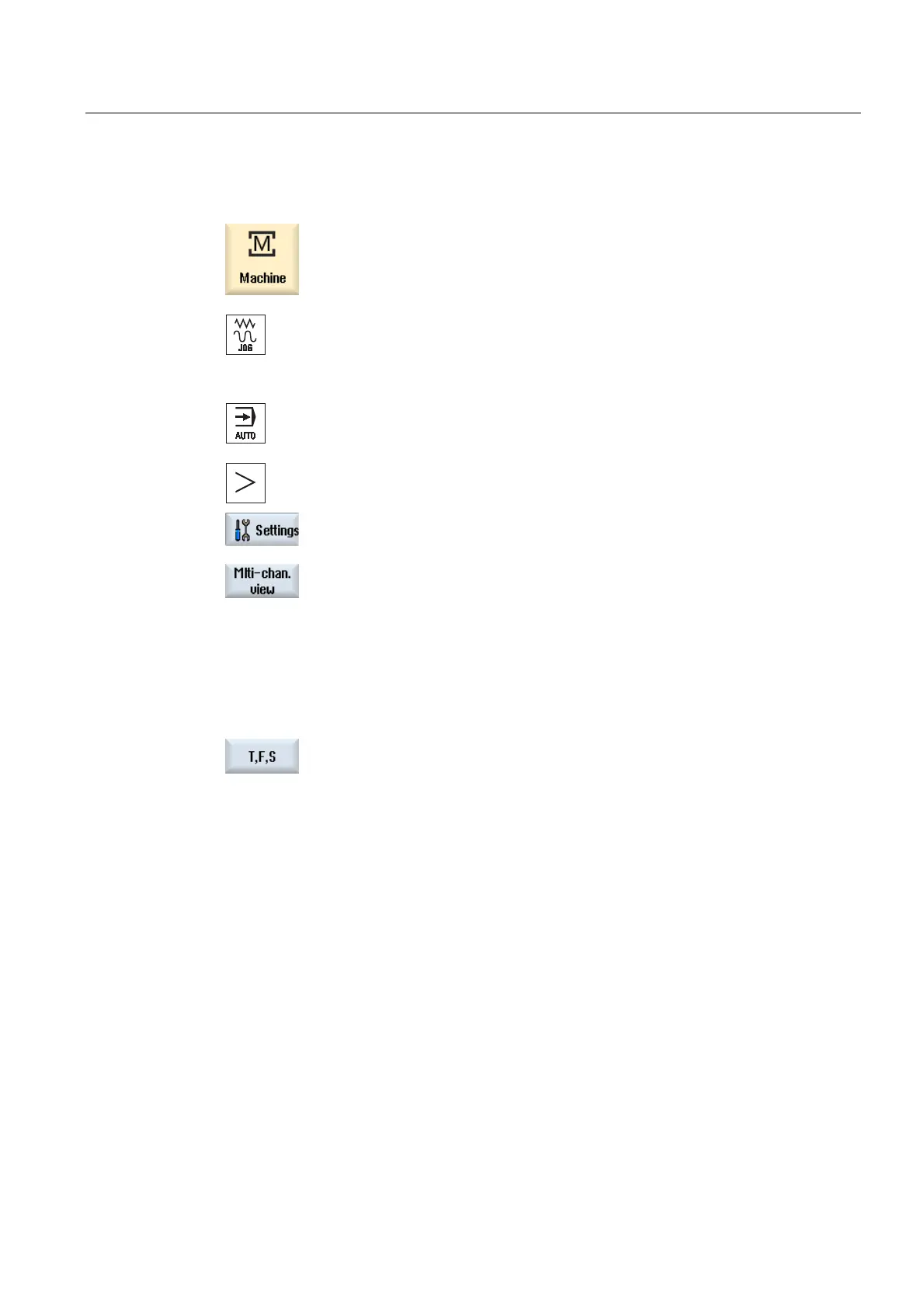

1. Select the "Machine" operating area
...
2. Select the operating mode "JOG", "MDA" or "AUTO".
3. Press the menu forward key and the "Settings" softkey.
4. Press the "Multi-channel view" softkey.
5. In the window "Settings for multi-channel view" in the selection
box "View", select the entry "2 channels" and define the
channels as well as the sequence in which they are displayed.
In the basic screen for the "AUTO", "MDA" and JOG" operating
modes, the upper window of the lefthand and righthand channel
columns are occupied by the actual value window.
6. Press the "T,S,F" softkey if you wish to view the "T,F,S"
window.
The "T,F,S" window is displayed in the lower window of the
lefthand and righthand channel column.
