Siemens SINUMERIK 840D Operating Manual

Teaching in a program
11.4 Teach-in via window
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
453

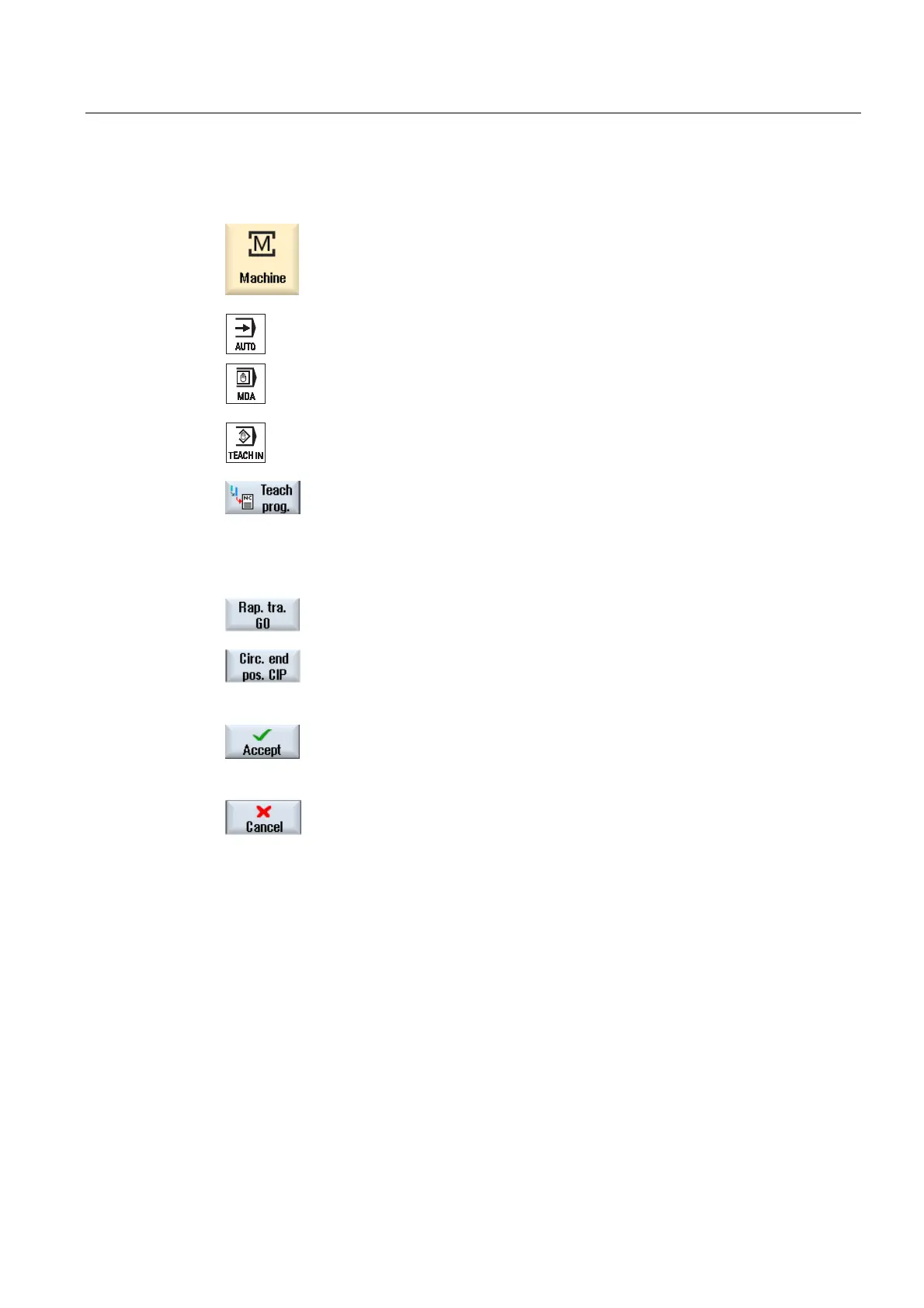

Procedure
1 Select the "Machine" operating area.
2. Press the <AUTO> or <MDA> key.
3. Press the <TEACH IN> key.
4. Press the "Teach prog." softkey.
5. Use the cursor and input keys to position the cursor at the desired
point in the program.
If an empty row is not available, insert one.
6. Press the softkeys "Rap. tra. G0", "Straight line G1", or Circ. interm.
pos. CIP" and "Circ. end pos. CIP".
The relevant windows with the input fields are displayed.
7. Traverse the axes to the relevant position.
8. Press the "Accept" softkey.
A new program block will be inserted at the cursor position.
- OR -
Press the "Cancel" softkey to cancel your input.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
