Teaching in a program

11.7 Deleting a block

Milling

Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

459

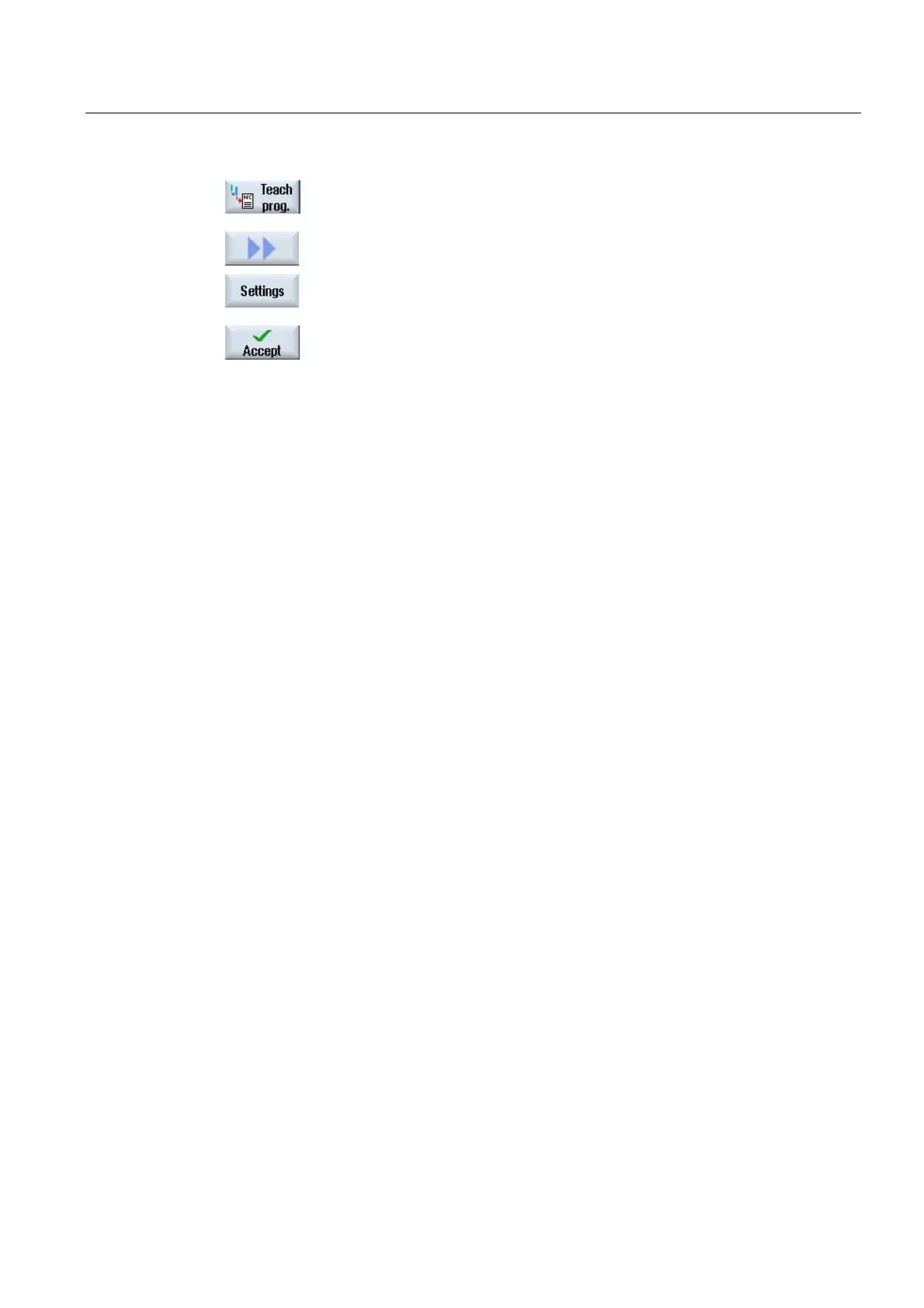

4. Press the "Teach prog." softkey.

5. Press the ">>" and "Settings" softkeys.

The "Settings" window appears.

6. Under "Axes to be taught" and "Parameters to be taught", select the

check boxes for the relevant settings and press the "Accept" softkey to

confirm the settings.
