Tool management

12.3 Tool types

Milling

464 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

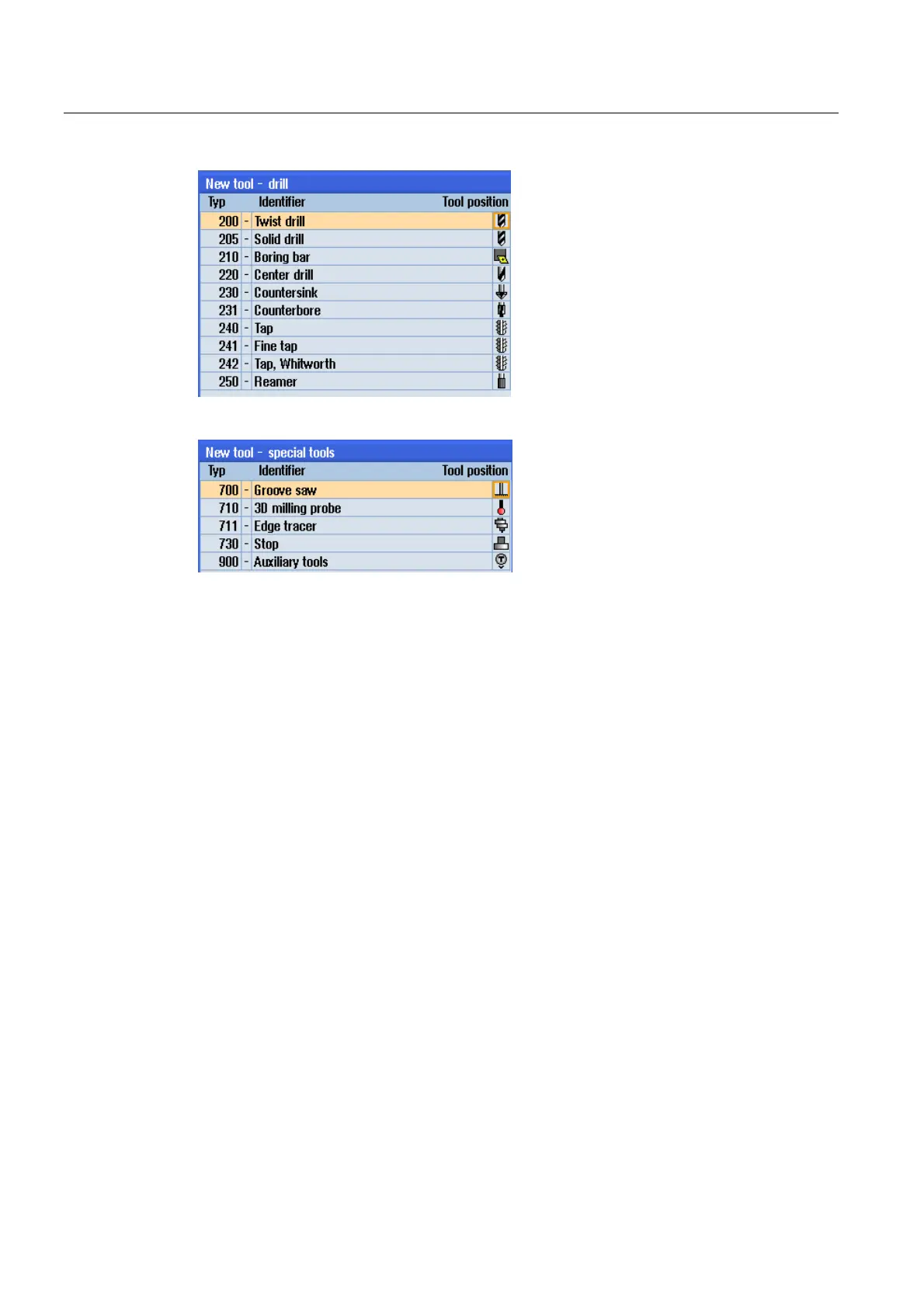

Figure 12-3 Available tools in the "New tool - drill" window

Figure 12-4 Available tools in the "New tool - special tools" window

See also

Changing a tool type (Page 494)
