Program management

13.3 Executing a program

Milling

502 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

Machine manufacturer

Please refer to the machine manufacturer's specifications.

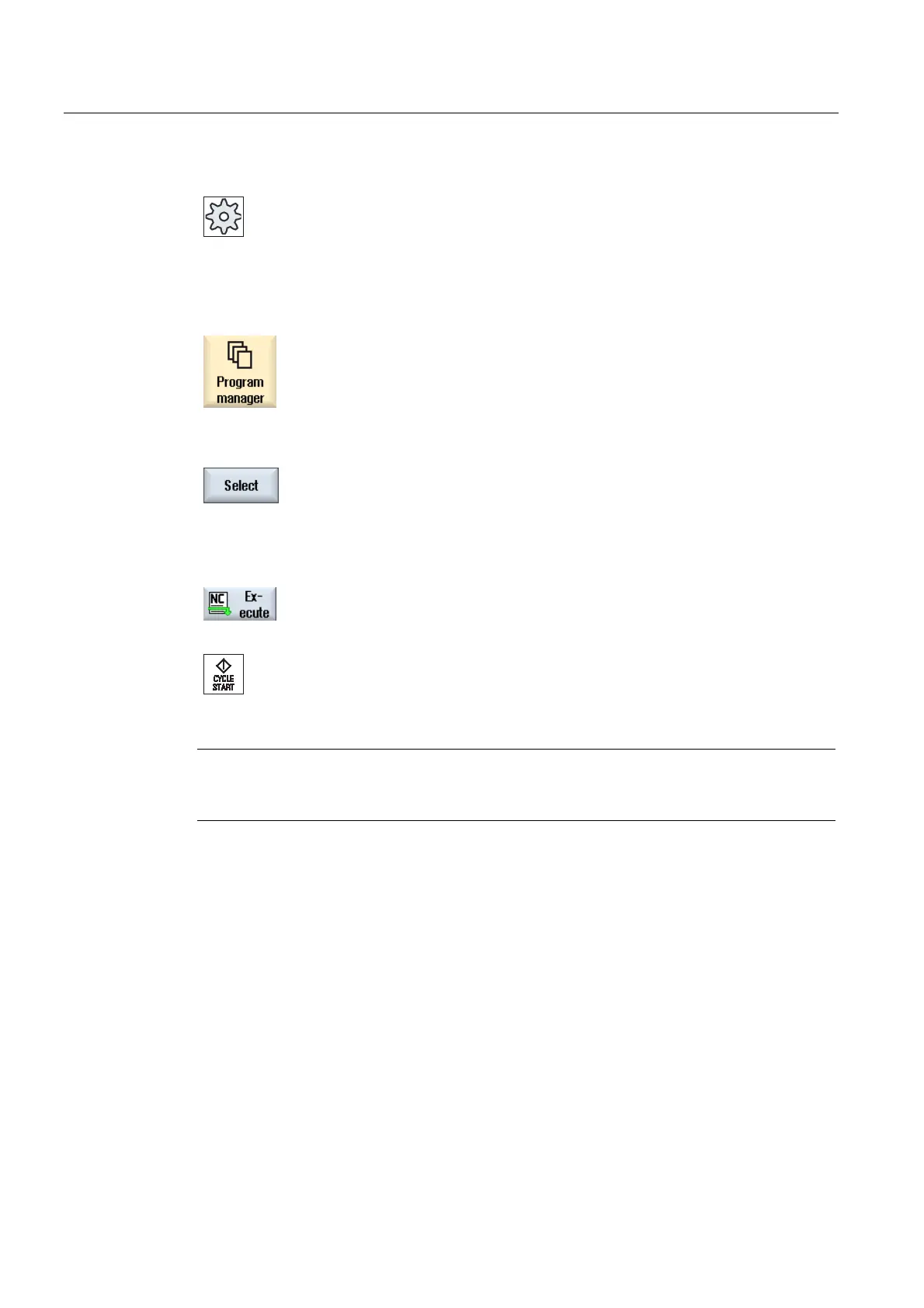

Procedure

1. Select the "Program Manager" operating area.

2. Select the desired storage location and position the cursor on the

workpiece/program that you would like to execute.

3. Press the "Select" softkey.

The controller switches automatically into the "Machine" operating

area.

- OR -

If the selected program is already opened in the "Program" operating

area,

Press the "Execute NC" softkey.

Press the <CYCLE START> key.

Execution of the workpiece is started.

Note

Only workpieces/programs that are located in the NCK memory, local drive or USB drive can

be selected for execution.
