Alarms, error messages, and system alarms

20.1 Displaying alarms

Milling

580 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

...

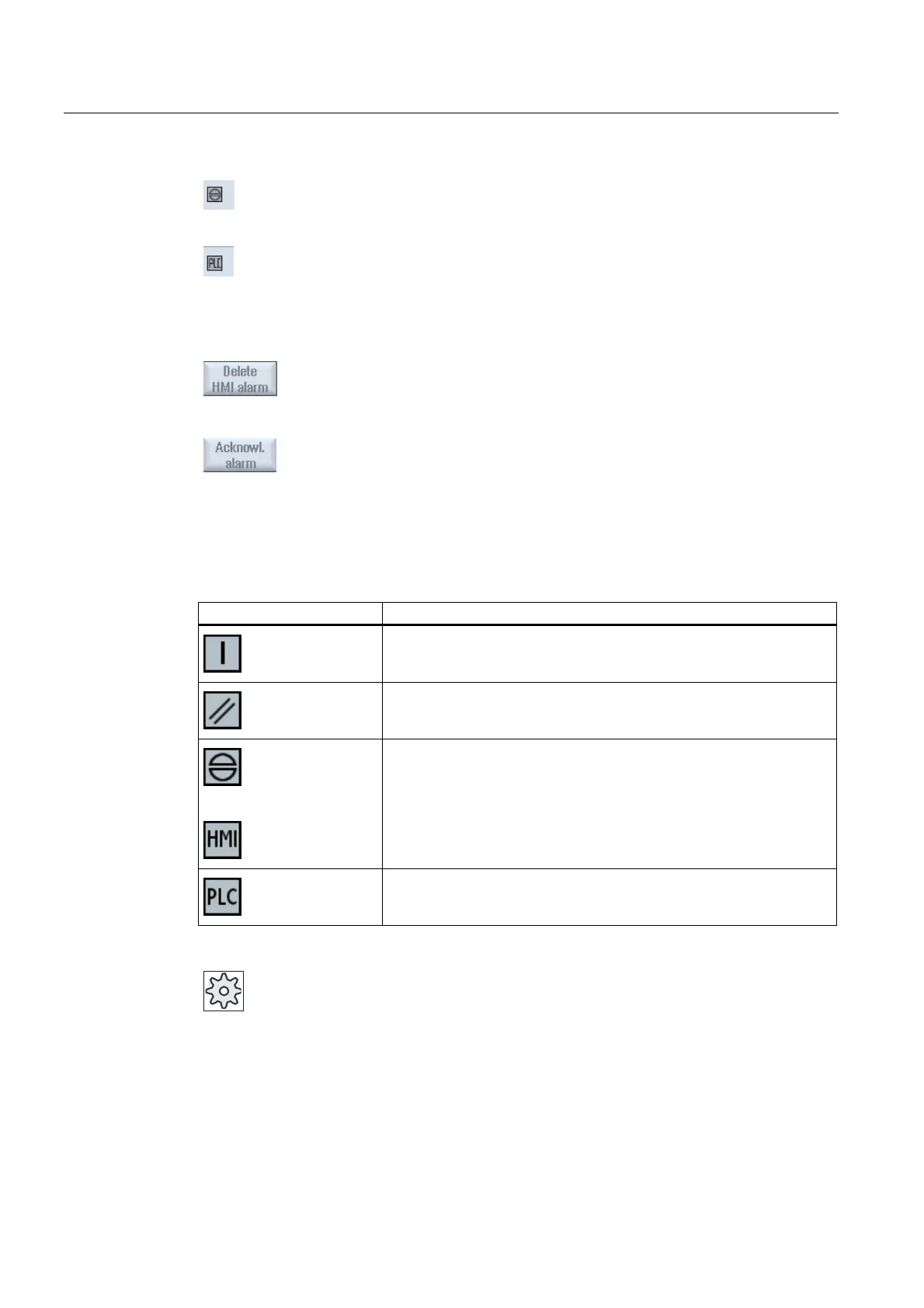

3. Position the cursor on an alarm.

4. Press the key that is specified as acknowledgement symbol to delete

the alarm.

- OR -

Press the "Delete HMI alarm" softkey to cancel an HMI alarm.

- OR -

Press the "Acknowledge alarm" softkey to delete a PLC alarm of the

SQ type (alarm number as of 800000).

The softkeys are activated when the cursor is on the corresponding

alarm.

Acknowledgement symbols

Symbol Meaning

Turn the unit off and back on (main switch), or press NCK POWER ON.

Press the <RESET> key.

...

Press the <ALARM CANCEL> key.

- OR -

Press the "Acknowl. HMI alarm" softkey.

Press the key provided by the manufacturer.

Machine manufacturer

Please refer to the machine manufacturer's specifications.
