SimradSU90
ConnectingthedualinterfacecablefromtheOperating
PaneltotheProcessorUnit
Purpose
Thisisaspecialdualcablefrom
theOperatingPaneltotheProcessor
Unit.Thiscablehasonecommon
15-pinconnectorleadingtotwo
separate9-pinconnectorsinthetwo
otherendsofthecable.Thecable
isincludedinthestandarddelivery,
andthecablelengthis4,5meter.
Thecableisinstalledwiththe
15-pinD-connector(commonend)
connectedtoOperatingPanel,and
the9-pinfemaleandmaleD–connectorsconnectedtoappropriatesocketsontherear
sideoftheProcessorUnit.
Cableidentiers
ThesearecablesSU90/C11andSU90/C12.
Relatedtopics
•Cableplanonpage93
•Listofcablesonpage95
•OperatingPanel“Dual”cable
onpage306
Procedure

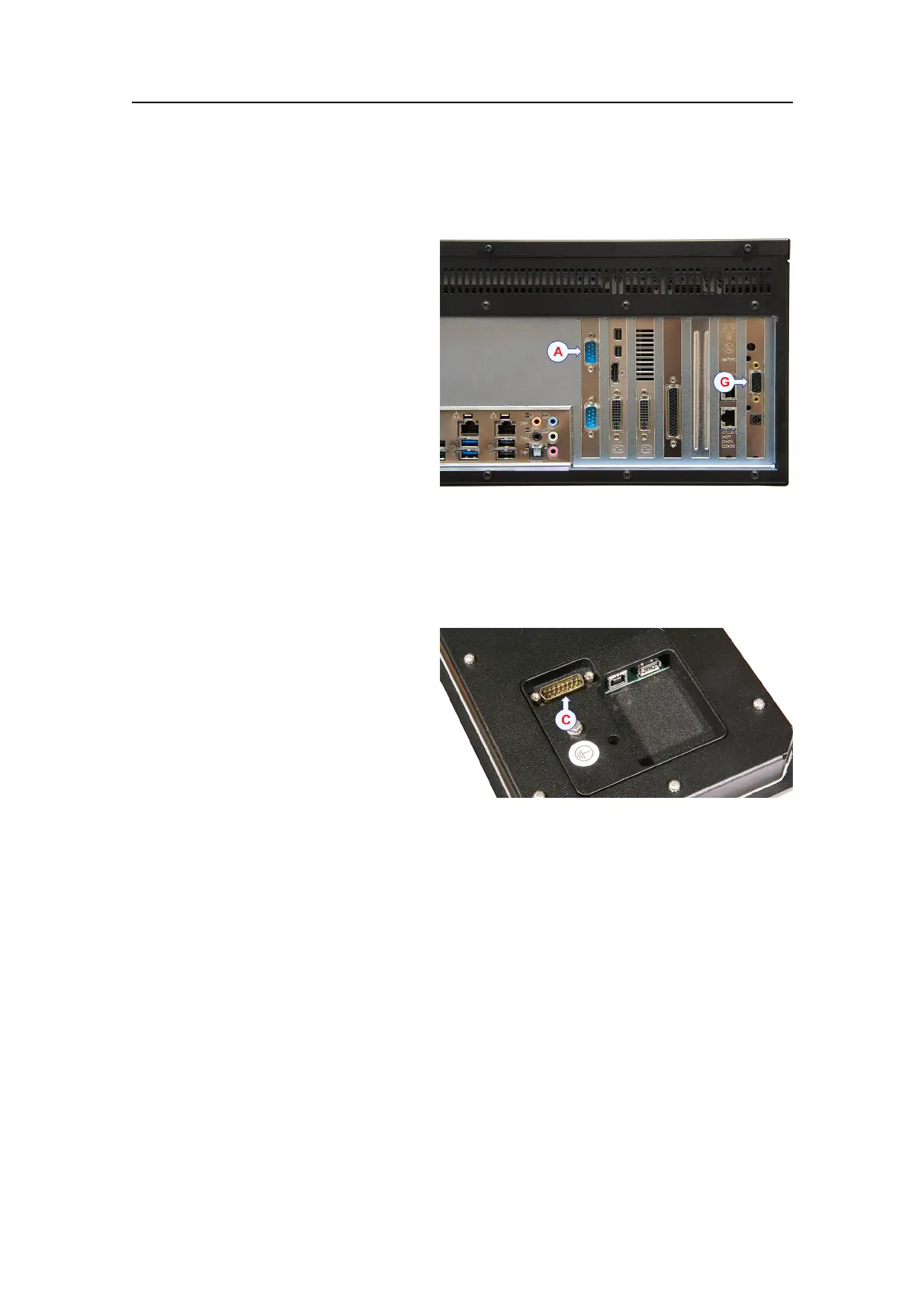

1Connectthedualendofthecable
tothemaleandfemaleD-connectorsocketsontherearsideoftheProcessorUnit.
TheseareidentiedasslotsAandGrespectively.
2ConnectthesingleendofthecabletotheD-connectorundertheOperatingPanel.
ThissocketisidentiedwithConthephoto.
104
381293/A
