Simrad SU90 Installation Manual

Installingthebridgeunits

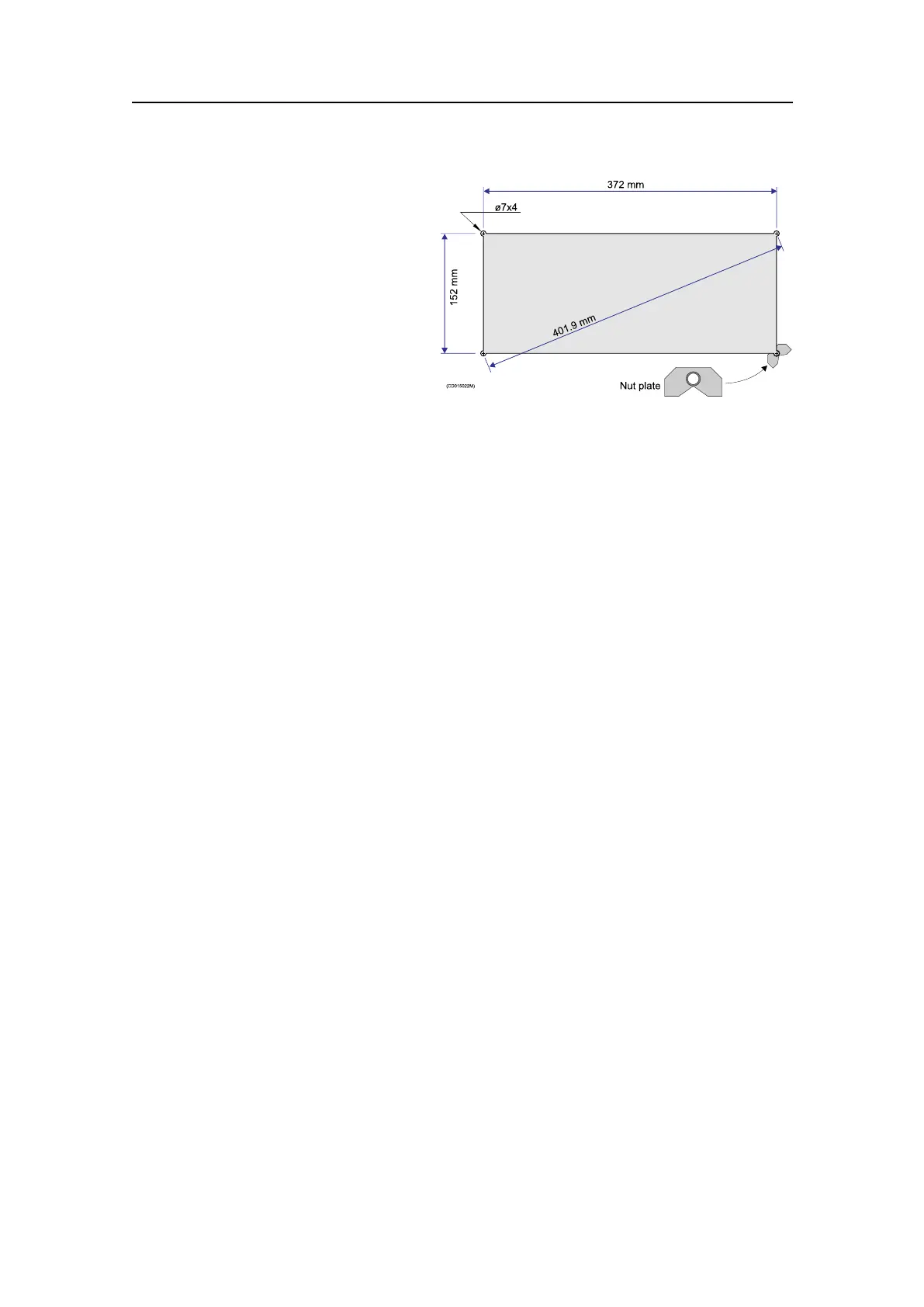

372mm
Nutplate
152mm
401.9mm
ø7x4
(CD015022M)
Procedure
1Preparethelocationandthe
necessarytools.
[____]Ok
2Mounttheoperatingpanelin
analmosthorizontalposition
tofacilitateoperationofthe
trackball.
Thenecessarymounting
hardware(fourscrews,four
nutplatesandfourboltcovers)
aresuppliedinthestandarddelivery.
[____]Ok
→OperatingPaneldimensionsonpage261
3Drillandcutthepanelopeningasshowninthegure.
[____]Ok
4MounttheOperatingPanelusingthesuppliedhardware.
[____]Ok
aPositionthefournutplatesshowninthegure.
bUsea3mmAllenkeytofastenthefourspecialbolts.
cMounttheboltcoversinthefourcornersoftheOperatingPanel.
InstallationoftheOperatingPanelPower
Supply
NospecicinstallationprocedureappliestotheOperatingPanelPowerSupply.
Installationoftheamplierandloudspeakers
Forinstallationandoperationofthechosenaudiosystem,refertothemanualsupplied
withtheunit.
Relatedtopics
•Commercialpoweredspeakersystemonpage304
381293/A
89
