Drawingîš¿le

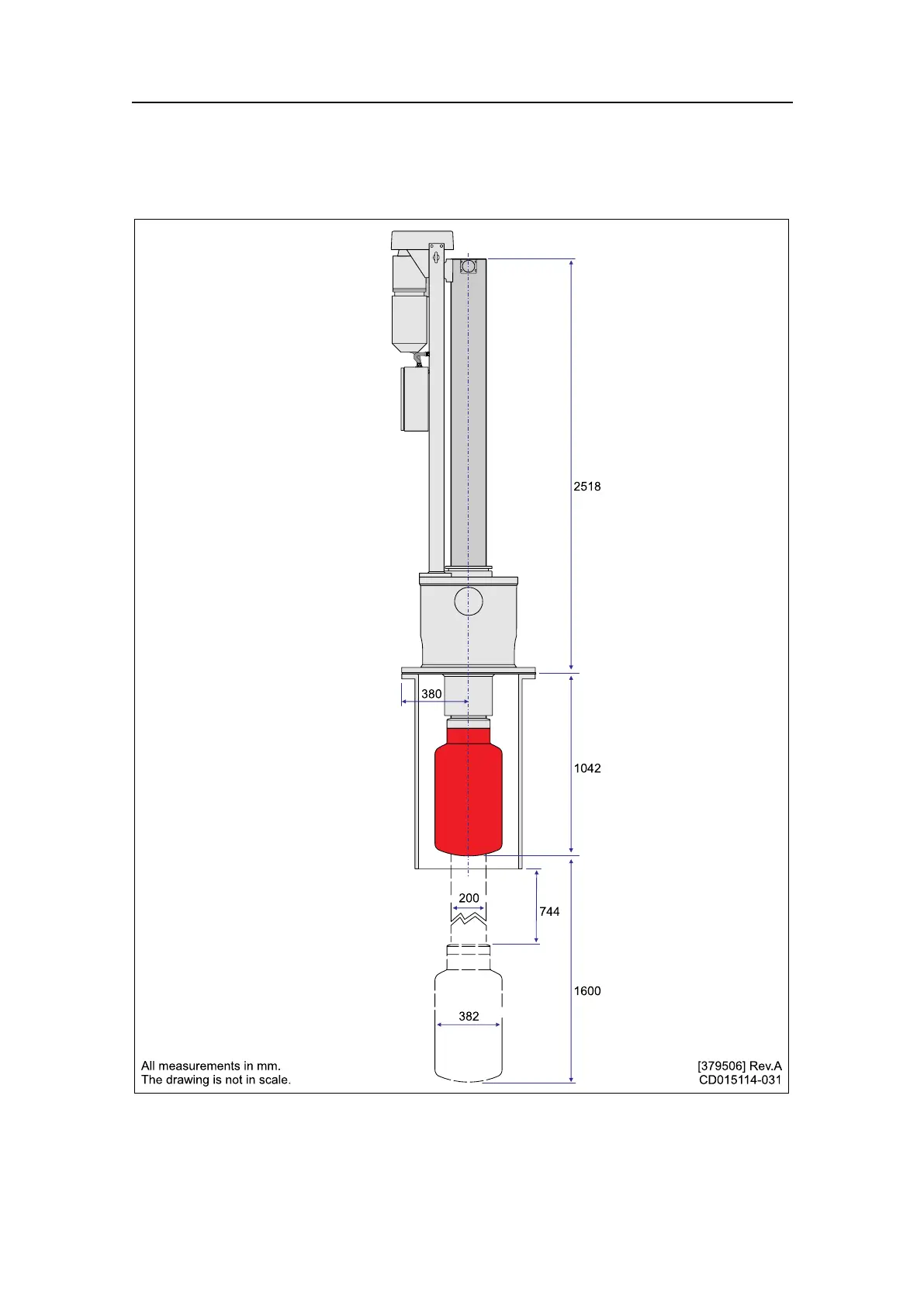

SU93Hullunitdimensionsdrawing
1600
1042
380
2518
200
382
744
Allmeasurementsinmm.
Thedrawingisnotinscale.
[379506]Rev .A
CD0151 14-031
381293/A
