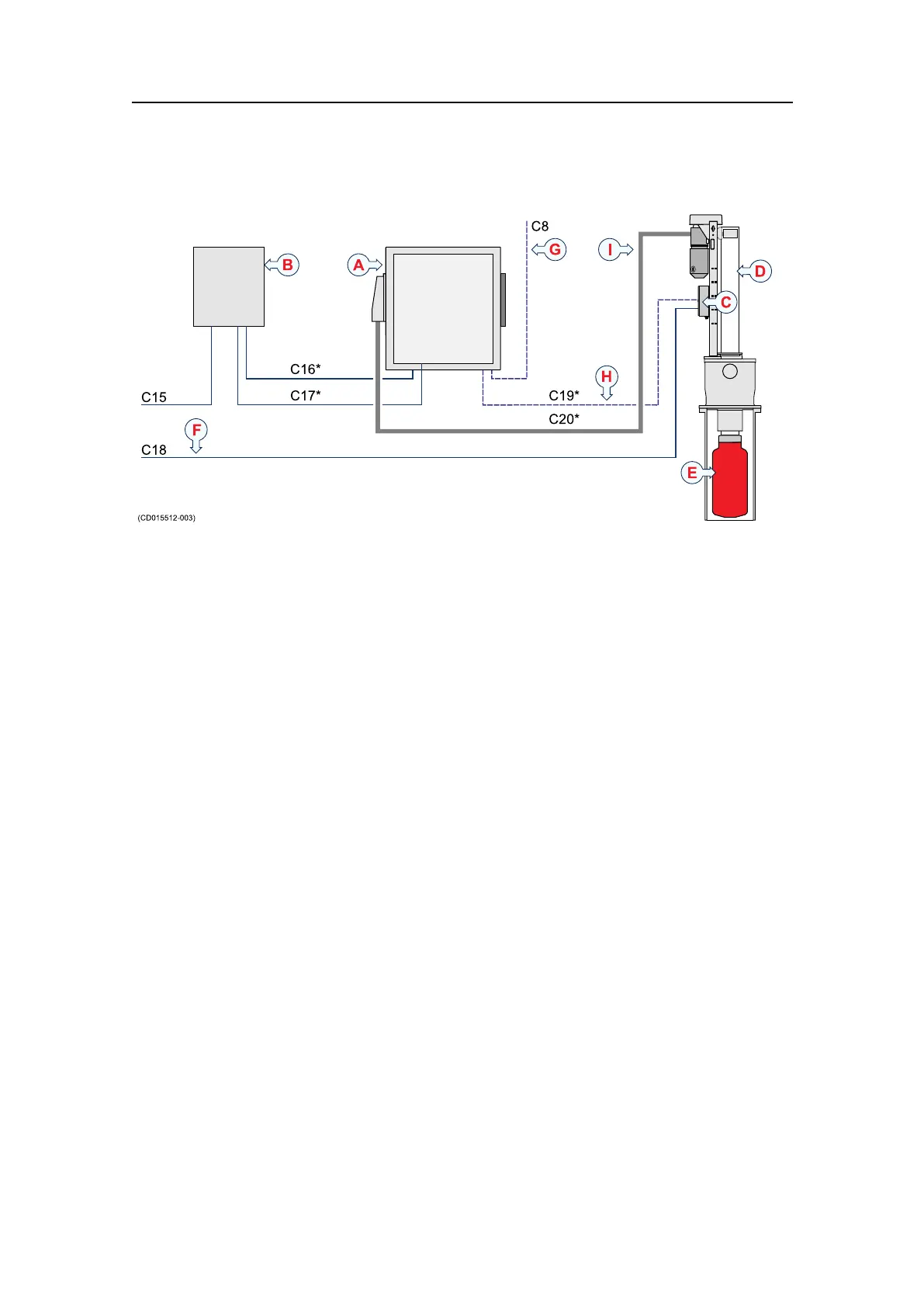

Simrad SU90 - Sonar Room Cables

SimradSU90
Sonarroomcables
C8
(CD015512-003)
C16*
C17*
C15
C19*
C20*
C18
C
D
B
G
A
I
F
H
E
ATransceiverUnit
BUninterruptedPowerSupply
CMotorControlUnit
DHullUnit
ETransducer
F3–phaseACmainstoMotorControlUnit
GEthernetcommunicationtobridge
HEthernetcommunicationtoMotorControlUnit
ITransducercable
Cablesidentiedwithanasterisk(*)areprovidedbySimrad.
94
381293/A
