SimradSU90

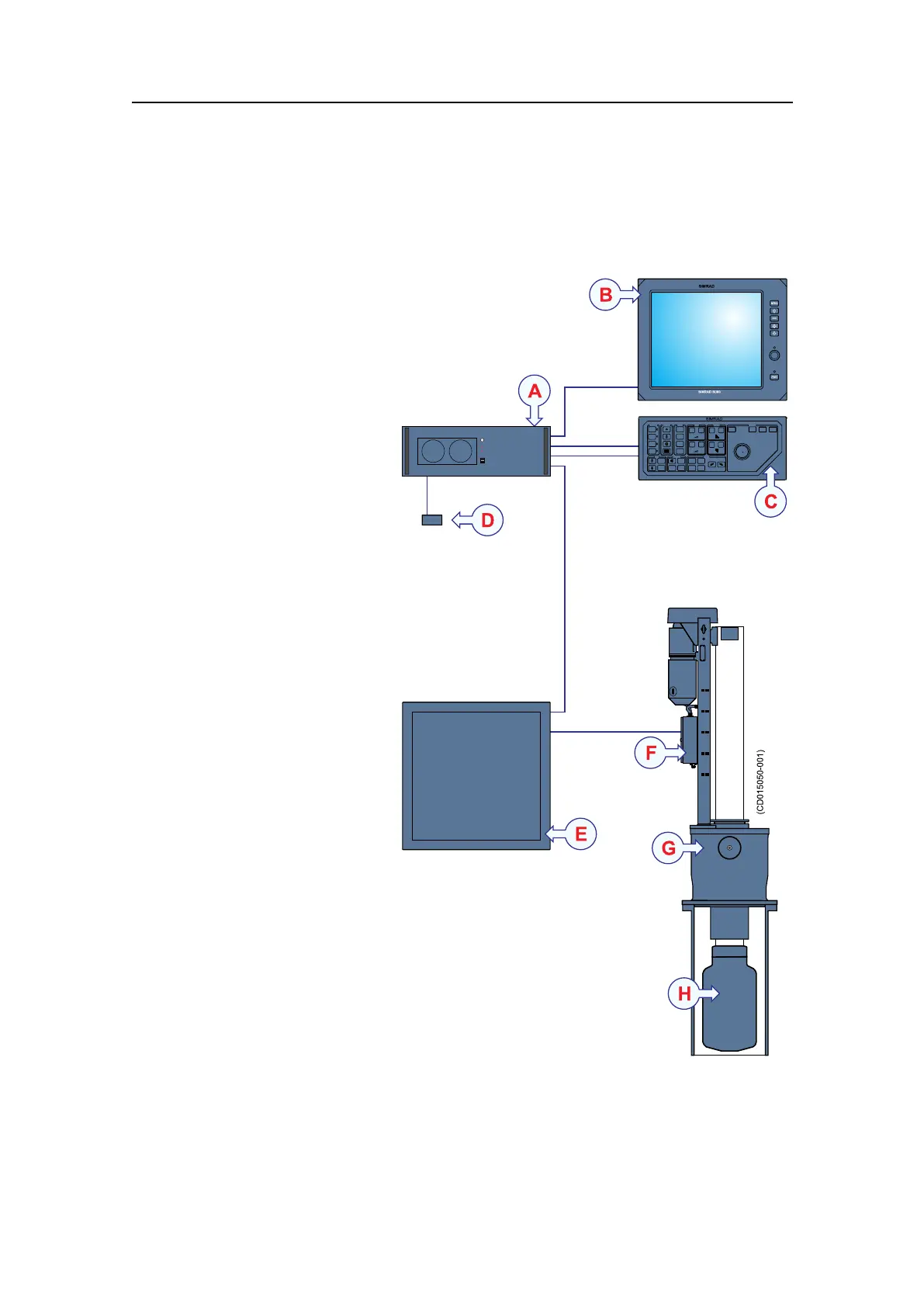

Systemdiagram
AstandardSU90systemdiagramisprovided.Interfacecapabilities,uninterruptedpower
suppliesandpowercablesarenotshown.
SIMRAD
PWR
MENU
SIMRAD
SIMRADSU90
(CD015050-001)
B
C
D
E
G
H
F
A
AProcessorUnit
BColourdisplay
COperatingPanel
DOperatingPanelPower
Supply
ETransceiverUnit
FMotorControlUnit
GHullUnit
HTransducer
Thecolourdisplayisnot
includedinthestandard
deliveryfromSimrad.Thisis
acommercialitemthatcanbe
purchasedlocally.
18
381293/A
