Determingthelocationofthehullunit
Observegeneralrecommendationsrelatedtothephysicallocationofthehullunit.
Topics
•Foreandaftlocationonpage40
•Athwartshipslocationonpage41
•Importantconsiderationsrelatedtonoiseonpage41
Foreandaftlocation
Thehullunitshouldpreferablybelocatedwithin1/3to1/10ofthevessel’sLength
BetweenPerpendiculars(LBP)fromitsForwardPerpendicular(FP).Deviationsshould
notbemadewithoutconsultingKongsbergMaritime.

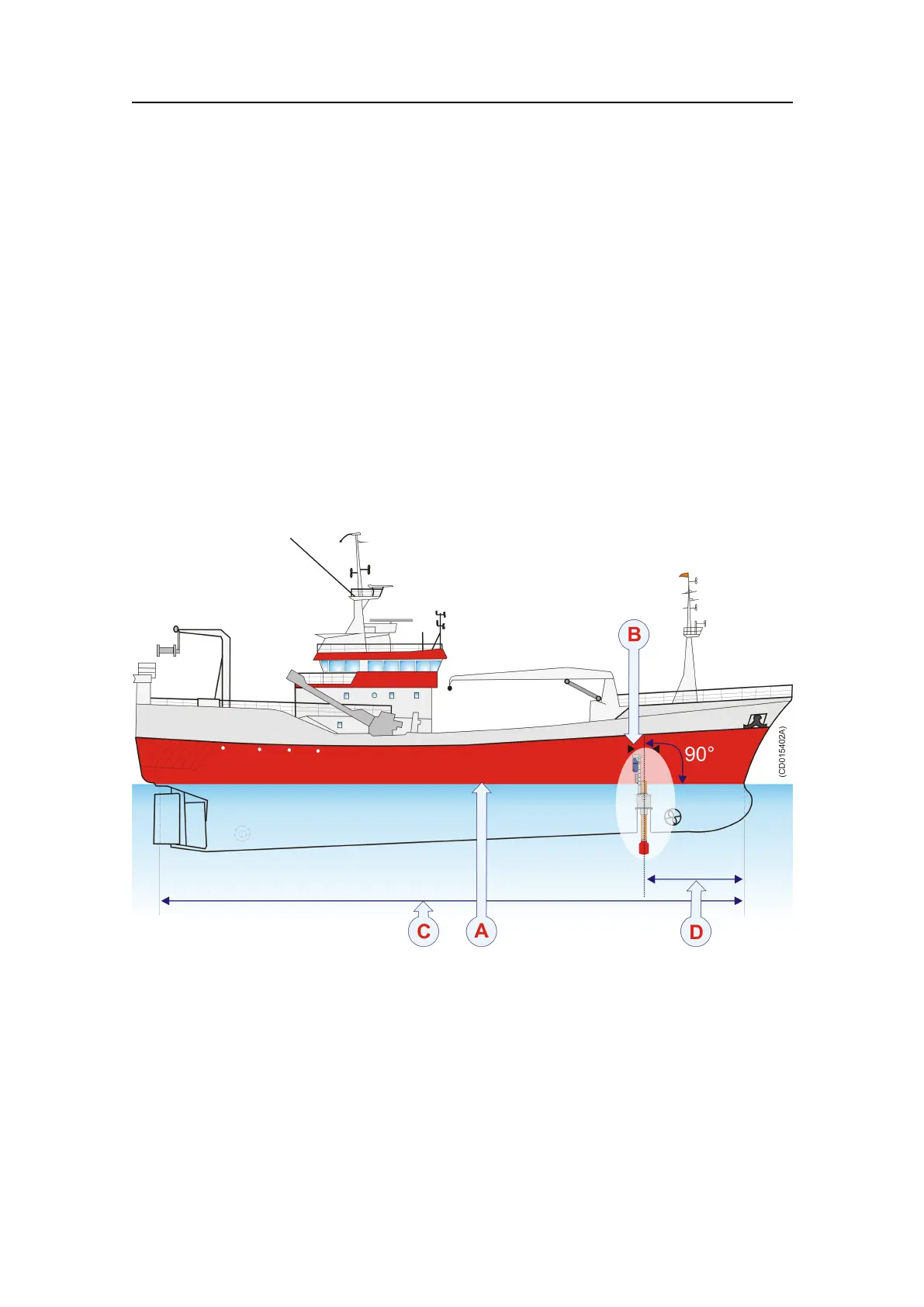

Locationofthehullunit
AWaterlevelatnormaltrim
BWeldingmarkstoindicatehullunitlocationwhendocking
CLengthBetweenPerpendiculars(LBP)
D1/3to1/10ofLBP
40
381293/A
