Cablelayoutandinterconnections

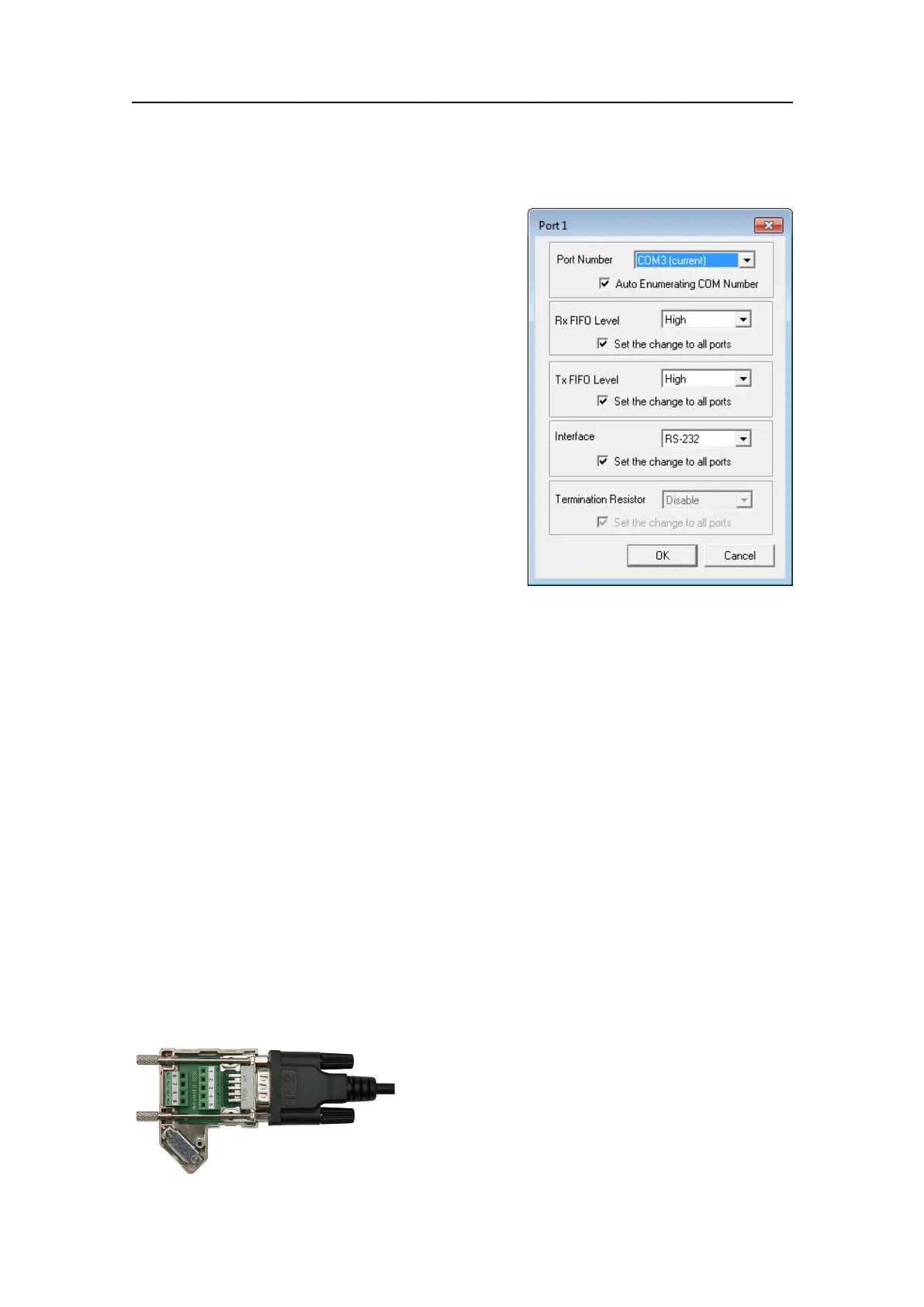

5ClickPortSettingtoopenthecongurationdialogbox.
6Setuptheinterfaceparameterstosuityour
preferences.
aSelectportnumber(bydefault,theport
chosenbeforeyouopenedthedialog
boxisshown)
bSelecttheAutoEnumeratingCOM
Numberoptiontomapsubsequentports
automatically.
Theportnumberswillbeassignedin
sequence.Forexample,ifCOM3is
assignedtoPort1,thenCOM4(ifnot
alreadyoccupied)willbeassignedto
Port2,etc.
cSelectanRxFIFOtriggerfromtheRx
FIFOLevelpull-downlist.
RxFIFOtriggerlevelsHigh,Middle,
andLowareavailable,withthedefault
settoHigh(120bytes).
dClickSetthechangetoallportstoapplythisRxFIFOtriggertoallports.
eSelectaTxFIFOLevelfromtheTxFIFOLevelpull-downlist.
TxFIFOLevelLevelsofHigh,Middle,andLowareavailable,withthedefault
settoHigh(128bytes).
fClickSetthechangetoallportsoptiontoapplytheTxFIFOLeveltoallports.
gSelectInterface(RS-232,RS-422,2-wireRS-485,4-wireRS-485).
hSelectTerminationResistor(120Ω,EnableorDisable).
iClickOKrepeatedlytosavetheportsettingsandexittheutility.
Adaptercable
Anadaptercableisincludedinthedelivery.Thisallowsforconnectionoffourindividual
9-pinD-subconnectorstotheserialinterfaceboard.
Four9-pinD-subconnectorswithscrewterminals,andanumberofadapternutsfor
connectiontotheadaptercable,arealsoincludedinthedelivery.
Screwconnectoradapterfor9–pinD—subconnectors
