SimradSU90

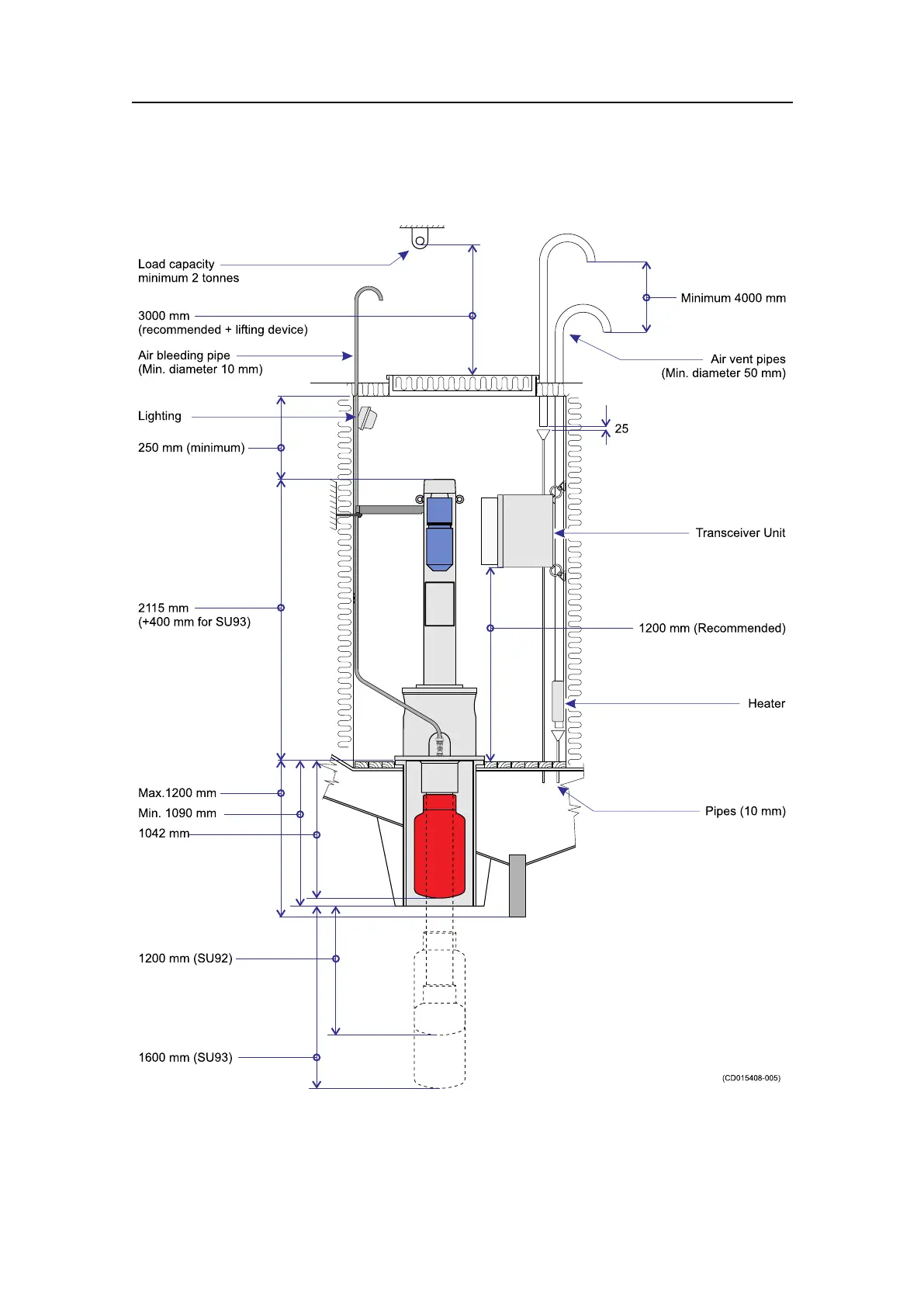

Sonarroomarrangementexample2–Sideview
Airventpipes
(Min.diameter50mm)
Minimum4000mm
25
3000mm
(recommended+liftingdevice)
Loadcapacity
minimum2tonnes
Heater
TransceiverUnit
Pipes(10mm)
Airbleedingpipe
(Min.diameter10mm)
Lighting
1200mm(Recommended)
2115mm
(+400mmforSU93)
250mm(minimum)
1042mm
1600mm(SU93)
1200mm(SU92)
Max.1200mm
Min.1090mm
(CD015408-005)
46
381293/A
