Settingtowork

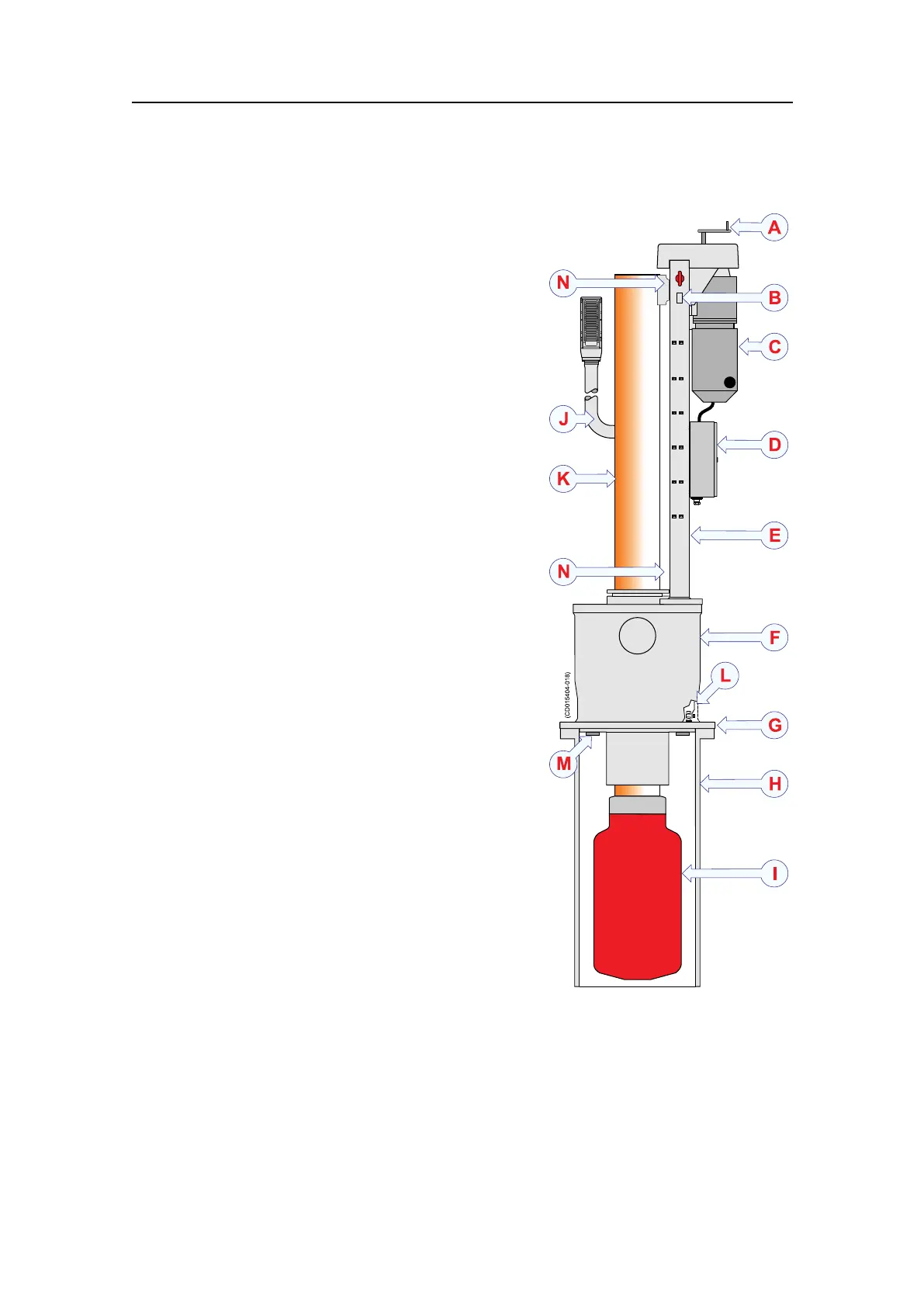

Hullunitfamiliarizationandmainpartsidentiîš¿cation
(CD015404-018)
A
C
L
M
D
E
B
G
H
F
I
N
J
K
N
AHandcrankformanualhoistingandlowering
BIdentiîš¿cationlabel
CHoistingmotor
DMotorControlUnit
EHoistingunit
FTransducershaftsleeve
GMountingange
HInstallationtrunk
ITransducer
JTransducercable
KTransducershaft
LAirbleedingcock
MZincanodes
NUpperandlowerlimitswitches
381293/A
165
