Cablelayoutandinterconnections

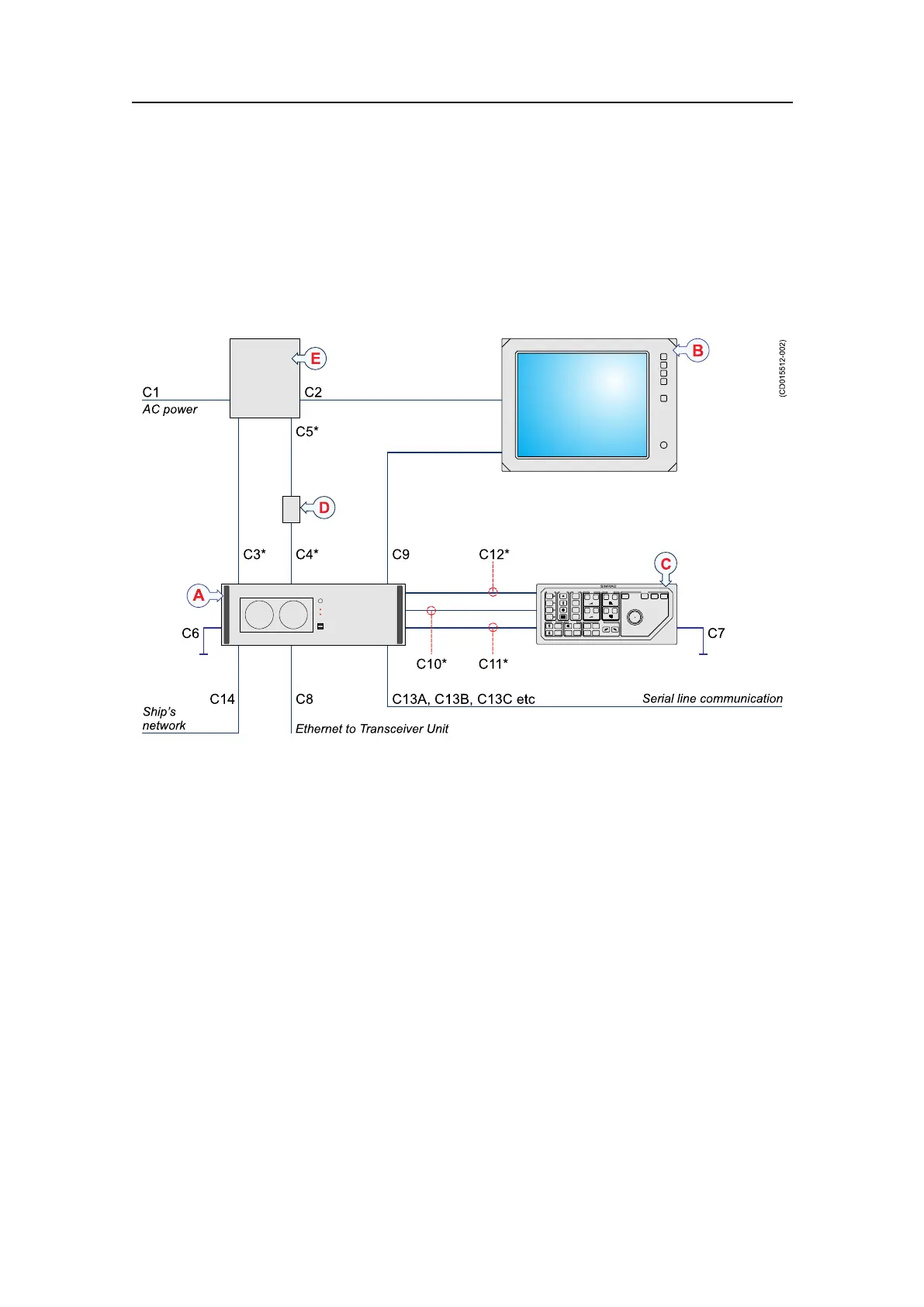

Cableplan
ObservethecableplanfortheSimradSU90.Cablesidentiîš¿edwithanasterisk(*)
areprovidedbySimrad.
Bridgecables
C12*
C1
C14
SIMRAD
C7
C2
C3* C4*
C13A,C13B,C13Cetc
Seriallinecommunication
EthernettoT ransceiverUnit
Ship ’s
network
ACpower
C9
C5*
C8
C10* C11*
C6
D
E
C
(CD015512-002)
B
A
AProcessorUnit
BColourdisplay
COperatingPanel
DOperatingPanelPowerSupply
EUninterruptedPowerSupply
Cablesidentiîš¿edwithanasterisk(*)areprovidedbySimrad.
DualEthernetcablesmaybeusedbetweentheProcessorUnitandtheTransceiverUnit.
Thisisforredundancypurposes.
381293/A
93
