Simrad SU90 Installation Manual

Installingthebridgeunits

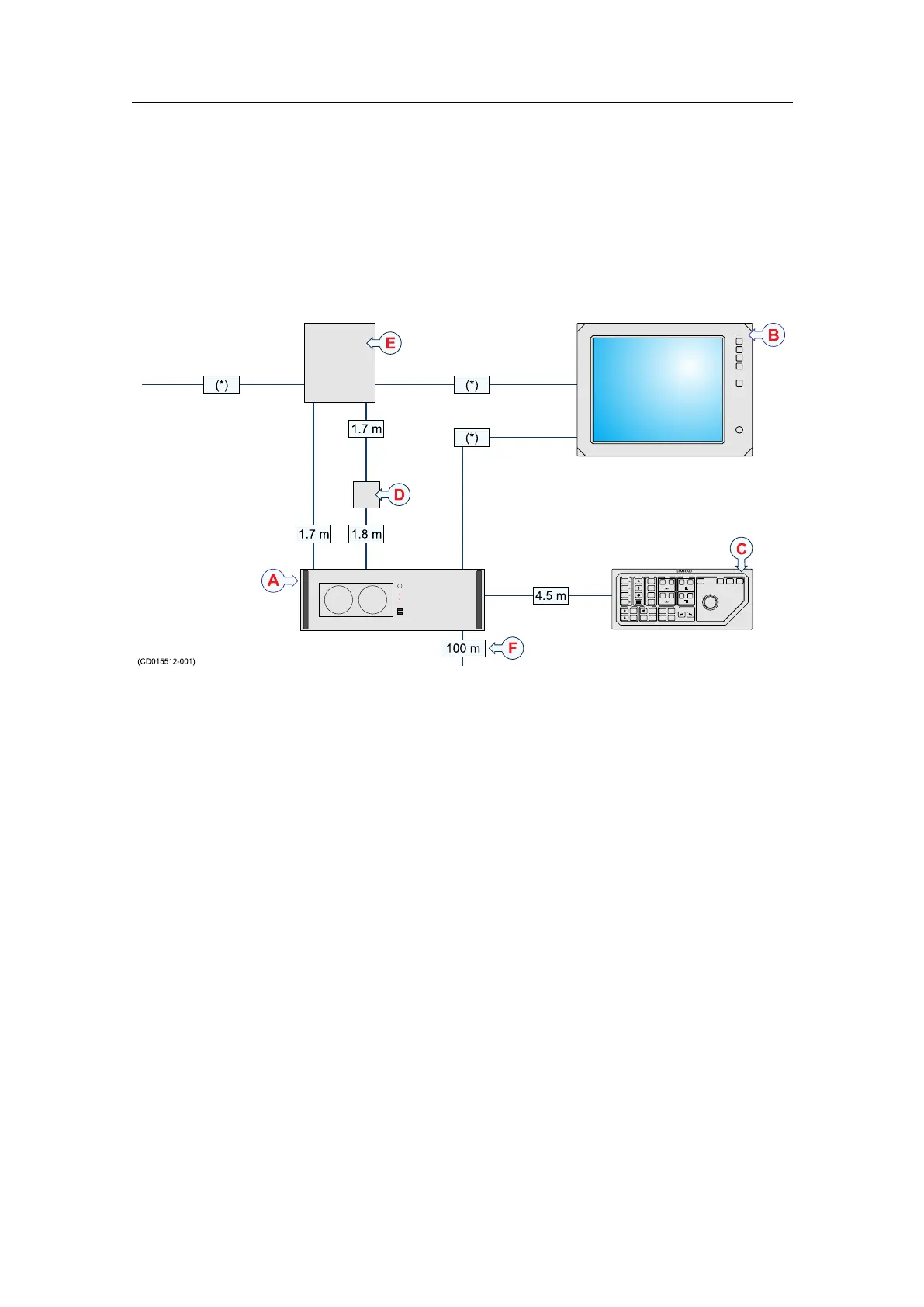

Maximumdistancesbetweentheunits
Observethemaximumdistancesbetweenthebridgeunits.
IfasecondaryOperatingPanelisinstalled,themaximumdistancedependsonthechosen
wiring.UsingcommercialextenderunitsandCAT5–EEthernetcable,themaximum
distancebetweentheProcessorUnitandtheoperatingpanelisnormally150meters.
SIMRAD
D
E
F
C
(CD015512-001)
B
(*)
(*)(*)
1.7m
4.5m
1.8m
1.7m
100m
A
Allmeasurementsareinmeters.
(*)Thelengthofthesecablesaredeterminedbytheapplicablemanufacturers.
AProcessorUnit
BColourdisplay
COperatingPanel
DOperatingPanelPowerSupply
EUninterruptedPowerSupply
FEthernetcablebetweensonarroomandbridge
Installationofthecolourdisplay
Purpose
Thisprocedureexplainshowtoinstallthecolourdisplay.
Procedure
1Preparethelocationandthenecessarytools.
2Observetheinstallationrequirements.
aThedisplaymustbelocatedsothatitisbestprotectedfromglarewhich
reducesreadability.
381293/A
85
