Simrad SU90 Installation Manual

SimradSU90

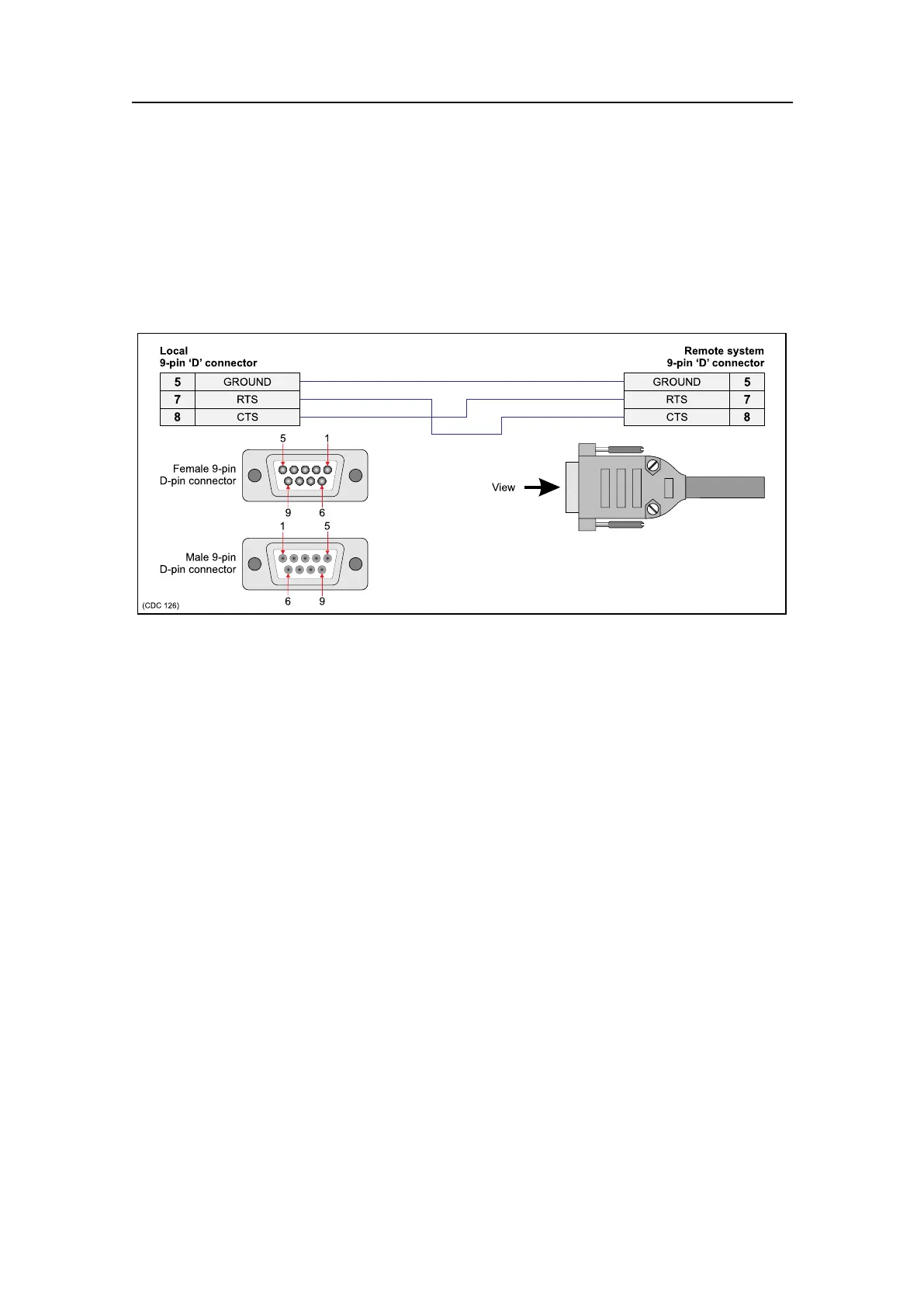

RS-232usedasexternaltriggerinputoroutput
ThiscablecomprisesanRS-232seriallineappliedasanexternaltrigger.It
providesinterfacewithanyperipheralunitthatrequiresorcontrolstransmit/receive
synchronization.Oneendofthecableconnectstothelocalunitwitha9-pinD-connector,
whiletheotherconnectstotheperipheralsystemasdescribedintheperipheralunit
documentation.
Local
9-pin ‘D’ connector
Remotesystem
9-pin ‘D’ connector
9 6
Female9-pin
D-pinconnector
1
5
Male9-pin
D-pinconnector
5
1
6 9
5
7
8
GROUND
CTS
5
7
8
RTSRTS
CTS
GROUND
View
(CDC126)
Cablespecications
•Conductors:3x0.5mm²
•Screen:Overallbraided
•Voltage:60V
•Maximumcablediameter:Limitedbytheplugs
290
381293/A
