Simrad SU90 Installation Manual

AppendixCSU90cabledetails

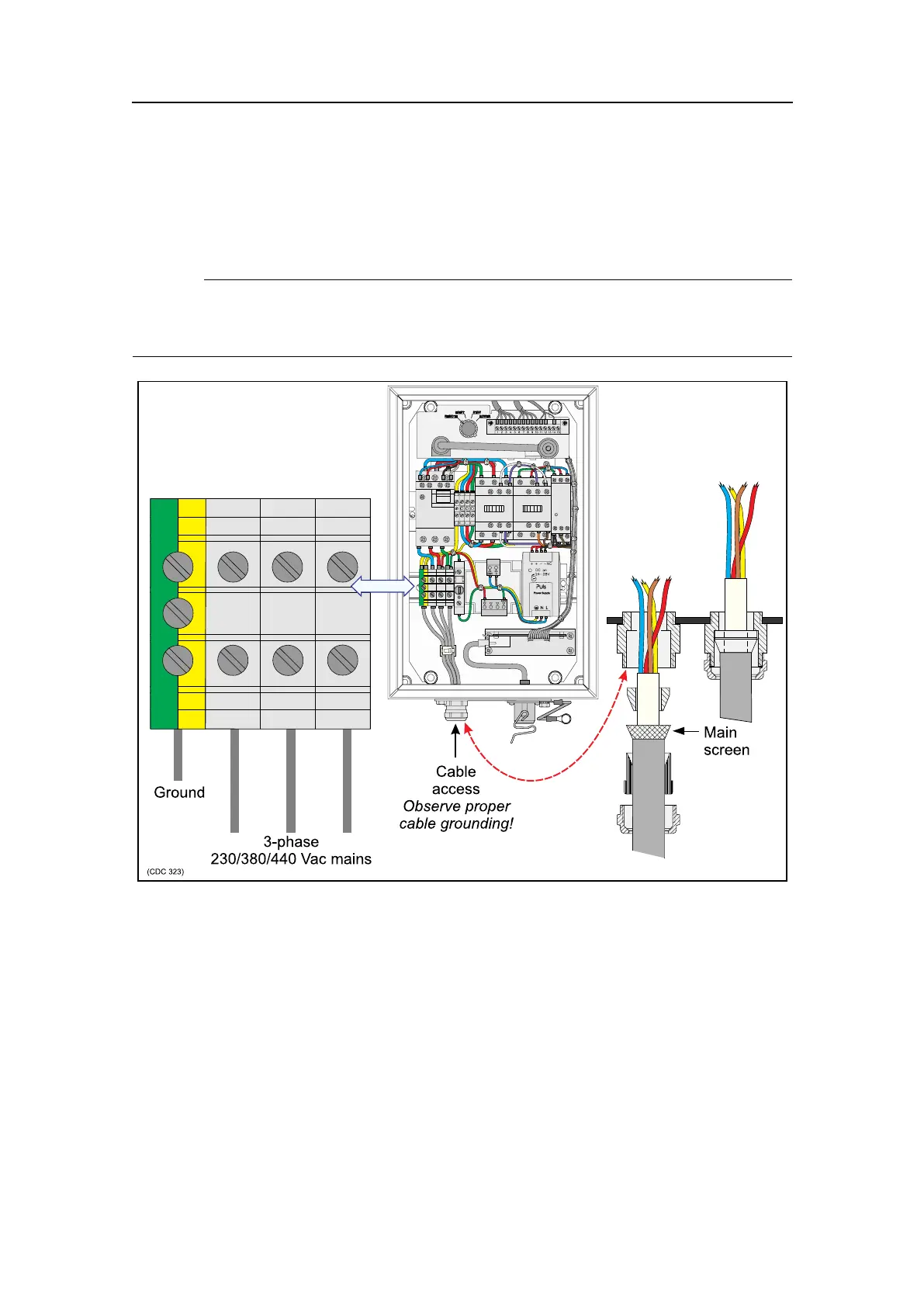

3–phaseACmainstoMotorControlUnit
Thiscableisusedtoconnect3-phasemainssupplyandship’sgroundtothehoisting
motoronthehullunit.TheconnectionsaremadetotheMotorControlUnit.
Caution
Observethedifferencebetween230Vacand380/440Vacwiringonthe
hoistingmotor!
Main
screen
Ground
Cable
access
Observeproper
cablegrounding!
3-phase
230/380/440V acmains
HOIST STOP
REMOTE LOWER
(CDC323)
Cablespecications
•Conductors:4x2.5mm²
•Screen:Overallbraided
•Voltage:750V
•Maximumdiameter:17mm
Relatedtopics
•Listofcablesonpage95
•ConnectingACmainstotheMotorControlUnitonpage112
381293/A
297
