Simrad SU90 Installation Manual

SimradSU90

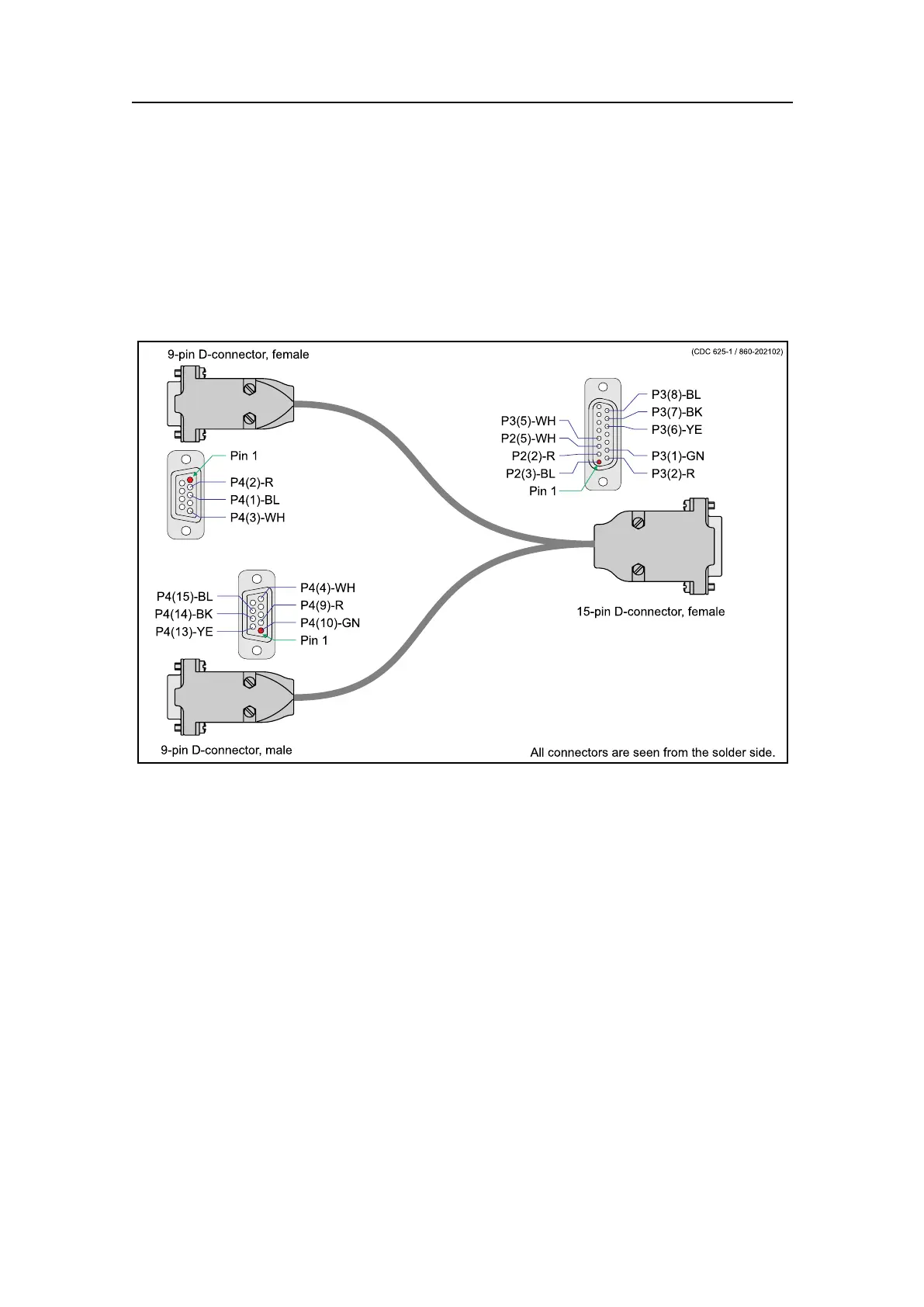

OperatingPanel“Dual”cable
ThiscableisusedtoconnecttheOperatingPaneltotheProcessorUnit.
•The15–pinplugconnectstotheOperatingPanel.
•The9–pinfemaleplugconnectstotheProcessorUnit.
•The9–pinmaleplugconnectstotheProcessorUnit.
(CDC625-1/860-202102)
P2(2)-R
P3(5)-WH
P3(2)-R
P2(5)-WH
P2(3)-BL
P3(1)-GN
P3(8)-BL
P3(7)-BK
P3(6)-YE
P4(1)-BL
P4(3)-WH
P4(2)-R
Pin1
Pin1
Pin1
P4(9)-R
P4(4)-WH
P4(10)-GN
P4(14)-BK
P4(15)-BL
P4(13)-YE
9-pinD-connector ,female
9-pinD-connector ,male
15-pinD-connector ,female
Allconnectorsareseenfromthesolderside.
Cablespecications
•Notapplicable.Thisisaspecialcablemanufacturedby.Areplacementcablecanbe
orderedonnumber380–202101
Relatedtopics
•Listofcablesonpage95
•ConnectingthedualinterfacecablefromtheOperatingPaneltotheProcessorUnit
onpage104
306
381293/A
