B D
A

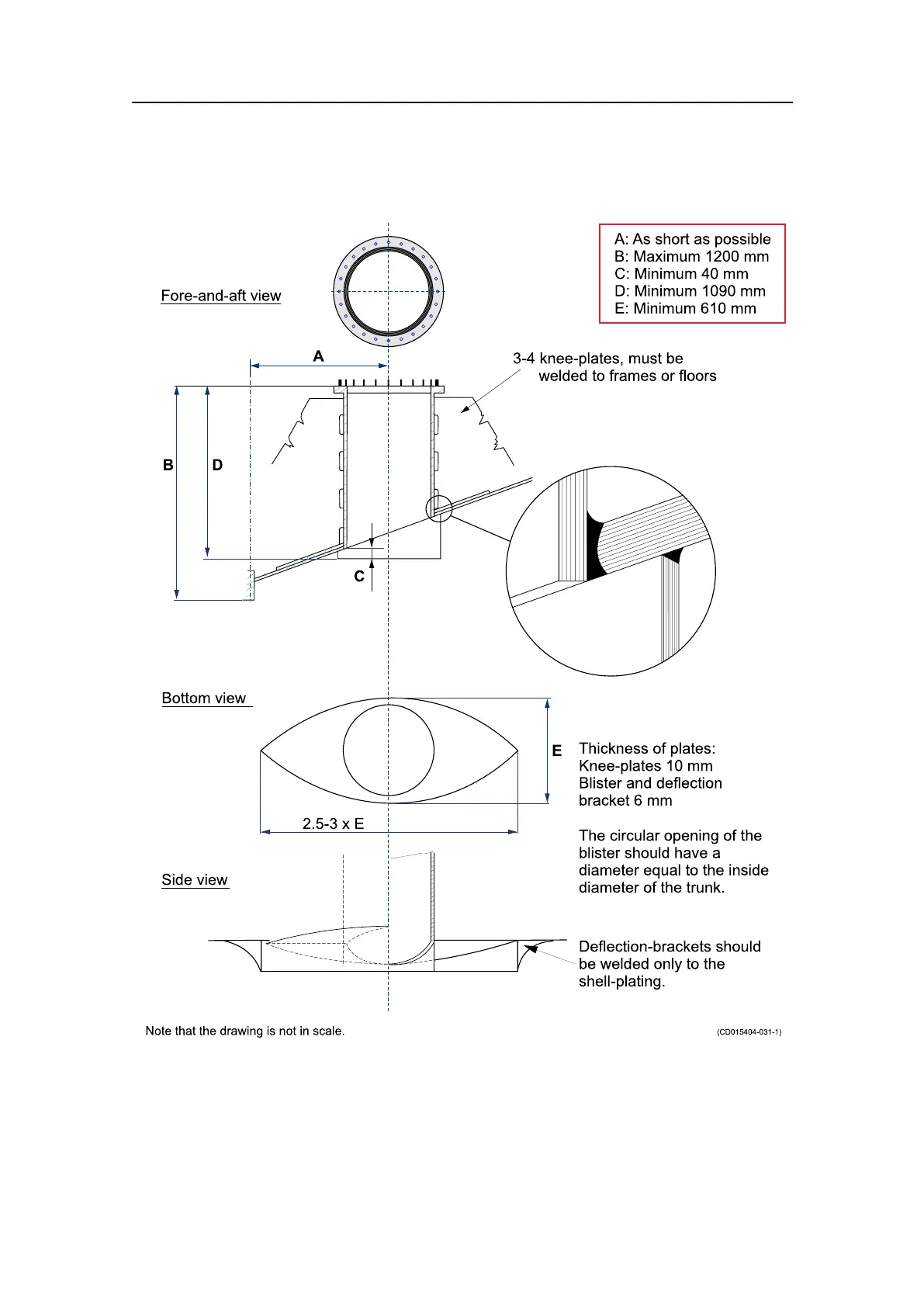

Fore-and-aftî˜ view
3-4î˜ knee-plates,î˜ mustî˜ be
weldedî˜ toî˜ framesî˜ orî˜ floors
A: Asî˜ shortî˜ asî˜ possible
B:î˜ Maximumî˜ 1200î˜ mm
C:î˜ Minimumî˜ 40î˜ mm
D:î˜ Minimumî˜ 1090î˜ mm
E:î˜ Minimumî˜ 610î˜ mm
C
2.5-3î˜ xî˜ E
Thicknessî˜ ofî˜ plates:
Knee-platesî˜ 10î˜ mm
Blisterî˜ andî˜ deflection
bracketî˜ 6î˜ mm
Theî˜ circularî˜ openingî˜ ofî˜ the
blisterî˜ shouldî˜ haveî˜ a
diameterî˜ equalî˜ toî˜ theî˜ inside
diameterî˜ ofî˜ theî˜ trunk.
Deflection-bracketsî˜ should
beî˜ weldedî˜ onlyî˜ toî˜ the
shell-plating.
Bottomî˜ view
Sideî˜ view
E
(CD015404-031-1)
Noteî˜ thatî˜ theî˜ drawingî˜ isî˜ notî˜ inî˜ scale.
