Simrad SU90 - SU92;SU93 Mounting Trunk Production Drawing

Drawingle

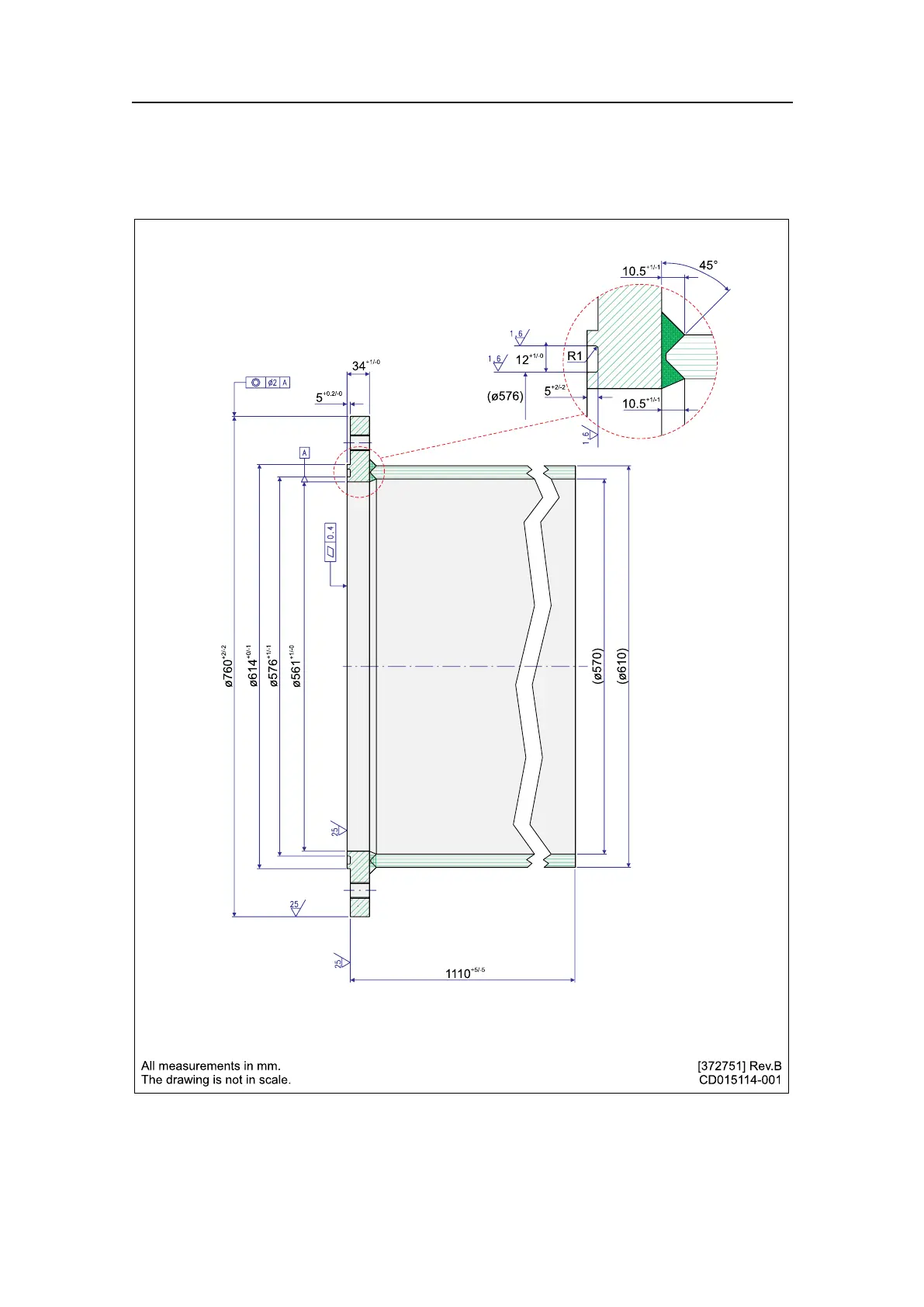

SU92/SU93Mountingtrunkproductiondrawing
34
+1/-0 12
+1/-0
R1
45°
5
+2/-2
10.5
+1/-1
10.5
+1/-1
(ø576)
ø614
+0/-1
ø576
+1/-1
ø561
+1/-0
ø760
+2/-2
(ø570)
(ø610)
5
+0.2/-0
1110
+5/-5
Allmeasurementsinmm.
Thedrawingisnotinscale.
[372751]Rev .B
CD0151 14-001
381293/A
267
