AppendixCSU90cabledetails
OperatingPanelpowersupply

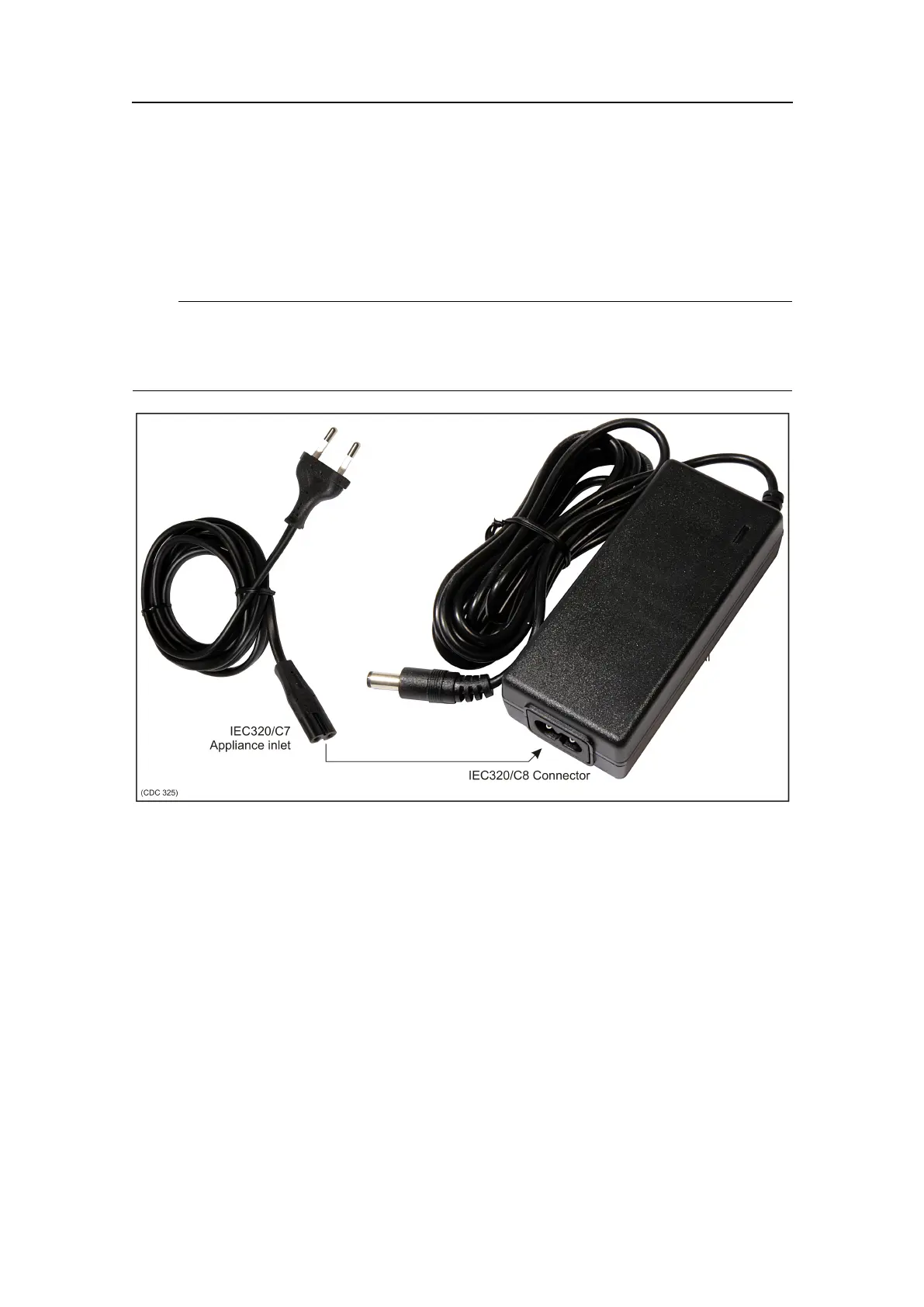

ThisisacommerciallowvoltageDCpowersupply.TheinputisastandardIEC320/C8
connector.Theoutputcableisfastenedtothepowersupply,andholdsastandardcircular
plug.Thepolarityisprintedonthesupply.
Note
Notethatthephotoshowsagenericpowersupply.
TheDCplugthatconnectstotheProcessorUnitrearpanelisaspecialtype.
Cablespeciîš¿cations
•Notapplicable.Thisisacommercialcable.
Relatedtopics
•Listofcablesonpage95
•ConnectingtheOperatingPanelPowerSupplytotheProcessorUnitonpage105
381293/A
299
