Preparations

Sonarroomarrangementexample

Thesedrawingsillustrateatypicalsonarroomwithamplespaceforthehullunit,the

TransceiverUnitandpersonnel.

Topics

•Sonarroomarrangementexample1–Topviewonpage45

•Sonarroomarrangementexample2–Sideviewonpage46

•Hullunitorientationexampleonpage47

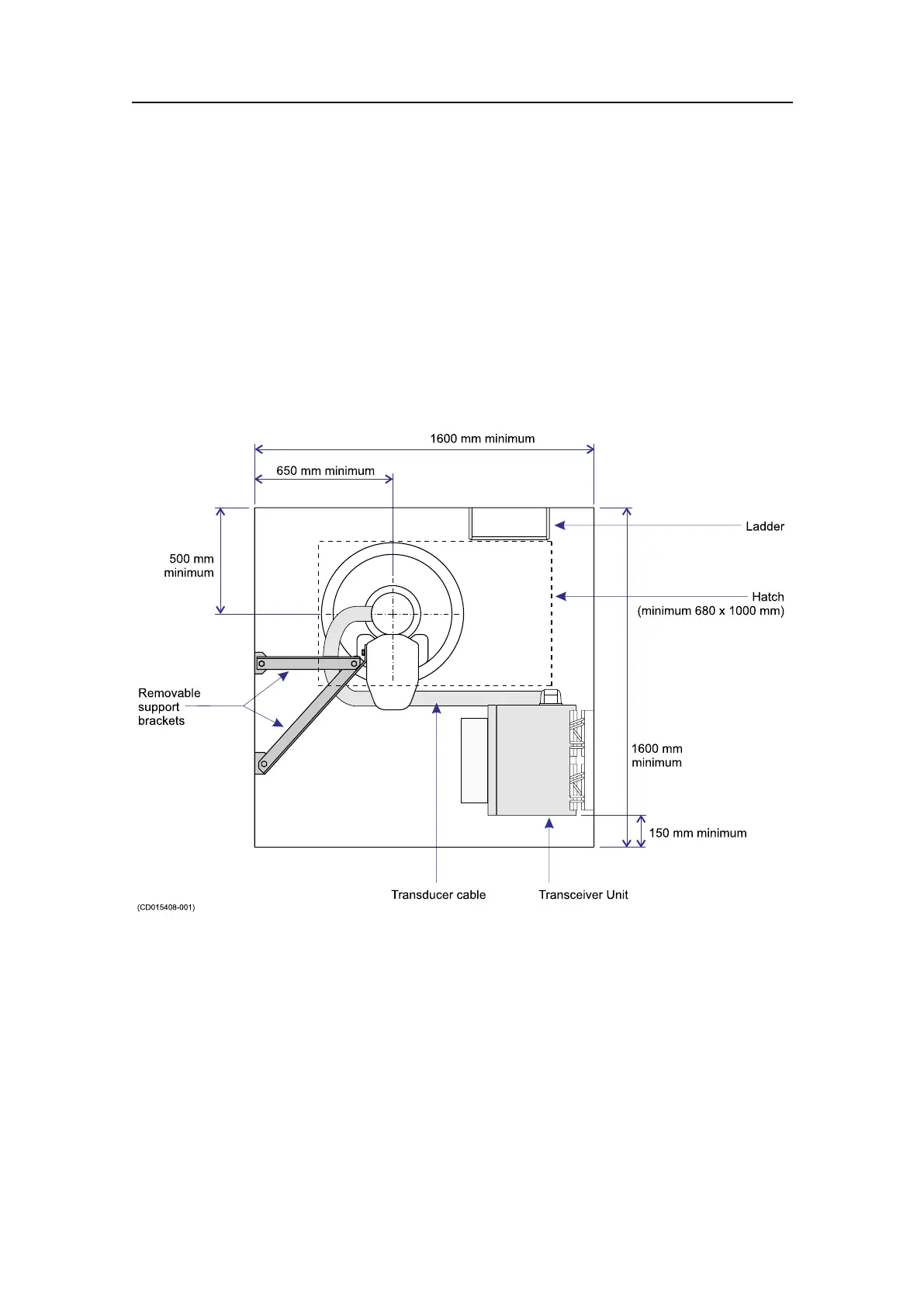

Sonarroomarrangementexample1–Topview

Removable

support

brackets

Transducercable

Hatch

(minimum680x1000mm)

TransceiverUnit

Ladder

500mm

minimum

1600mmminimum

1600mm

minimum

650mmminimum

150mmminimum

(CD015408-001)

381293/A
