Drawingîš¿le

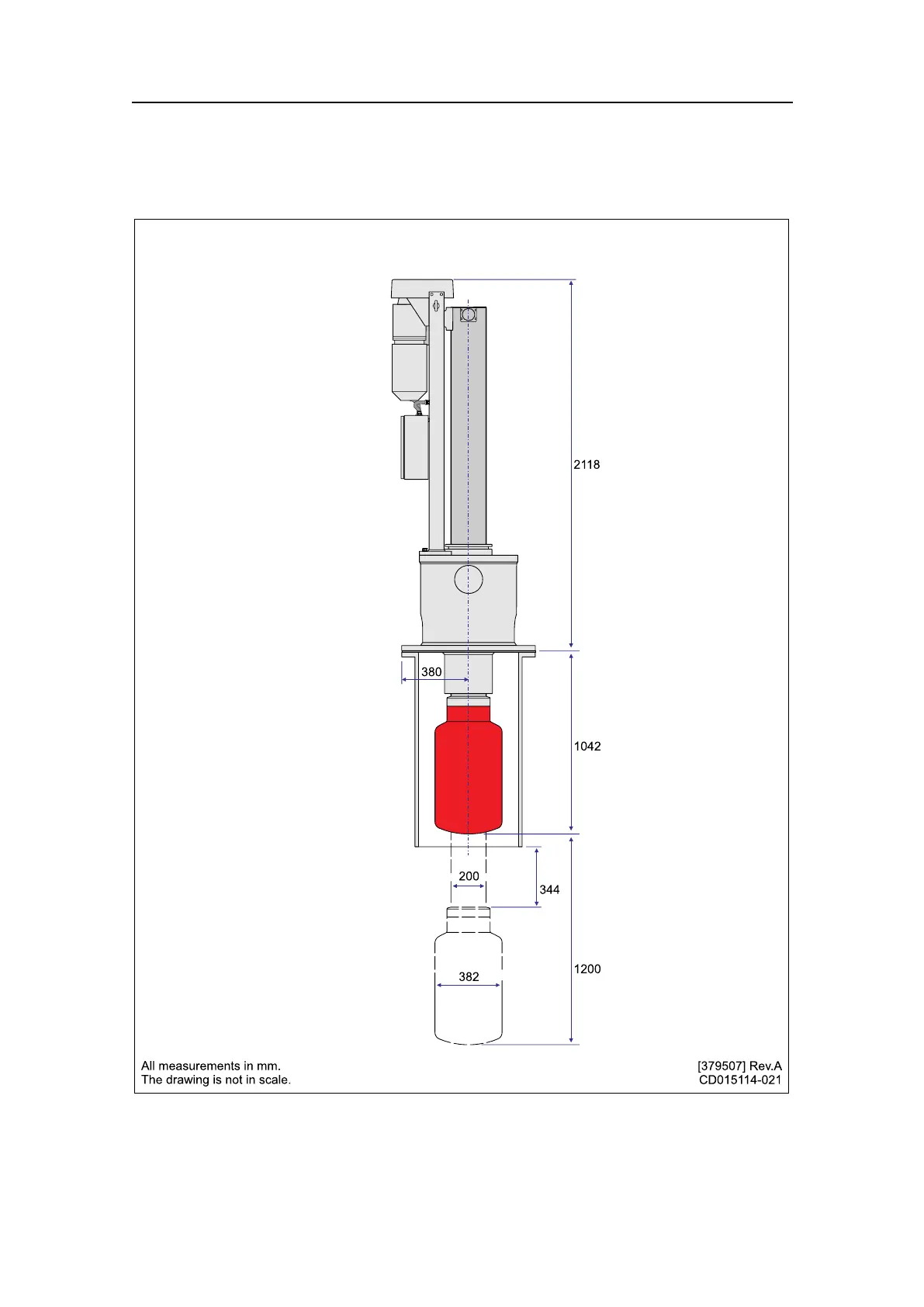

SU92Hullunitdimensionsdrawing
1200
1042
380
2118
200
382
344
Allmeasurementsinmm.
Thedrawingisnotinscale.
[379507]Rev .A
CD0151 14-021
381293/A
