Simrad SU90 Installation Manual

SimradSU90
ConnectingACmainstotheMotorControlUnit
Purpose
Thisisaspecialmainscablefor3-phaseACmains.Itmustbeprovidedbythe
installationshipyard.Observethecablespecications,see3–phaseACmainstoMotor
ControlUnitonpage297.
Cableidentiers
ThisiscableSU90/C18.

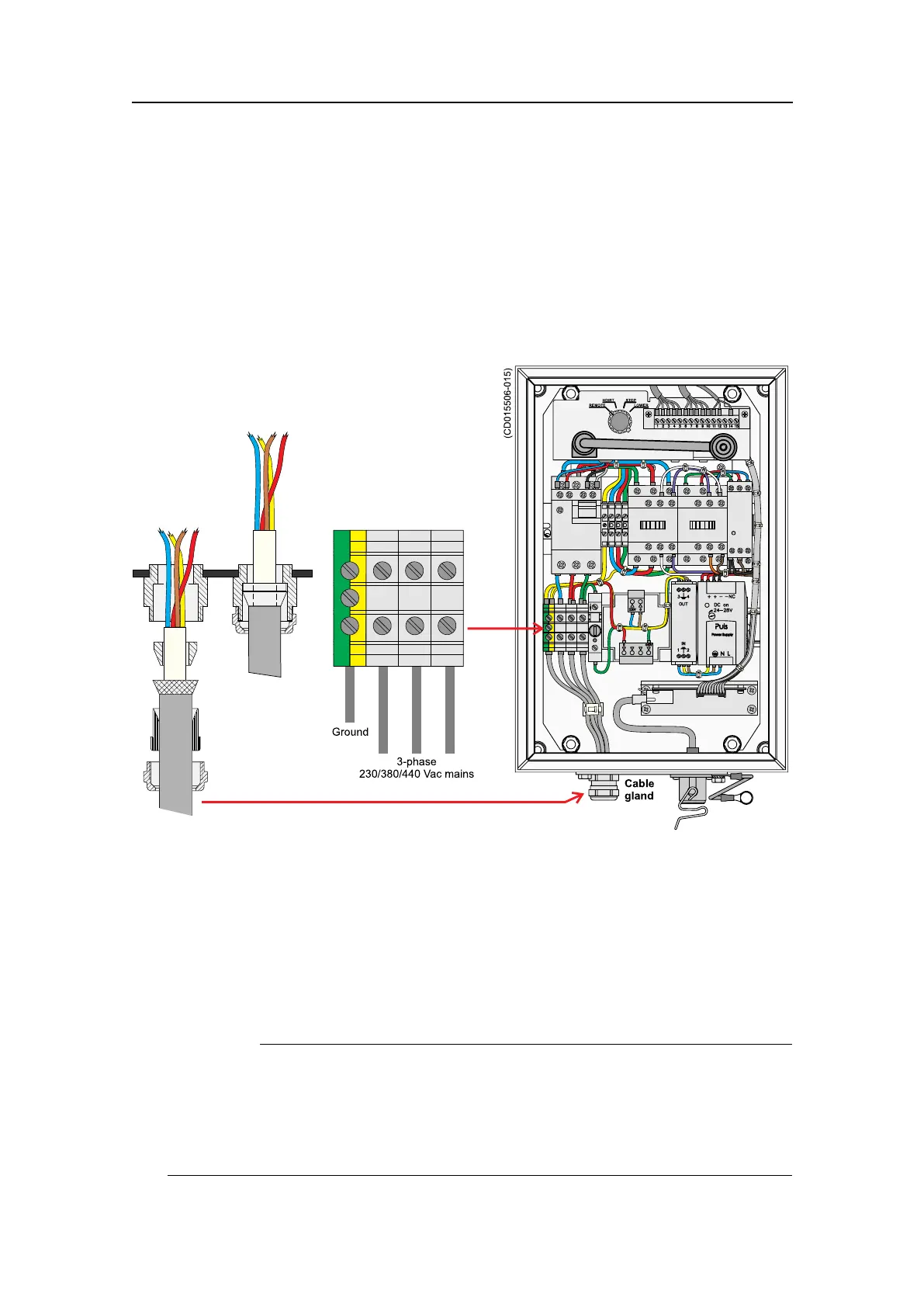

HOIST ST OP
REMOTE LOWER
Cable
gland
Ground
3-phase
230/380/440V acmains
(CD015506-015)
Relatedtopics
•Cableplanonpage93
•Listofcablesonpage95
•3–phaseACmainstoMotorControlUnitonpage297
Procedure
1Connectthe3–phaseACmainscablefromtheMotorControlUnittothevessel's
3-phaseACmains.
Important
Youmustuseminimum4x2.5mm²cable.Ensurethatthescreenisproperly
terminatedinthecablegland.
DONOTapply3–phasepowertotheMotorControlUnituntilspecically
instructedbytheapplicablestart-upprocedure.
112
381293/A
