Simrad SU90 - Installation of a Trunk with Oil Filled Blister

Installingthesonartrunk

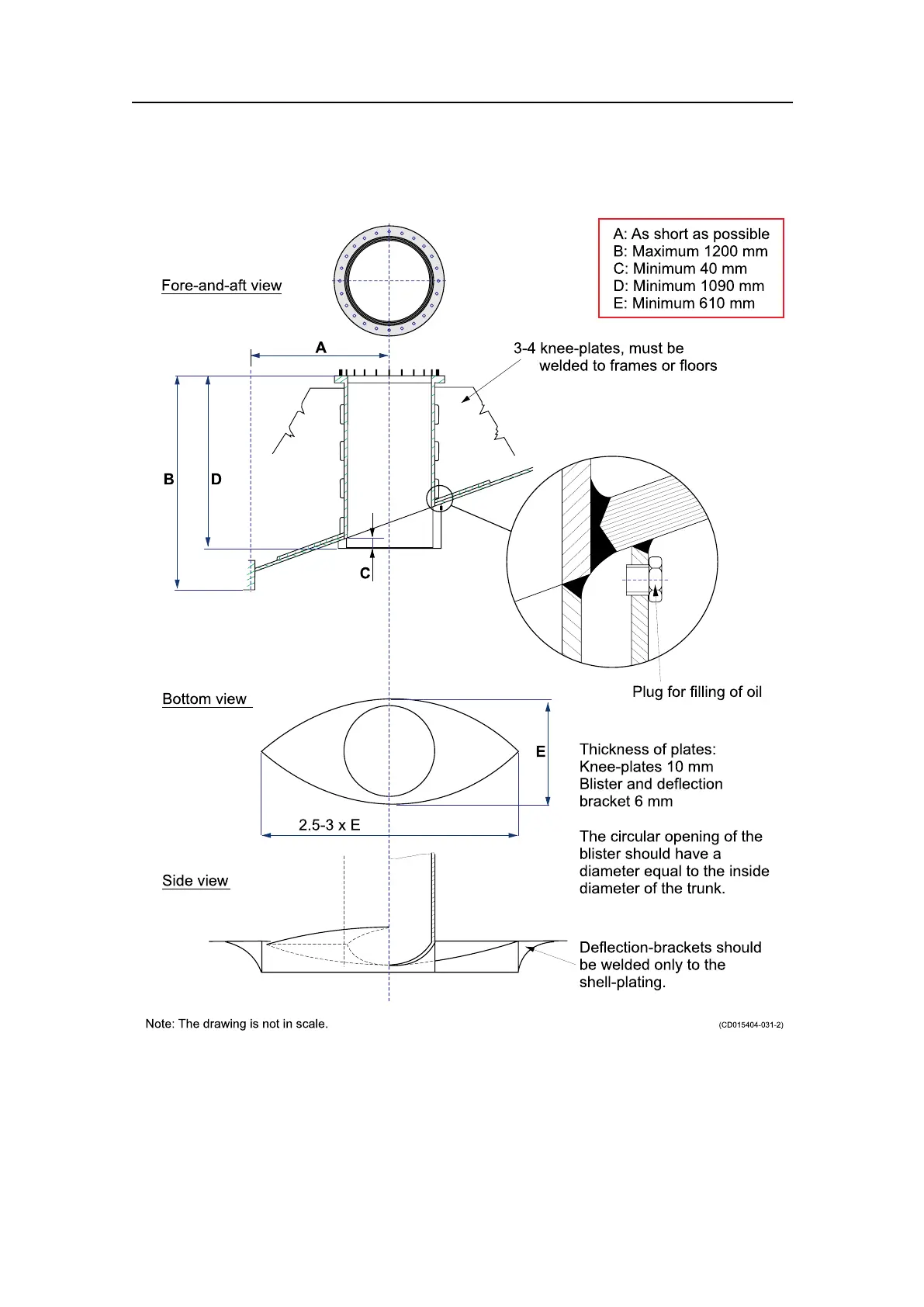

Installationofatrunkwithoillledblister
2.5-3xE
B D
A
Fore-and-aftview
Thicknessofplates:
Knee-plates10mm
Blisteranddeflection
bracket6mm
Thecircularopeningofthe
blistershouldhavea
diameterequaltotheinside
diameterofthetrunk.
Deflection-bracketsshould
beweldedonlytothe
shell-plating.
3-4knee-plates,mustbe
weldedtoframesorfloors
Plugforfillingofoil
Bottomview
Sideview
C
E
(CD015404-031-2)
Note: Thedrawingisnotinscale.
A: Asshortaspossible
B:Maximum1200mm
C:Minimum40mm
D:Minimum1090mm
E:Minimum610mm
381293/A
61
