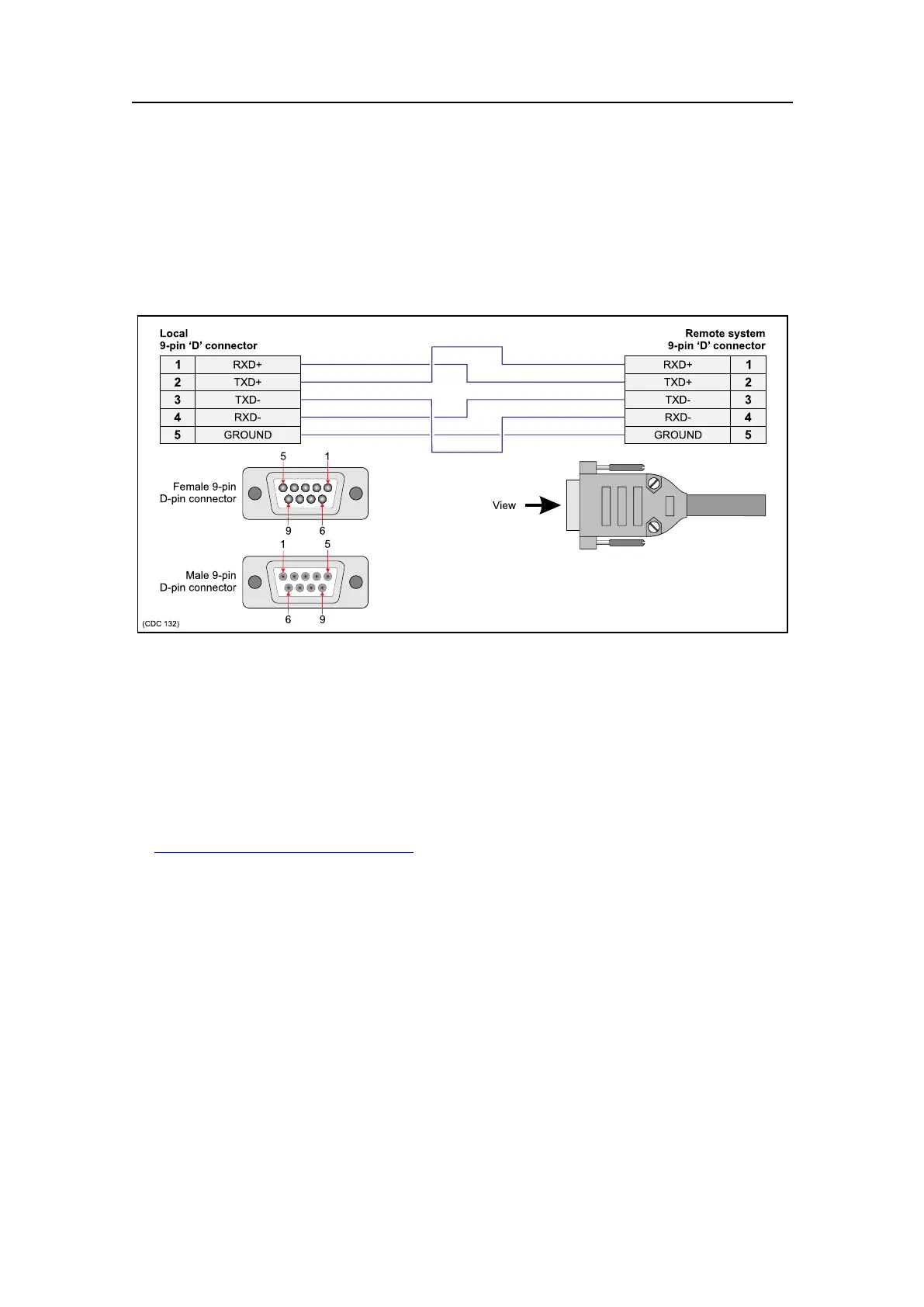

AppendixCSU90cabledetails
GenericRS-422Serialline(Fivewires)
ThiscableholdsamultipurposeRS-422balancedserialline.Itprovidesinterface
withanyperipheralunit.Oneendofthecableconnectstothelocalunit(DTE)witha
9-pinD-connector,whiletheotherconnectstotheperipheral(DCE)asdescribedinthe
peripheralunit’sdocumentation.
Local
9-pin ‘D’ connector
Remoteî˜ system
9-pin ‘D’ connector
9 6
Femaleî˜ 9-pin
D-pinî˜ connector
1
5
Maleî˜ 9-pin
D-pinî˜ connector
5
1
6 9
2
3
5
4 4
1 1
TXD+ TXD+
RXD+ RXD+
GROUND
2
3
5
TXD- TXD-
RXD- RXD-
GROUND
View
(CDCî˜ 132)
Cablespeciîš¿cations
•Conductors:5x2x0.5mm²
•Screen:Screenedtwistedpairsandoverallbraided
•Voltage:60V
•Maximumdiameter:Limitedbytheplugs
Relatedtopics
•http://en.wikipedia.org/wiki/Rs422
381293/A
291
