EM500 Open-Loop Vector Control Inverter User Manual
190
Note: Assuming that anti-shake filter times is the default value 2

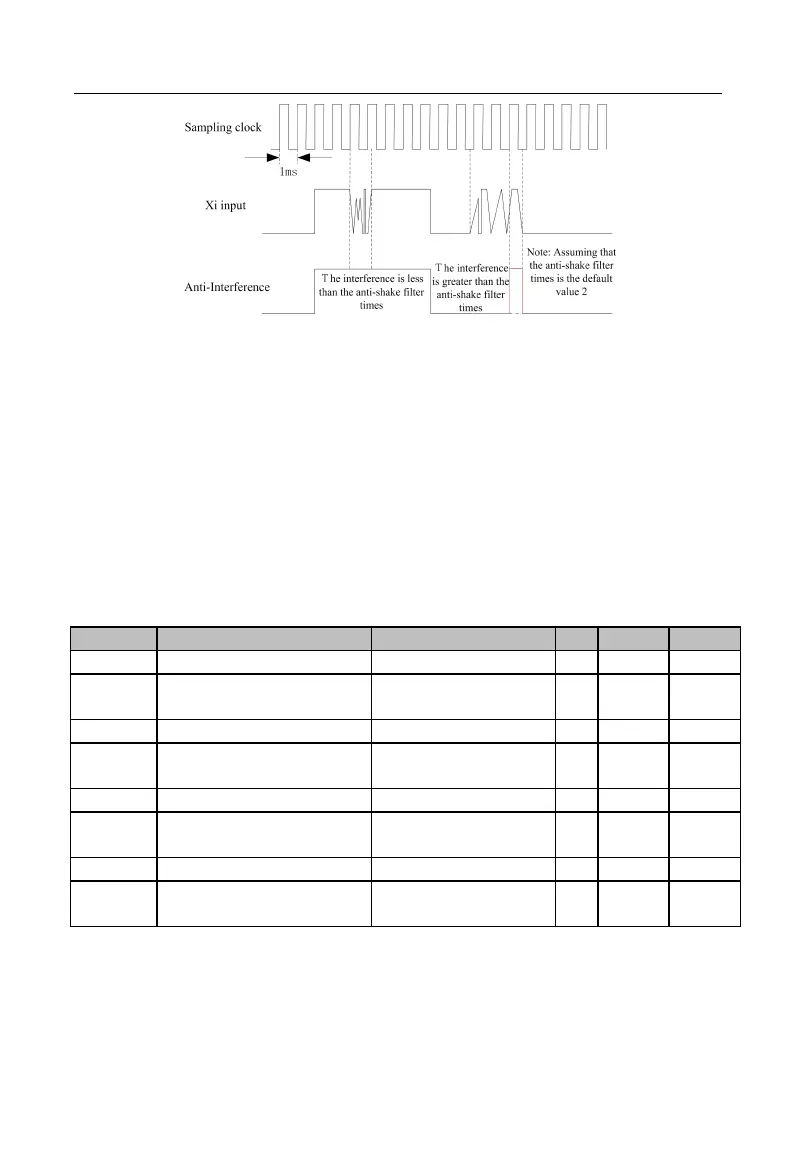

Figure 7-8 Terminal Filter Sampling
Because multi-function input terminals adopt level triggered mode or pulse triggered
mode, when inverter is reading terminal status, the multi-function input terminal signal
have to be processed by digital filtering in order to avoid interference.
★ This code does not need to be adjusted on general conditions. When an adjustment is
required, please note the relations between filter times and lasting time when terminal is
on. It is to avoid that inverter is easy to be interfered with due to insufficient filter times,
or slow response or command loss due to too many filter times.
No.
Function
Range
Unit
Default
Type
F02.18
X1 Effective Delay Time
0.000 - 30.000
s
0.000
●
F02.19
X1 Ineffective Delay
Time
0.000 - 30.000
s
0.000
●
F02.20
X2 Effective Delay Time
0.000 - 30.000
s
0.000
●
F02.21
X2 Ineffective Delay
Time
0.000 - 30.000
s
0.000
●
F02.22
X3 Effective Delay Time
0.000 - 30.000
s
0.000
●
F02.23
X3 Ineffective Delay
Time
0.000 - 30.000
s
0.000
●
F02.24
X4 Effective Delay Time
0.000 - 30.000
s
0.000
●
F02.25
X4 Ineffective Delay
Time
0.000 - 30.000
s
0.000
●
