VA Motion Controller Programming Manual
140
AND IN2
ST OUT
ST programming
language
OUT:=IN1&IN2
Note :
IL, ST
language programming needs to insert variables
IN1, IN2
and
OUT
or use
constants in the current
POU
variable worksheet
Data type processed by AND instruction
Input and output
Operand type
description
IN1
ANY_BIT
Data
1
IN 2
ANY_BIT
Data
2
OUT
ANY_BIT
Result :
IN1=0 , IN2=0, OUT=0;
IN1=0 , IN2=1, OUT=0;
IN1=1, IN2=0, OUT=0;
IN1=1, IN2=1, OUT=1;

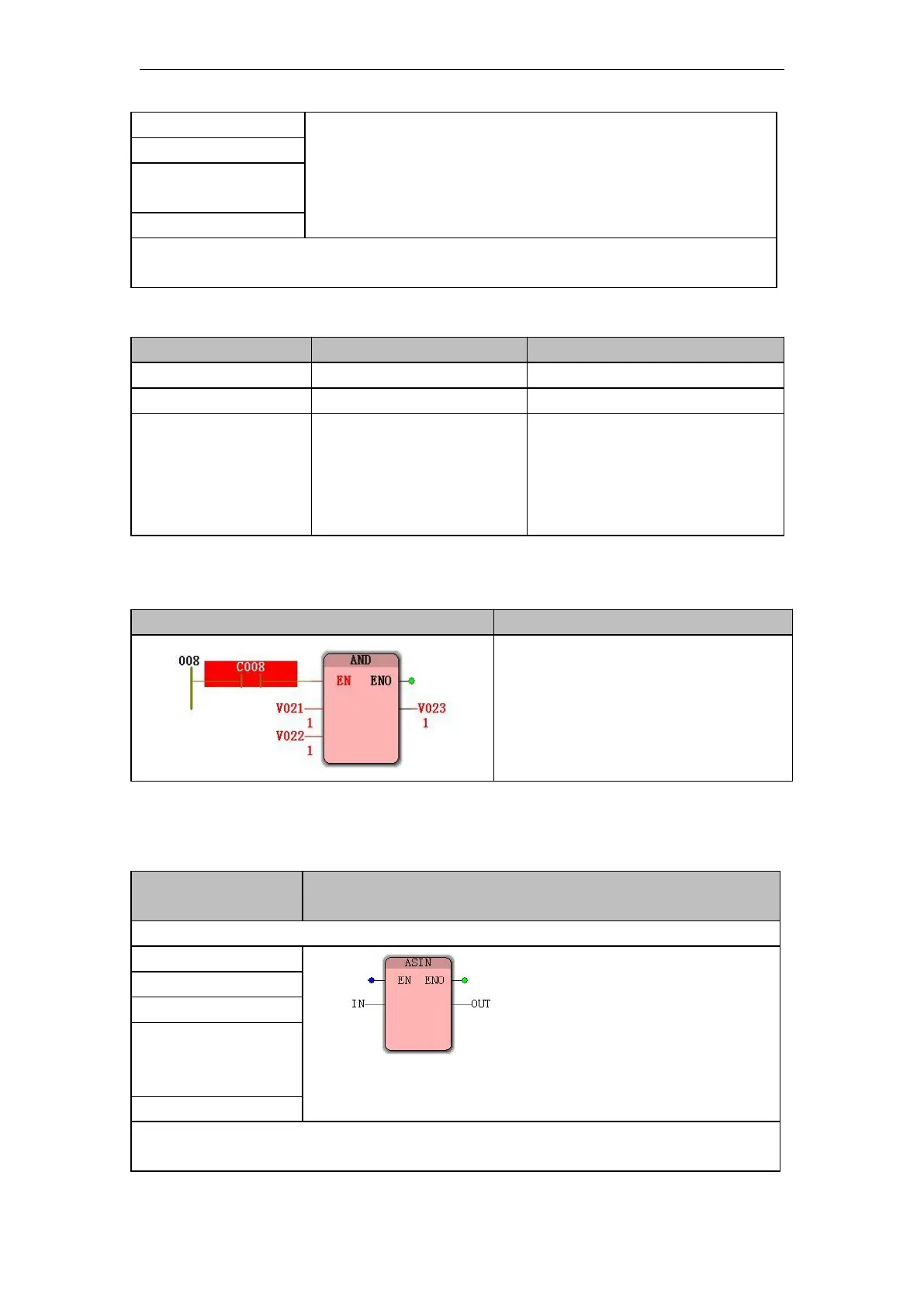

program demonstration
Find the result of the logical AND of two data
description
When the contact
C008
bit is
ON
,
the instruction is executed to phase the two
operands;
Execution result:
V021&V022=V023
10.1.6 ASIN ( anti-sinusoidal command)
IL programming
language
LD, FBD programming language
Function: ASIN instruction for seeking inverse sine
LD IN
ASIN
ST OUT
ST programming
language
OUT:=ASIN ( IN )
Note :
IL, ST
language programming needs to insert variables
IN
and
OUT
or use constants in
the current
POU
variable worksheet
