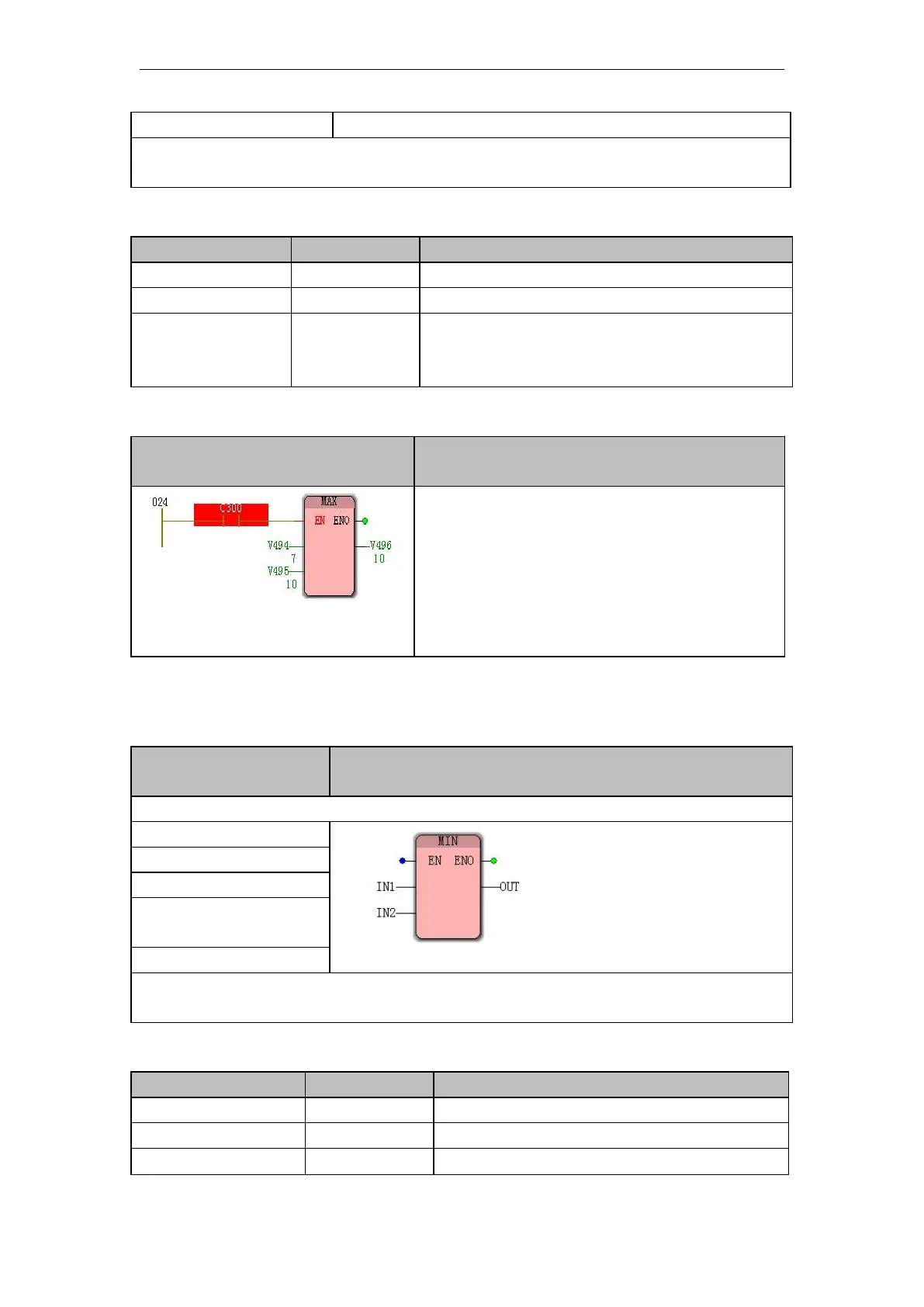

Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
155
OUT:=MAX
(
IN1
,
IN2
)
Note : IL, ST language programming needs to insert variables IN1, IN2 and OUT or use
constants in the current POU variable worksheet
Data type processed by MAX instruction
Input and output
type of data
description
IN1
ANY_NUM
First input
IN2
ANY_NUM
Second input
OUT
ANY
Result :
When IN1 <= IN2 , OU T is IN2;
When IN1 >= IN2 , OUT is IN1;
Funtion and Action examples
Integer
7
and
10
output
the largest value
description
When the contact is ON , the execution of
the instruction, comparing the
address V494 and V495 the value, the greater the
output there is an address V496 in:
Execution result : 10>7 output 10
10.1.24 MIN (minimum instruction )
IL programming
language
LD, FBD programming language
Function: The instruction is used to determine the minimum of two values.
LD IN1
MIN IN2
ST OUT
ST programming
language
OUT:=MIN
(
IN1
,
IN2
)
Note : IL, ST language programming needs to insert variables IN1, IN2 and OUT or use
constants in the current POU variable worksheet
The data type processed by the MIN instruction
Input and output
type of data
description
IN1
ANY_NUM
First input
IN2
ANY_NUM
Second input
OUT
ANY
Result :
