10.4.6 LIMIT_STRING (set string limit)
IL
programming language
LD, FBD
programming language
Function: The LIMIT_STRING instruction is used to limit the range of characters or strings
entered by the upper and lower limits.
LD IN1
LIMIT_ STRING IN, IN2
ST OUT
ST programming language
OUT:=LIMIT_ STRING ( IN1 , IN, IN2 )
Note
: IL, ST
language programming needs to insert variables
IN1, IN, IN2
and
OUT
or use
constants in the current
POU
variable worksheet
 LIMIT_STRING
instruction processing data types
Input and
output
type of
data
description
IN1 ( MN )
STRING
Lower limit of characters
IN
STRING
Enter a character or string
IN2
(
MX
)
STRING
Upper limit of characters
OUT
STRING
Output, the upper and lower limits of the input value will
be equal to the upper and lower limits respectively ; the size of
the characters will be judgeDAccording to the size of
the ASCII code value ; when the string is input, only the first
character participates in the comparison, that is, if When a
character is in the upper and lower limits, the string is all
output, otherwise only the upper or lower limit is output.

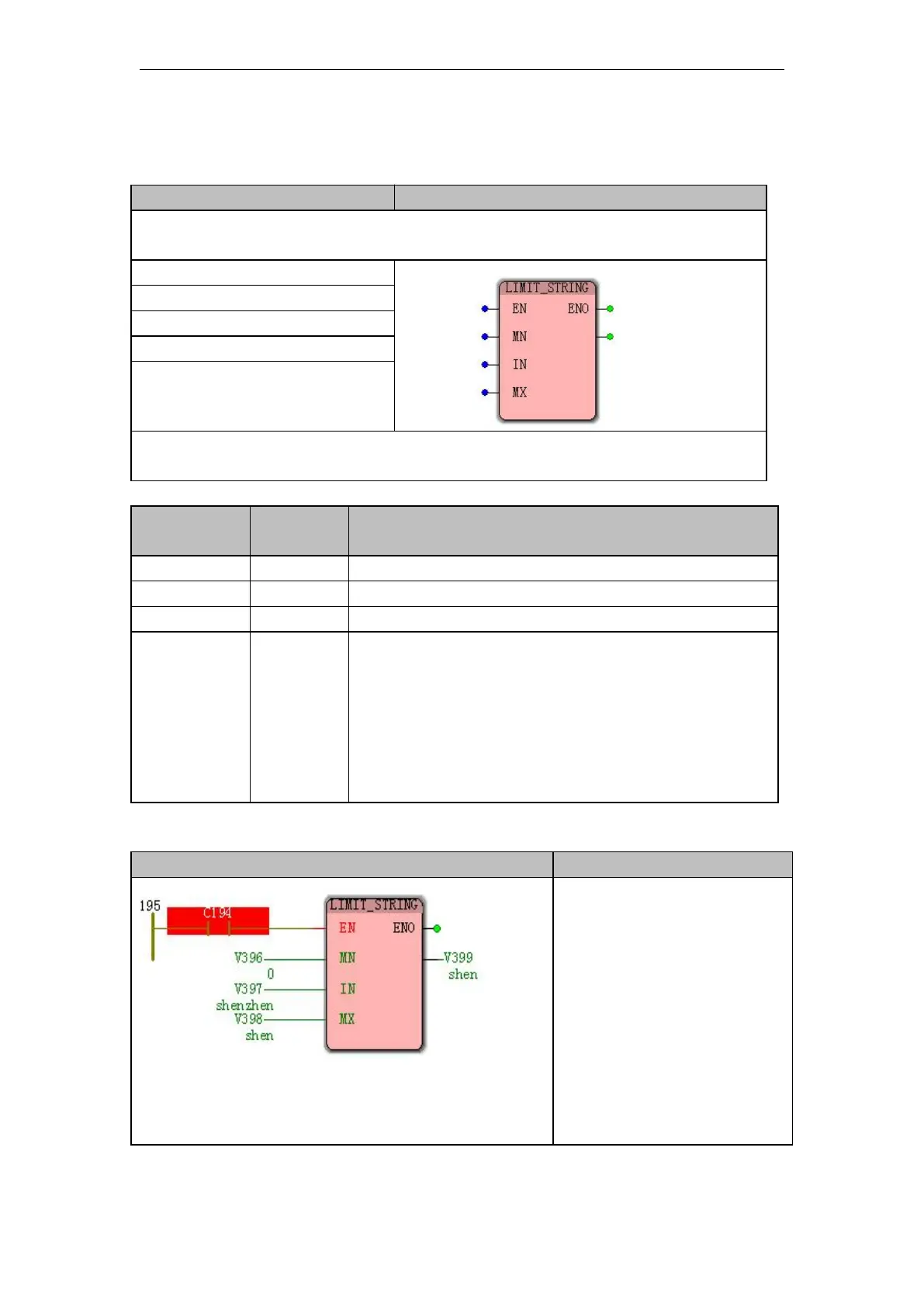

Funtion and Action examples
Qualified string output
description
When the
contact
C 194
is
O N
, executing
the instruction, when the
address
V 397
string length in the
address
V 396
,
V 398
is between
the output itself, whether those
output upper and lower limits.
Execution
result:
shenzhen-shen
