Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
167
Choose to output integer
3
or
5
description
When the contact C300 is ON when this
instruction is executed,
When G is . 1 when the output address
V533 in value; when G is 0 when the output
address V532 the value:
Execution result: output is 5

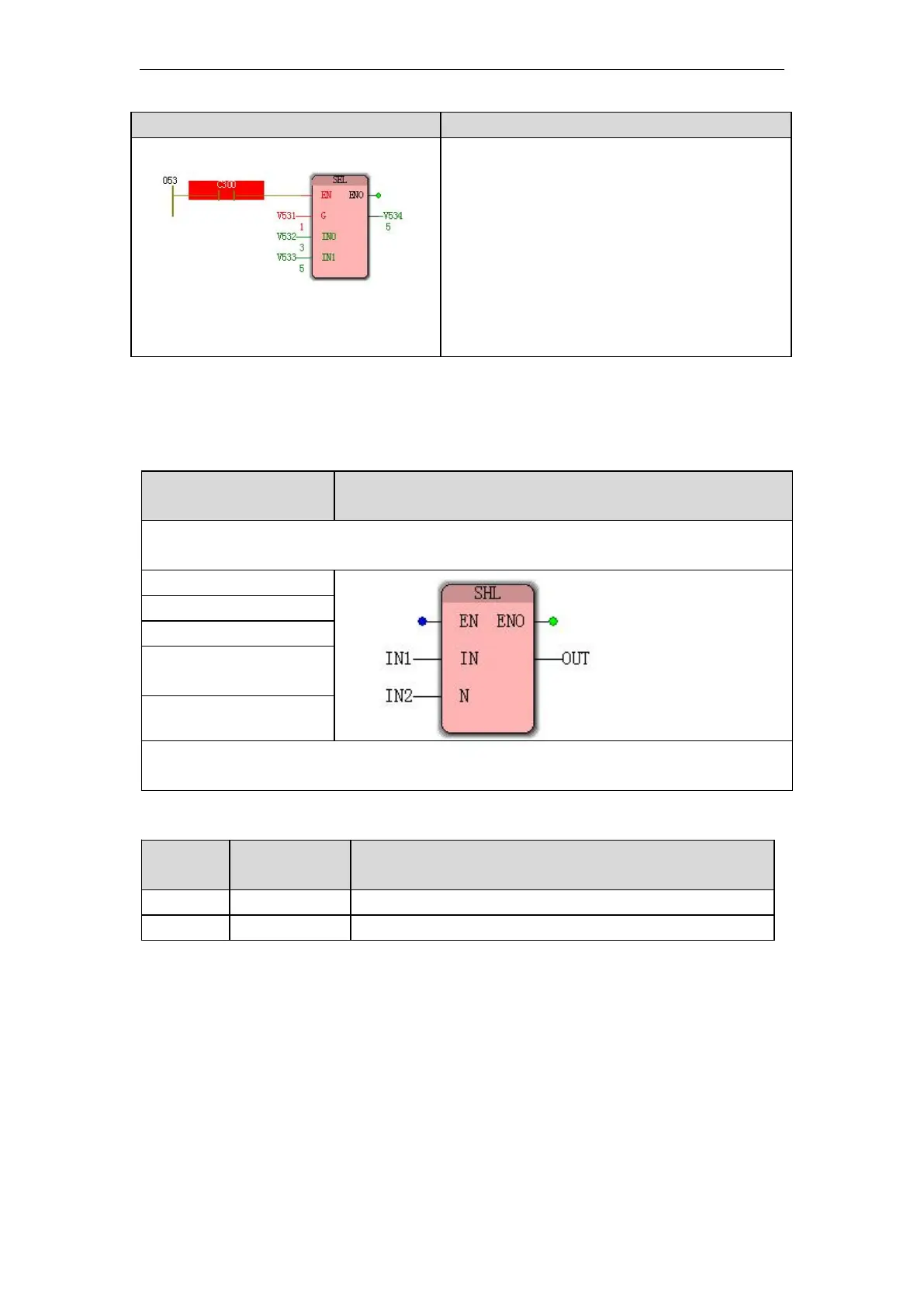

10.1.37 SHL (left shift instruction )
IL programming
language
LD, FBD programming language
Function: The SHL instruction is used to shift the input value to the left, the left end of the
data is shifted out, and the right end is filled with 0 .
LD IN1
SHL IN2
ST OUT
ST programming
language
OUT:=SHL ( IN1
,
IN2 )
Note : IL, ST language programming needs to insert variables IN1, IN2 and OUT or use
constants in the current POU variable worksheet
Data type processed by SHL instruction
Input and
output
type of data
description
IN1
(
IN
)
ANY_BIT
Input
IN2 ( N )
ANY_INT
Number of digits shifted to the left
