Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
504

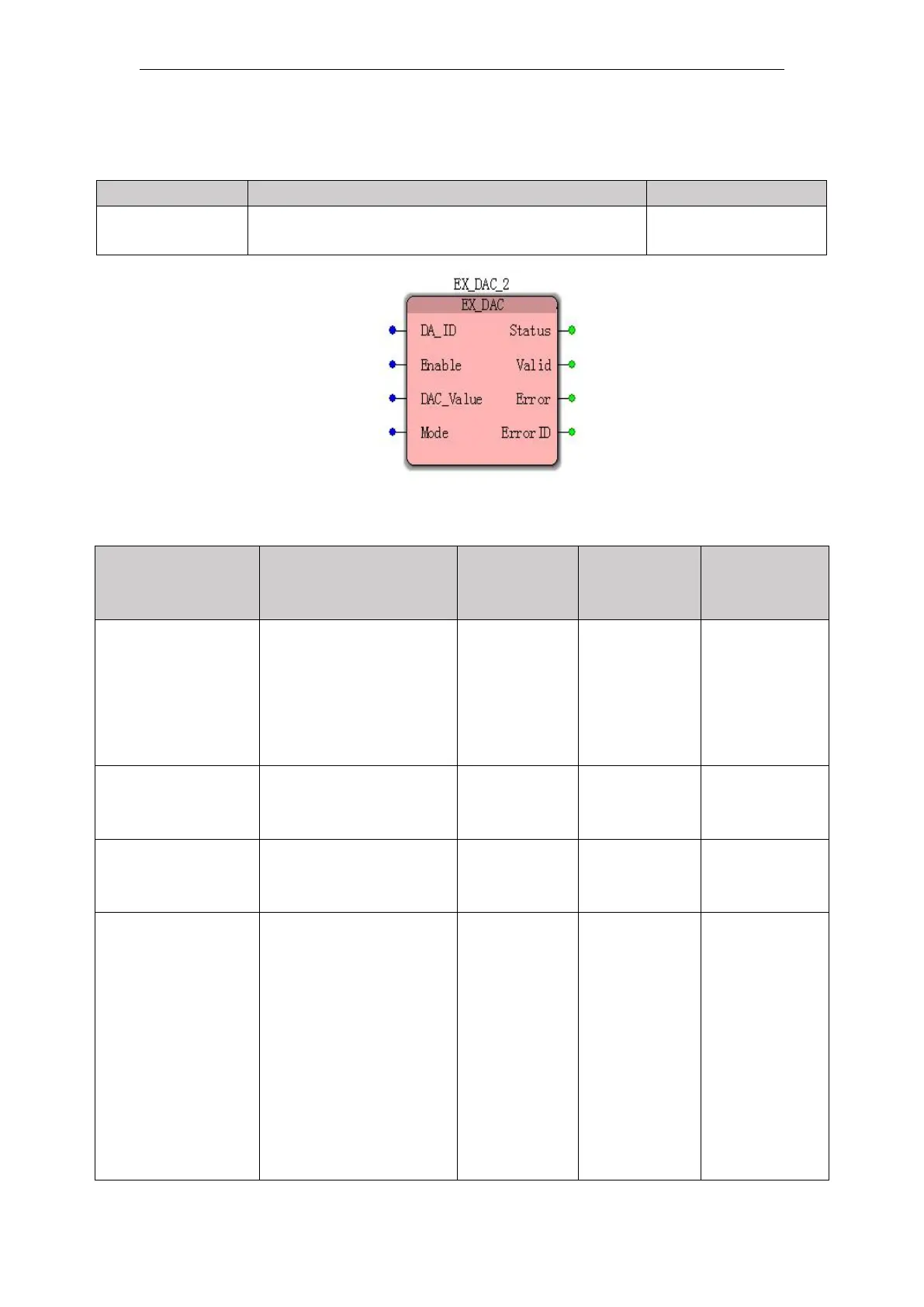

11.6.4 EX_DAC (DA expansion module)
FB / FC
Explanation
Applicable model
FB
The instructions for converting the data amount DA
expansion module into analog outputs
VEC-VA-MP-005-MA
 Input parameters
name
Features
type of data
Predeter
mined area
(Default value)
The timing
of the entry
into force
AD_ID
(Analog input
number)
Select the required
analog rpm. The amount of
opening AI4 ~ AI36.Value
of 4-7 corresponds to the
first extension module of
AD V0 ~ V4
WORD
4 to 36
(Non-default)
Enable is TRUE
Enable
(Execute bit)
When Enable is
TRUE, the instruction is
executed
BOOL
TRUE or
FALSE
DAC_Value
(The quantity of
data is provided)
Setting data value
DINT
0 to 4095
Enable is TRUE
Mode (Mode)
Under different modes
EX_DAC
0,0 to 4095
corresponding to the output
voltage --10V ~ + 10V
1,0 to 4095
corresponding to the output
voltage -0V ~ + 5V
2,0 to 4095
corresponding to the output
voltage -0V ~ + 10V
WORD
0-2
(Non-default)
